ALSTOM AS111模擬輸出模塊
1.產 品 資 料 介 紹:
中文資料:
ALSTOM AS111 模擬輸出模塊
一、基本信息
制造商:ALSTOM
模塊名稱:AS111
類型:模擬輸出模塊
系統平臺:Alspa CE2000 控制系統
二、技術參數
輸出通道數:8 路
輸出信號類型:0 到 20 毫安 或 4 到 20 毫安 電流輸出
供電電壓:24 伏(工作范圍 19.2 到 30 伏)
信號精度:工業標準精度等級,適用于精密過程控制
模塊隔離:模擬與數字回路之間具備隔離,增強系統抗干擾能力
反饋機制:內置回路自檢功能,可實現輸出監測與校準
尺寸規格:約 26.5 × 2.6 × 26.5 厘米
重量:約 0.53 千克
三、典型應用領域
電力系統
控制發電設備、調節勵磁系統、電壓控制等
過程工業
化工、石油、天然氣行業中流量、壓力、溫度的模擬信號輸出控制
水處理與環保
控制加藥泵、閥門開度、攪拌器等設備
自動化制造
精密設備如電機、伺服執行機構的模擬控制輸出
配套模塊
通常與 RA150 接線模塊或 IO 接線端子板配套使用,實現穩定的信號傳輸和設備驅動
四、特點總結
模塊結構緊湊,安裝方便
輸出信號穩定可靠,適合高要求的工業場景
在 ALSTOM 控制系統中長期使用,具有良好兼容性和可維護性
英文資料:
ALSTOM AS111 Analog Output Module
1、 Basic Information
Manufacturer: ALSTOM
Module Name: AS111
Type: Analog Output Module
System Platform: Alspa CE2000 Control System
2、 Technical parameters
Number of output channels: 8
Output signal type: 0 to 20mA or 4 to 20mA current output
Power supply voltage: 24 volts (operating range 19.2 to 30 volts)
Signal accuracy: Industrial standard accuracy level, suitable for precision process control
Module isolation: There is isolation between analog and digital circuits to enhance the system's anti-interference ability
Feedback mechanism: Built in loop self-test function, which can achieve output monitoring and calibration
Size specifications: approximately 26.5 × 2.6 × 26.5 centimeters
Weight: Approximately 0.53 kilograms
3、 Typical application areas
Power System
Control power generation equipment, regulate excitation system, voltage control, etc
process industry
Analog signal output control of flow, pressure, and temperature in the chemical, petroleum, and natural gas industries
Water Treatment and Environmental Protection
Control the dosing pump, valve opening, mixer and other equipment
Automated Manufacturing
Simulation control output of precision equipment such as motors and servo actuators
Supporting modules
Usually used in conjunction with RA150 wiring modules or IO wiring terminal boards to achieve stable signal transmission and device driving
4、 Summary of Characteristics
Compact module structure, easy to install
Stable and reliable output signal, suitable for high demand industrial scenarios
Long term use in ALSTOM control system, with good compatibility and maintainability

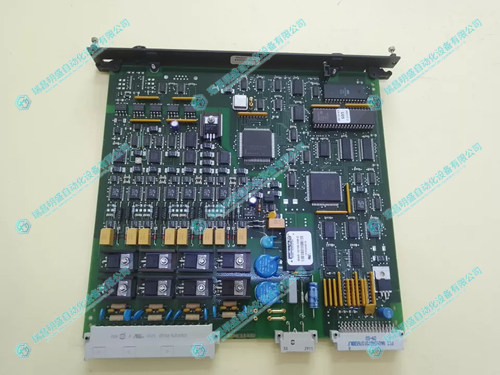

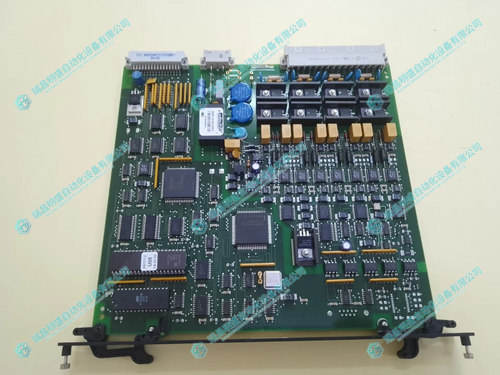

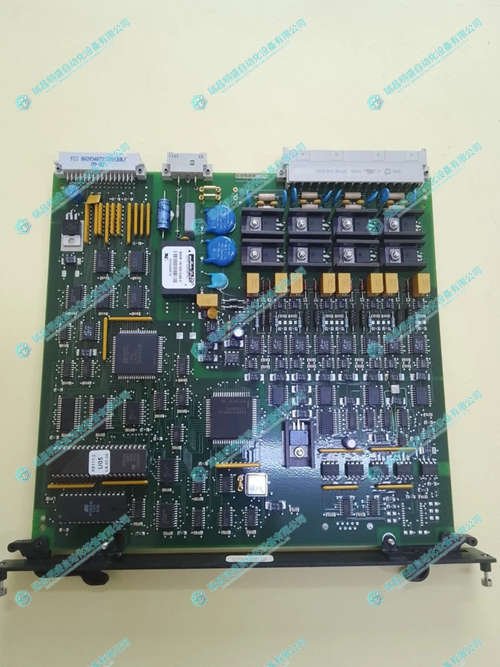

2.產 品 展 示
