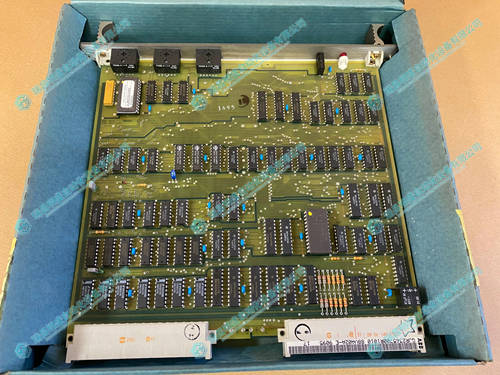

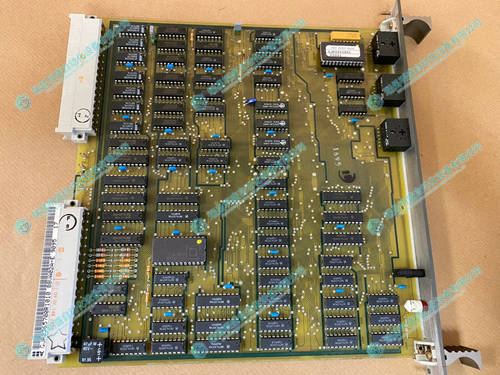

ABB GJR2365700R1010 88VA02B-E控制板總成

1.產 品 資 料 介 紹：

中文資料：

ABB GJR2365700R1010，型號為 88VA02B-E，是一款工業級控制板總成，主要用于 ABB Symphony Harmony 系列分布式控制系統（DCS）中，承擔數字信號輸入的采集與隔離處理功能，是系統與現場設備之間的重要接口模塊之一。

一、產品基本信息

• 產品編號：GJR2365700R1010

• 型號：88VA02B-E

• 產品類型：數字輸入控制板總成（DI Control Assembly）

• 通道數量：32 路數字輸入

• 工作電壓：24V DC 信號輸入

• 信號接收：適用于干接點或有源24V輸入設備

• 公共信號返回：共用一組接地回路

• 電氣隔離：每通道與邏輯電路隔離，提升抗干擾性能

• 通信兼容性：適配 ABB MasterBus 300 通訊架構

• 模塊形式：板卡總成，含主板與接口連接單元

二、功能特點

• 將現場的接點開關信號傳輸?shù)娇刂葡到y(tǒng)中

• 每通道具備狀態檢測與保護電路

• 可與 SC510 或 SC520 底板搭配使用

• 提供LED狀態指示，便于現場維護

• 適合在高溫、電磁干擾環境中長期運行

三、典型應用領域

• 電力系統：用于采集斷路器、隔離開關、接地刀等狀態信號

• 石化與化工：對生產過程中的限位開關、安全信號等進行檢測

• 軌道交通：用于采集道岔、信號機狀態

• 鋼鐵與冶金：在連鑄、軋鋼等過程線監控限位與安全信號

• 水處理與環保行業：實時采集水泵啟停、水位報警等信號

英文資料：

ABB GJR2365700R1010， The model number is 88VA02B-E, which is an industrial grade control board assembly mainly used in ABB Symphony Harmony series distributed control systems (DCS). It is responsible for the acquisition and isolation processing of digital signal inputs and is one of the important interface modules between the system and field devices.

1、 Basic Product Information

Product Code: GJR2365700R1010

Model: 88VA02B-E

Product Type: Digital Input Control Board Assembly (DI Control Assembly)

Number of channels: 32 digital inputs

Working voltage: 24V DC signal input

Signal reception: suitable for dry contacts or active 24V input devices

Public signal return: share a set of grounding circuits

Electrical isolation: Each channel is isolated from the logic circuit to enhance anti-interference performance

Communication compatibility: compatible with ABB MasterBus 300 communication architecture

Module form: Board assembly, including motherboard and interface connection unit

2、 Functional Features

Transmit the on-site contact switch signal to the control system

Each channel is equipped with status detection and protection circuits

Can be used in conjunction with SC510 or SC520 baseboard

Provide LED status indication for easy on-site maintenance

Suitable for long-term operation in high temperature and electromagnetic interference environments

3、 Typical application areas

Power system: used to collect status signals of circuit breakers, isolating switches, grounding knives, etc

Petrochemical and chemical industry: detecting limit switches, safety signals, etc. in the production process

Rail transit: used to collect the status of turnouts and signals

Steel and Metallurgy: Monitoring Limits and Safety Signals in Processes such as Continuous Casting and Rolling Steel

Water treatment and environmental protection industry: real-time collection of signals such as pump start stop and water level alarm
