Control Techniques UNI3402變頻器

1.產 品 資 料 介 紹：

產品概述

Control Techniques UNI3402 是 Unidrive 系列 的一款高性能交流變頻器，專為工業自動化中的精密控制應用設計。它提供多種控制模式，適用于各種負載類型和工況，廣泛應用于機械傳動、泵風機、輸送系統等領域。

技術參數

• 型號：UNI3402

• 系列：Unidrive

• 額定功率：18.5 kW（30 HP）

• 輸入電壓：三相 380–480 V AC，50/60 Hz

• 輸出電流：40 A（典型值）

• 控制模式：

  • 開環 V/f 控制

  • 開環矢量控制

  • 閉環矢量控制

  • 伺服控制

  • 再生制動（Regenerative）

• 工作溫度范圍：

  • 操作溫度：0–50°C

  • 啟動溫度：–10°C

• 濕度范圍：最高 95% RH（無凝結）

• 存儲溫度范圍：–40–50°C

• 尺寸等級：3 號機型

• 重量：約 22 kg

應用場景

1. 機械傳動系統：如機床、輸送帶、卷?yè)P(yáng)機等

2. 泵風機控制：如水泵、風機、空調系統等

3. 自動化生產線：如包裝、裝配、物料搬運等

4. 精密控制系統：如實驗設備、測試系統等

Control Techniques  UNI3402變頻器 英文資料：

Product Overview

Control Techniques UNI3402 is a high-performance AC frequency converter from the Unidrive series, designed specifically for precision control applications in industrial automation. It provides multiple control modes, suitable for various load types and working conditions, and is widely used in fields such as mechanical transmission, pump fans, conveying systems, etc.

Technical Specifications

Model: UNI3402

Series: Unidrive

Rated power: 18.5 kW (30 HP)

Input voltage: three-phase 380-480 V AC, 50/60 Hz

Output current: 40 A (typical value)

Control mode:

Open-loop V/f control

Open loop vector control

Closed-loop vector control

servo control

Regenerative braking

Working temperature range:

Operating temperature: 0-50 ° C

Starting temperature: -10 ° C

Humidity range: up to 95% RH (non condensing)

Storage temperature range: -40-50 ° C

Size grade: Model 3

Weight: Approximately 22 kg

Application scenarios

Mechanical transmission system: such as machine tools, conveyor belts, winches, etc

Pump fan control: such as water pumps, fans, air conditioning systems, etc

Automated production line: such as packaging, assembly, material handling, etc

Precision control system: such as experimental equipment, testing systems, etc

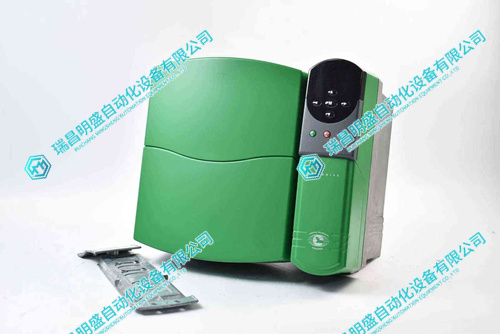

Control Techniques UNI3402變頻器 產品展示

 產品視頻
