TOYOTA TP-8901-0繼電器電路板
1.產 品 資 料 介 紹：
- 繼電器類型：采用工業級電磁繼電器，性能穩定，滿足工業控制需求。
- 控制電壓：DC 12V / 24V（視設計而定），可適配不同的控制電路。
- 觸點容量：AC 250V / 5A 或 DC 30V / 5A（依據型號），能驅動多種高功率負載。
- 輸入信號：接收來自 PLC、控制板或傳感器的觸發信號，實現靈活控制。
- 隔離方式：采用光耦隔離或電磁隔離，有效避免干擾，保障電路安全。
- 板材：選用工業級多層 PCB，且為阻燃材質，提升電路板的安全性和耐用性。
- 工作環境：可在 - 10℃～+55℃溫度范圍內工作，具備抗干擾、防震動設計，適應復雜工業場景。
英文資料：
The TOYOTA TP-8901-0 relay circuit board is an important electrical control module for industrial automation equipment, with the core function of isolating and controlling high-power loads through relays. It is often installed in the automation units of Toyota production lines, responsible for switch control, signal switching, equipment start stop and other operations, and has high reliability and durability, which can stably adapt to industrial production environments.
1、 Technical parameters (example, subject to actual version)
Relay type: Industrial grade electromagnetic relay is used, with stable performance to meet industrial control requirements.
Control voltage: DC 12V/24V (depending on the design), adaptable to different control circuits.
Contact capacity: AC 250V/5A or DC 30V/5A (depending on the model), capable of driving various high-power loads.
Input signal: Receive trigger signals from PLC, control board or sensors to achieve flexible control.
Isolation method: using optocoupler isolation or electromagnetic isolation to effectively avoid interference and ensure circuit safety.
Board: Industrial grade multi-layer PCB is selected, and it is made of flame-retardant material to enhance the safety and durability of the circuit board.
Working environment: capable of working within a temperature range of -10 ℃ to+55 ℃, with anti-interference and anti vibration design, suitable for complex industrial scenarios.
2、 Application scenarios
（1） Production line equipment control
Capable of controlling the start and stop of actuators such as motors, pumps, valves, etc., while achieving sequential switching and interlocking control of multiple workstations, ensuring orderly operation of various links in the production line.
（2） Signal switching and allocation
Signal switching can be performed between different control systems, and weak current control signals can be converted into electrical signals that can drive loads, achieving effective signal transmission and conversion.
（3） Security and Protection System
As a control execution unit for overload, overheating, or fault protection, it can achieve automatic power-off or alarm functions in conjunction with sensors, providing guarantees for equipment and production safety.
（4） Industrial Robot Control
Used to achieve power control and mode switching of end effectors, and can cooperate with positioning and motion control systems to complete automated operations, improving the stability and accuracy of robot work.
In summary, the TOYOTA TP-8901-0 relay circuit board plays a crucial role in industrial automation control with its reliable performance and diverse functions, providing strong support for the stable operation of various equipment.

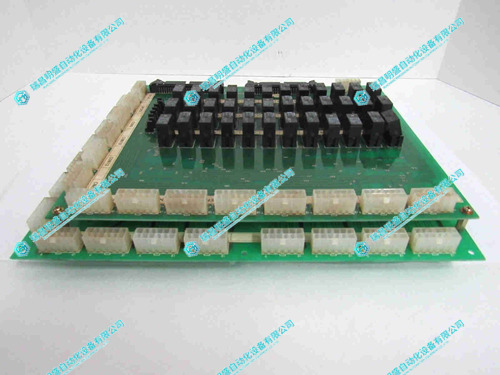

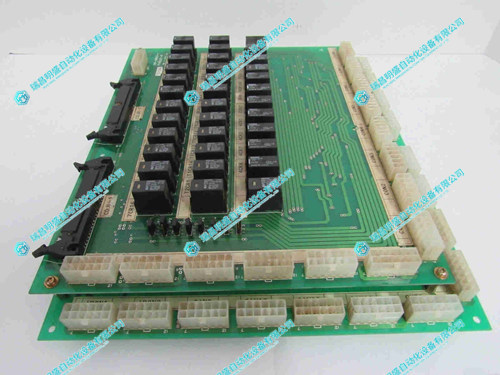

2.產 品 展 示
