AMAT Applied Materials 0100-91085導管PCB
1.產 品 資 料 介 紹：
核心規(guī)格與參數
功能與優(yōu)勢
AMAT Applied Materials 0100-91085導管PCB 英文資料：
The AMAT 0100-91085 conduit PCB is designed for integrated fluid transmission and circuit control, integrating a 4-layer TG FR-4 substrate with a 2-layer PTFE conduit. It is suitable for process chamber auxiliary systems of semiconductor devices such as Centura, Endura, XR80, etc. It can complete process gas or coolant transmission and sensor/actuator signal control on the same board, reduce wiring and pipeline complexity, and improve stability and space utilization.
Core specifications and parameters
Project Specification Description
Type: Multi layer rigid conduit PCB (4-layer circuit+2-layer conduit) integrated design, reducing interference
High TG FR-4 substrate material (TG ≥ 170 ℃); Copper foil: outer layer 2oz/inner layer 1oz, high temperature resistant, thick copper foil with stable high current transmission
Tube material/inner diameter PTFE; 1.5mm or 2.0mm (dual specifications) corrosion-resistant, washable, compatible with gas/coolant
Tube pressure resistance ≤ 0.8MPa meets the pressure requirements of process gas/coolant
Circuit function: 2-channel analog acquisition (4-20mA)+4-channel digital control (24VDC) flow/pressure acquisition and solenoid valve control
Sealing grade conduit interface IP65; Circuit area IP42 anti leakage and dust-proof
Working environment -10~70 ℃; Humidity ≤ 85% RH (no condensation) to adapt to the surrounding environment of the equipment
Installation method: Panel type (4 × M3, 50 × 80mm) standard installation position, adjustable direction
Features and advantages
Fluid signal integration: PTFE conduits are integrated with circuits on the same board, reducing cross interference between pipelines and wires and improving the accuracy of analog signal acquisition (± 0.5% FS).
Corrosion resistance and high reliability: PTFE is resistant to strong corrosive gases and chemical cleaning; ENIG treatment on the surface of PCB enhances oxidation resistance, chemical resistance, and prolongs its lifespan.
Space optimization: Compared to the traditional "pipeline+circuit board" design, it can save about 40% of installation space and adapt to compact chambers.
Convenient maintenance: Quick plug catheter interface, no need to disassemble the board when replacing the pipeline; Reserve test points in the circuit area for quick troubleshooting.

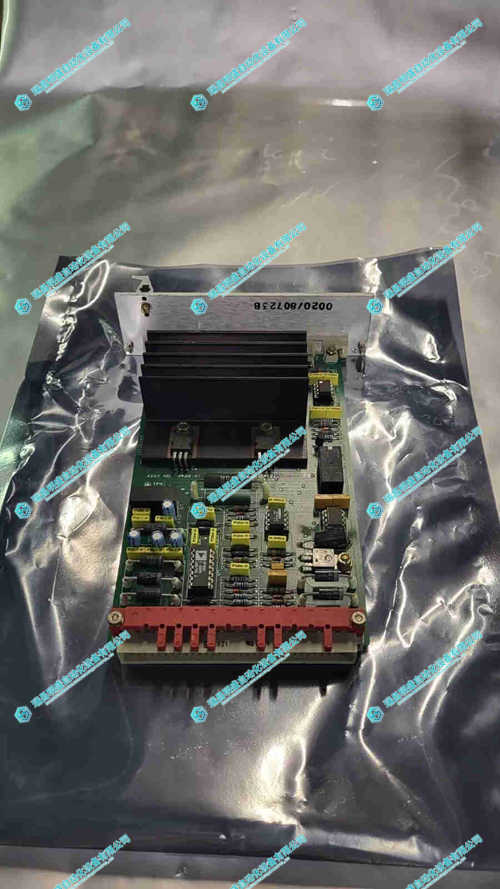

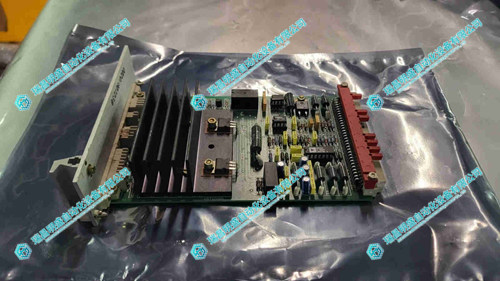

AMAT Applied Materials 0100-91085導管PCB 產品展示
