AMAT Applied Materials 0225-02861接口模塊

1.產 品 資 料 介 紹：

產品概述

AMAT 0225-02861 接口模塊是 Applied Materials 半導體設備中的關鍵通信與信號管理模塊。它主要用于連接主控制器與各子系統或外圍模塊，實現數字和模擬信號的傳輸、匯總與分配。該模塊保證設備各功能單元之間信息的準確傳遞，是維持設備穩定運行和工藝精確控制的重要組成部分。

技術參數（典型特征）

• 類型：接口模塊 / Interface Module

• 功能：信號傳輸、匯總、分配，實現主控制器與子模塊通信

• 接口類型：多通道數字/模擬信號接口，支持總線或點對點連接

• 信號類型：數字量和模擬量輸入輸出

• 工作環境：潔凈室兼容，耐高溫、抗振動

• 兼容設備：Applied Materials 各類沉積（CVD/PVD）、刻蝕（Etch）、離子注入及熱處理設備

• 電氣特性：支持安全、可靠的數據傳輸與模塊通信

應用場景

1. 子系統連接

   • 將主控制器與加熱器、流量控制器、真空系統、傳感器盒等子模塊連接，實現信息傳遞。

2. 信號匯總與分配

   • 匯總各子模塊信號，保證控制器能夠準確掌握設備狀態。

3. 設備協調運行

   • 支持各模塊同步操作，確保工藝流程穩定運行。

4. 維護與升級便捷

   • 模塊化設計便于拆裝和更換，提高設備維護效率。

AMAT Applied Materials 0225-02861接口模塊 英文資料：

Product Overview

The AMAT 0225-02861 interface module is a critical communication and signal management module in Applied Materials semiconductor equipment. It is mainly used to connect the main controller with various subsystems or peripheral modules, realizing the transmission, aggregation, and distribution of digital and analog signals. This module ensures accurate transmission of information between various functional units of the equipment, and is an important component in maintaining stable operation of the equipment and precise process control.

Technical parameters (typical features)

Type: Interface Module

Function: Signal transmission, aggregation, distribution, realizing communication between the main controller and sub modules

Interface type: Multi channel digital/analog signal interface, supporting bus or point-to-point connection

Signal type: digital and analog input/output

Work environment: cleanroom compatible, high temperature resistant, vibration resistant

Compatible devices: Applied Materials various deposition (CVD/PVD), etching (Etch), ion implantation, and heat treatment equipment

Electrical characteristics: Supports safe and reliable data transmission and module communication

Application scenarios

Subsystem connection

Connect the main controller with sub modules such as heater, flow controller, vacuum system, sensor box, etc. to achieve information transmission.

Signal consolidation and allocation

Summarize the signals of each submodule to ensure that the controller can accurately grasp the equipment status.

Coordinated operation of equipment

Support synchronous operation of various modules to ensure stable operation of the process flow.

Easy maintenance and upgrade

Modular design facilitates disassembly and replacement, improving equipment maintenance efficiency.

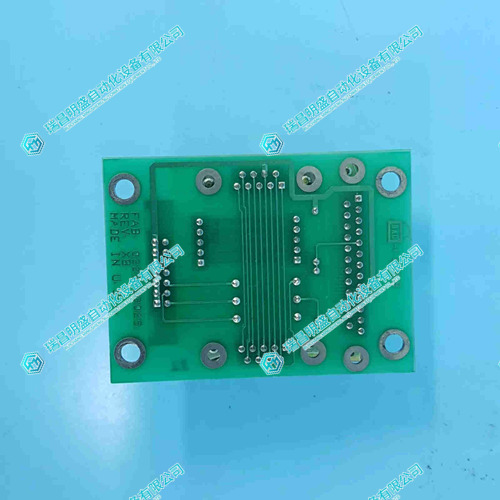

AMAT Applied Materials  0225-02861接口模塊 產品展示

 產品視頻
