AMAT Applied Materials 0010-70131監視器模塊

1.產 品 資 料 介 紹：

產品概述

AMAT 0010-70131 監視器模塊是應用材料公司（Applied Materials）半導體制造設備中的核心監測組件，主要用于對機臺運行參數、工藝狀態以及關鍵子系統的實時監控與反饋。該模塊通過高可靠性的電路設計和接口系統，實現對溫度、壓力、電流、電壓及其他工藝變量的采集與處理，從而保障設備的精確控制與穩定運行。

技術參數（典型特征）

• 模塊類型：監控與信號處理模塊

• 功能接口：多通道輸入/輸出，用于采集傳感器和子系統信號

• 監測內容：工藝參數（溫度、氣體流量、電源狀態、腔體條件等）

• 反饋機制：支持報警、數據記錄、信號傳輸至主控制單元

• 適配設備：Applied Materials CVD、PVD、Etch、CMP 等系列半導體工藝設備

• 可靠性設計：具備抗干擾、容錯和穩定的電源管理電路

應用場景

1. 半導體制造工藝監控

   • 在沉積、刻蝕、離子注入等環節實時采集工藝數據，確保工藝窗口穩定。

2. 設備健康管理

   • 對設備運行狀態進行連續監控，提前發現異常并觸發報警，減少停機風險。

3. 質量控制

   • 提供工藝批次的過程監控?cái)?shù)據，用于產品良率提升與追溯。

4. 維護與診斷

   • 協助工程師在機臺維護時進行快速診斷，定位子系統問題。

產品優勢

• 高精度監控：能夠捕捉微小的工藝波動，保障半導體工藝的精細化控制。

• 實時響應：快速數據采集與反饋機制，有助于設備及時調整運行參數。

• 模塊化設計：易于替換和維護，提升設備運行的可用性。

• 可靠性高：符合半導體行業對長期連續運行的嚴格要求，減少意外停機。

• 兼容性強：適用于Applied Materials多種平臺設備，具有通用性。

AMAT Applied Materials 0010-70131監視器模塊 英文資料：

Product Overview

The AMAT 0010-70131 monitor module is the core monitoring component in Applied Materials' semiconductor manufacturing equipment, mainly used for real-time monitoring and feedback of machine operating parameters, process status, and key subsystems. This module achieves the acquisition and processing of temperature, pressure, current, voltage, and other process variables through highly reliable circuit design and interface system, thereby ensuring precise control and stable operation of the equipment.

Technical parameters (typical features)

Module Type: Monitoring and Signal Processing Module

Functional interface: Multi channel input/output, used for collecting sensor and subsystem signals

Monitoring content: process parameters (temperature, gas flow rate, power status, chamber conditions, etc.)

Feedback mechanism: supports alarm, data recording, and signal transmission to the main control unit

Adaptation equipment: Applied Materials CVD, PVD, Etch, CMP and other series of semiconductor process equipment

Reliability design: power management circuit with anti-interference, fault tolerance, and stability

Application scenarios

Semiconductor manufacturing process monitoring

Real time collection of process data during sedimentation, etching, ion implantation, and other processes to ensure stable process windows.

Equipment Health Management

Continuously monitor the operating status of equipment, detect anomalies in advance and trigger alarms to reduce the risk of downtime.

quality control

Provide process monitoring data for process batches for product yield improvement and traceability.

Maintenance and Diagnosis

Assist engineers in quickly diagnosing and locating subsystem issues during machine maintenance.

Product advantages

High precision monitoring: capable of capturing small process fluctuations, ensuring precise control of semiconductor processes.

Real time response: A fast data collection and feedback mechanism helps devices adjust operating parameters in a timely manner.

Modular design: easy to ｒｅｐｌａｃｅ and maintain, improving the usability of equipment operation.

High reliability: meets the strict requirements of the semiconductor industry for long-term continuous operation, reducing unexpected downtime.

Strong compatibility: Suitable for various platforms of Applied Materials devices, with universality.

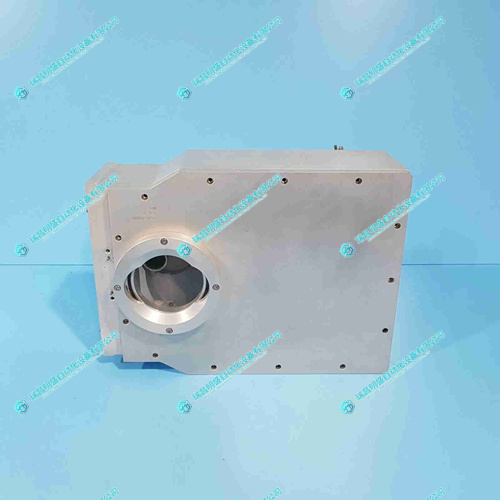

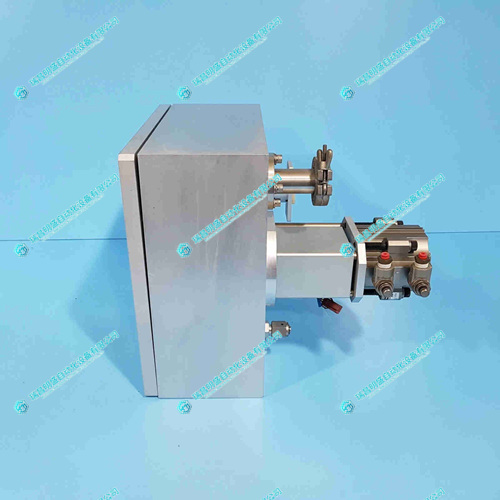

AMAT Applied Materials 0010-70131監視器模塊 產品展示

 產品視頻
