AMAT Applied Materials  0010-90811控制器模塊

1.產 品 資 料 介 紹：

產品概述

AMAT 0010-90811 控制器模塊是 Applied Materials 半導體制造設備中的關鍵部件，主要用于 氣體供應與工藝控制系統。該模塊通過精確的氣體流量、壓力和閥門狀態調節，確保腔體環境滿足工藝要求。它廣泛應用于刻蝕、沉積、離子注入等核心工藝環節，對保證半導體制造的一致性和高良率起到重要作用。

技術參數（推斷類信息，具體數值因未公開可能略有差異）

• 功能類型：氣體控制器模塊

• 控制對象：工藝氣體（如 BF?、高純工藝氣體等）

• 輸入電源：通常為低壓直流供電（24V DC 常見）

• 信號接口：支持與上位系統控制器（PLC 或 AMAT 專用主控系統）通信

• 監測功能：壓力、閥門狀態、流量反饋

• 控制模式：閉環控制，支持快速響應與高精度調節

• 設計特性：耐高純氣體腐蝕、適應潔凈室真空工藝環境

應用場景

1. 半導體工藝氣體供給

   • 精確調節工藝氣體流量，用于 CVD、PVD、刻蝕、離子注入等工藝。

2. 真空腔體環境控制

   • 在真空工藝腔中調節氣體壓力與比例，確保工藝穩定運行。

3. 安全與保護

   • 提供氣體狀態監控（流量、壓力、閥門位置），在異常情況時觸發保護措施。

4. 工藝精度與一致性

   • 實現閉環反饋，保持氣體參數穩定，確保晶圓加工質量一致。

產品優勢

• 高精度控制：確保氣體流量和壓力穩定，提升工藝良率。

• 高可靠性：經過 AMAT 嚴格認證，適配半導體潔凈室環境。

• 快速響應：能快速調整氣體狀態，滿足復雜工藝的動態需求。

• 安全保障：內置狀態監控與異常保護功能，提高設備運行安全性。

• 模塊化設計：作為 AMAT 設備的標準化控制模塊，方便更換與維護。

AMAT Applied Materials 0010-90811控制器模塊 英文資料：

Product Overview

The AMAT 0010-90811 controller module is a key component in Applied Materials semiconductor manufacturing equipment, mainly used for gas supply and process control systems. This module ensures that the chamber environment meets process requirements through precise adjustment of gas flow rate, pressure, and valve status. It is widely used in core processes such as etching, deposition, and ion implantation, playing an important role in ensuring consistency and high yield in semiconductor manufacturing.

Technical parameters (inferential information, specific values may vary slightly due to undisclosed information)

Function type: Gas controller module

Control object: Process gases (such as BF ∝, high-purity process gases, etc.)

Input power supply: usually low voltage DC power supply (24V DC is common)

Signal interface: supports communication with the upper system controller (PLC or AMAT dedicated main control system)

Monitoring function: pressure, valve status, flow feedback

Control mode: closed-loop control, supporting fast response and high-precision adjustment

Design features: resistant to high-purity gas corrosion, adaptable to clean room vacuum process environment

Application scenarios

Semiconductor process gas supply

Accurately adjust the process gas flow rate for CVD, PVD, etching, ion implantation and other processes.

Vacuum chamber environment control

Adjust the gas pressure and proportion in the vacuum process chamber to ensure the stable operation of the process.

Security and protection

Provide gas status monitoring (flow rate, pressure, valve position) and trigger protective measures in case of abnormal situations.

Process accuracy and consistency

Implement closed-loop feedback, maintain stable gas parameters, and ensure consistent wafer processing quality.

Product advantages

High precision control: Ensure stable gas flow and pressure, and improve process yield.

High reliability: certified by AMAT and suitable for semiconductor cleanroom environments.

Quick response: able to quickly adjust the gas state to meet the dynamic requirements of complex processes.

Security guarantee: Built in status monitoring and abnormal protection functions improve the safety of device operation.

Modular design: As a standardized control module for AMAT equipment, it is easy to ｒｅｐｌａｃｅ and maintain.

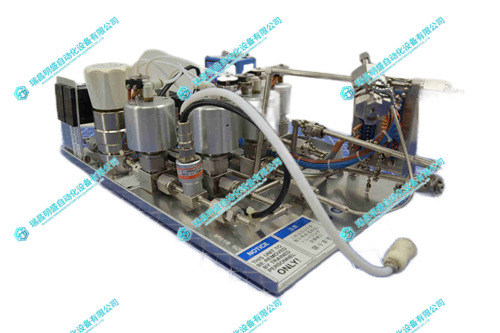

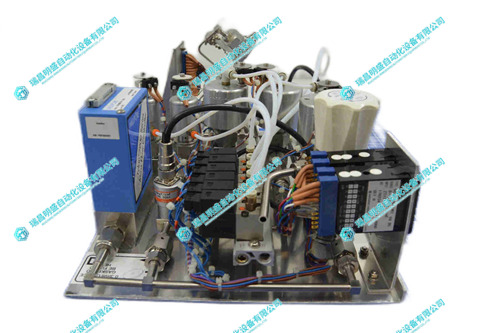

AMAT Applied Materials 0010-90811控制器模塊 產品展示

 產品視頻
