AMAT  DIP-280-015互鎖模塊

1.產 品 資 料 介 紹：

AMAT DIP-280-015 互鎖模塊

產品概述

AMAT（Applied Materials）DIP-280-015 互鎖模塊是一種用于半導體制造設備的 安全控制與互鎖單元。它通過邏輯互鎖和信號監控，確保設備在運行、維護或異常情況下能夠安全操作?；ユi模塊主要用于防止腔體、控制箱或關鍵工藝模塊在不安全狀態下被開啟或操作，從而保護設備、工藝和操作人員安全。

技術參數（典型方向，具體數據需參考原廠資料）

• 控制方式：邏輯互鎖，支持硬件和電子信號輸入

• 接口類型：數字輸入/輸出接口，可與設備控制系統和安全系統連接

• 信號類型：狀態檢測、門鎖信號、故障報警

• 安裝方式：模塊化，可集成于控制箱或底盤

• 環境適應性：耐高溫、耐振動，適應半導體設備潔凈室環境

應用場景

1. 設備腔體安全控制

   • 防止反應腔、真空腔或加工模塊在異常狀態下開啟

   • 保證工藝過程和人員操作安全

2. 控制箱與底盤控制箱安全保護

   • 監控控制箱門、模塊鎖狀態

   • 與設備控制系統聯動，實現異常停機或報警

3. 沉積工藝（CVD/PVD/ALD）

   • 在沉積腔體維護或操作時提供安全互鎖

   • 防止誤操作引發設備損壞或工藝異常

4. 刻蝕工藝設備

   • 對刻蝕腔體和氣動系統進行安全互鎖

   • 保證設備運行期間操作安全

5. 工廠自動化與安全管理

   • 與上位控制系統結合，實現遠程監控和安全管理

   • 提供設備狀態指示和異常報警功能

AMAT   DIP-280-015互鎖模塊 英文資料：

AMAT DIP-280-015 Interlock Module

Product Overview

The AMAT (Applied Materials) DIP-280-015 interlock module is a safety control and interlock unit used in semiconductor manufacturing equipment. It ensures safe operation of equipment during operation, maintenance, or abnormal situations through logical interlocking and signal monitoring. Interlocking modules are mainly used to prevent cavities, control boxes, or critical process modules from being opened or operated in an unsafe state, thereby protecting the safety of equipment, processes, and operators.

Technical parameters (typical direction, specific data should refer to the original factory information)

Control mode: Logic interlock, supporting hardware and electronic signal input

Interface type: Digital input/output interface, can be connected to device control system and security system

Signal types: status detection, door lock signal, fault alarm

Installation method: modular, can be integrated into the control box or chassis

Environmental adaptability: high temperature resistance, vibration resistance, suitable for semiconductor equipment cleanroom environment

Application scenarios

Equipment cavity safety control

Prevent the reaction chamber, vacuum chamber, or processing module from opening in abnormal conditions

Ensure the safety of the process and personnel operation

Control box and chassis control box safety protection

Monitor the status of control box doors and module locks

Integrate with the equipment control system to achieve abnormal shutdown or alarm

Deposition process (CVD/PVD/ALD)

Provide safety interlocks during maintenance or operation of sedimentation chambers

Prevent equipment damage or process abnormalities caused by misoperation

Etching process equipment

Safely interlock the etching chamber and pneumatic system

Ensure safe operation during equipment operation

Factory Automation and Safety Management

Combining with the upper control system to achieve remote monitoring and safety management

Provide device status indication and abnormal alarm function

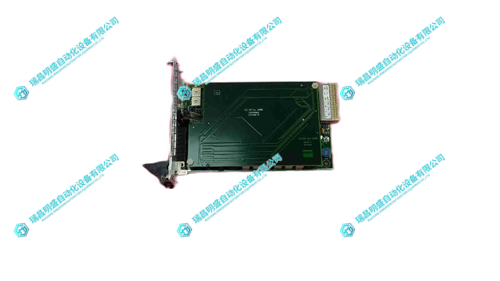

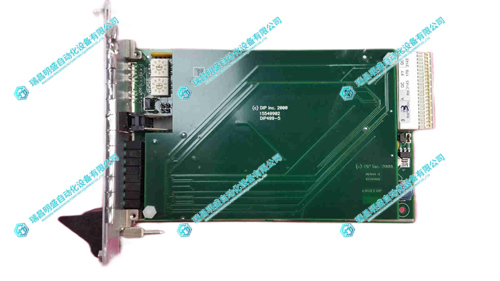

AMAT  DIP-280-015互鎖模塊 產品展示

 產品視頻
