AMAT  0242-01644 控制器組件

1.產 品 資 料 介 紹：

AMAT 0242-01644 控制器組件

產品概述

AMAT（Applied Materials）0242-01644 控制器組件是一種用于半導體制造設備的 核心控制單元模塊化組件。它通常由處理器、電路板、接口模塊及控制邏輯單元組成，用于協調設備內部各子模塊的運行，如加熱器、泵浦、氣動閥門、射頻模塊及傳感器，實現精確工藝控制、狀態監控和數據傳輸。該組件可集成在控制箱或底盤控制系統中，是設備自動化和工藝穩定的關鍵組成部分。

技術參數（典型方向，具體數據需參考原廠資料）

• 處理能力：支持多模塊并行控制與邏輯運算

• 接口類型：數字/模擬輸入輸出接口，兼容 AMAT 各類子模塊

• 通信能力：支持與上位控制系統及互鎖模塊的數據交互

• 控制功能：工藝調節、設備狀態監控、故障報警

• 安裝方式：模塊化設計，可直接集成于控制箱或底盤

• 環境適應性：適應半導體設備潔凈室及工業溫度范圍

應用場景

1. 沉積工藝（CVD/PVD/ALD）

   • 控制加熱器、泵浦和氣體閥門

   • 保證薄膜沉積過程的精度和均勻性

2. 刻蝕工藝設備

   • 控制射頻模塊、氣體流量及腔體壓力

   • 支持高精度刻蝕工藝

3. 離子注入系統

   • 控制離子源、掃描系統及束流監測模塊

   • 確保注入劑量和均勻性

4. 控制箱與底盤控制系統

   • 作為核心控制單元，協調內部模塊運行

   • 與電源模塊、互鎖模塊、PCB等協同工作

5. 工廠自動化與遠程監控

   • 與上位控制系統聯動，實現實時數據采集、狀態監控和異常報警

   • 提升設備管理效率和操作安全性

AMAT 0242-01644 控制器組件 英文資料：

AMAT 0242-01644 Controller Component

Product Overview

AMAT (Applied Materials) 0242-01644 controller component is a modular component used as the core control unit for semiconductor manufacturing equipment. It usually consists of a processor, circuit board, interface module, and control logic unit, used to coordinate the operation of various sub modules inside the equipment, such as heaters, pumps, pneumatic valves, RF modules, and sensors, to achieve precise process control, status monitoring, and data transmission. This component can be integrated into the control box or chassis control system and is a key component of equipment automation and process stability.

Technical parameters (typical direction, specific data should refer to the original factory information)

Processing capability: Supports multi module parallel control and logical operations

Interface type: digital/analog input/output interface, compatible with various sub modules of AMAT

Communication capability: supports data exchange with the upper control system and interlock module

Control functions: process adjustment, equipment status monitoring, fault alarm

Installation method: Modular design, can be directly integrated into the control box or chassis

Environmental adaptability: Suitable for semiconductor equipment cleanrooms and industrial temperature ranges

Application scenarios

Deposition process (CVD/PVD/ALD)

Control heaters, pumps, and gas valves

Ensure the accuracy and uniformity of the thin film deposition process

Etching process equipment

Control RF module, gas flow rate, and chamber pressure

Support high-precision etching process

Ion implantation system

Control ion source, scanning system, and beam monitoring module

Ensure injection dose and uniformity

Control box and chassis control system

As the core control unit, coordinate the operation of internal modules

Collaborate with power modules, interlock modules, PCBs, etc

Factory Automation and Remote Monitoring

Linkage with the upper control system to achieve real-time data collection, status monitoring, and abnormal alarm

Improve equipment management efficiency and operational safety

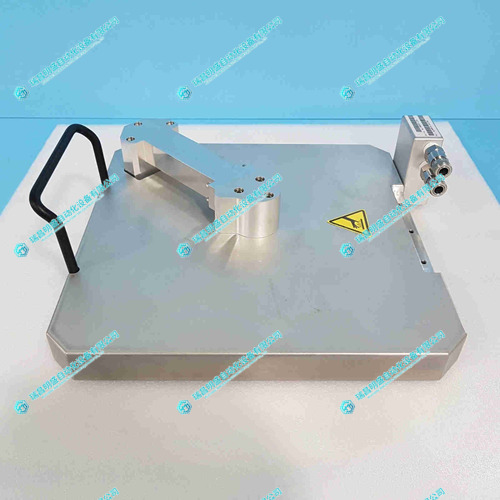

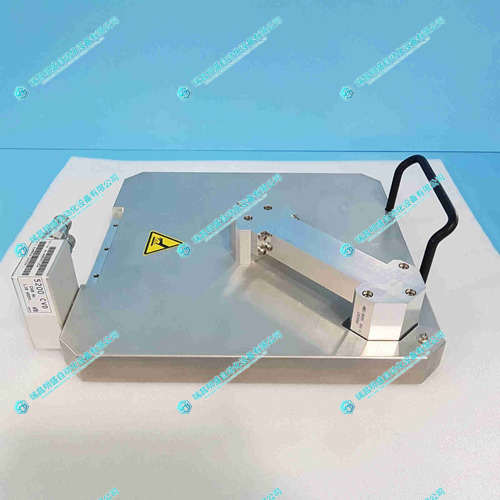

AMAT 0242-01644 控制器組件 產品展示

 產品視頻
