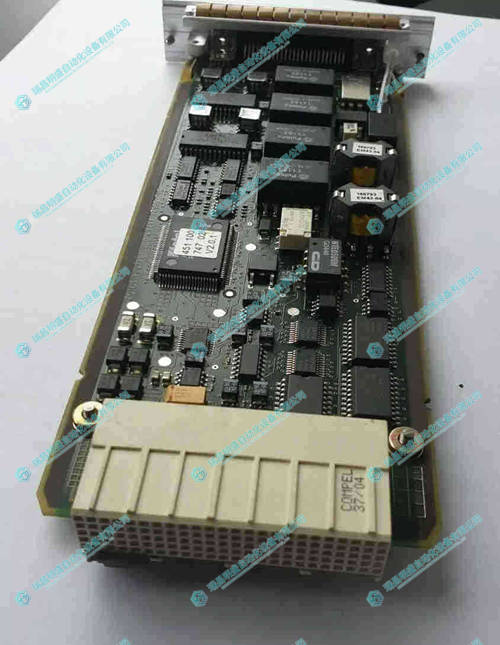

ALCATEL LUCENT 3AL86654AAAD控制模塊
1.產 品 資 料 介 紹：
中文資料：
ALCATEL-LUCENT 3AL86654AAAD 控制模塊 是一款用于 Alcatel-Lucent 通信平臺 的核心控制模塊，通常用于電信網絡的信號處理、數據轉發與系統管理。此控制模塊負責在網絡設備內進行中央控制、配置管理和系統監控等功能，確保設備穩定運行和高效性能。
一、產品基本信息
| 項目 | 內容 |
|---|---|
| 產品型號 | 3AL86654AAAD |
| 產品類型 | 控制模塊 / 控制器 |
| 制造商 | Alcatel-Lucent（現為諾基亞通信系統） |
| 安裝方式 | 通常為插拔式，部署于通信系統的主框架中 |
| 功能 | 系統控制、信號處理、資源分配、設備管理等 |
二、核心功能
該控制模塊的主要功能是提供以下服務：
| 功能模塊 | 具體說明 |
|---|---|
| 中央控制 | 作為整個通信系統或設備的核心控制單元，協調各板卡和模塊之間的工作 |
| 資源管理 | 管理系統內的硬件資源，包括 CPU 資源、內存、I/O 設備等 |
| 信號處理與路由 | 處理來自不同模塊的信號，進行數據路由、交換和調度 |
| 設備監控 | 通過硬件和軟件的結合，對系統的運行狀態進行實時監控與故障診斷 |
| 配置管理 | 支持設備的配置與更新，確保系統根據需要進行靈活調整 |
| 接口協調 | 協調各種物理接口的工作，例如光纖、以太網、TDM 接口等的集成與切換 |
英文資料：
The ALCATEL-LUCENT 3AL86654AAD control module is a core control module used for Alcatel Lucent communication platforms, typically for signal processing, data forwarding, and system management in telecommunications networks. This control module is responsible for central control, configuration management, and system monitoring within network devices, ensuring stable operation and efficient performance of the devices.
1、 Basic Product Information
Project Content
Product model 3AL86654AAD
Product Type Control Module/Controller
Manufacturer Alcatel Lucent (now Nokia Communication System)
The installation method is usually plug-in and deployed in the main framework of the communication system
Functional system control, signal processing, resource allocation, equipment management, etc
2、 Core functions
The main function of this control module is to provide the following services:
Specific Description of Functional Modules
Central control, as the core control unit of the entire communication system or equipment, coordinates the work between various boards and modules
Hardware resources within the resource management system, including CPU resources, memory, I/O devices, etc
Signal processing and routing handle signals from different modules for data routing, switching, and scheduling
Equipment monitoring combines hardware and software to provide real-time monitoring and fault diagnosis of the system's operating status
Configuration management supports device configuration and updates, ensuring that the system can be flexibly adjusted as needed
Interface coordination and coordination of various physical interfaces, such as integration and switching of fiber optic, Ethernet, TDM interfaces, etc

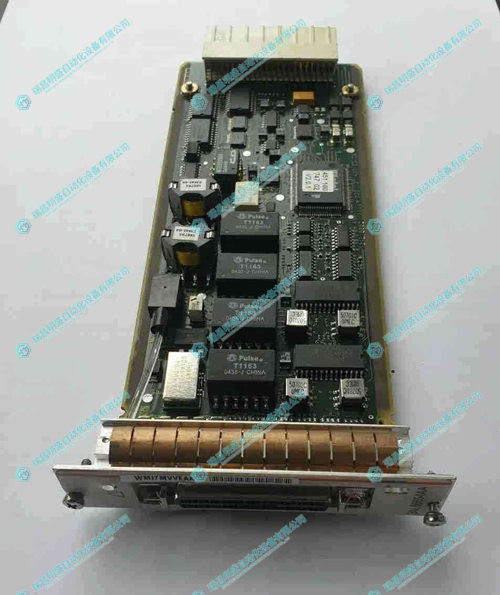

2.產 品 展 示
