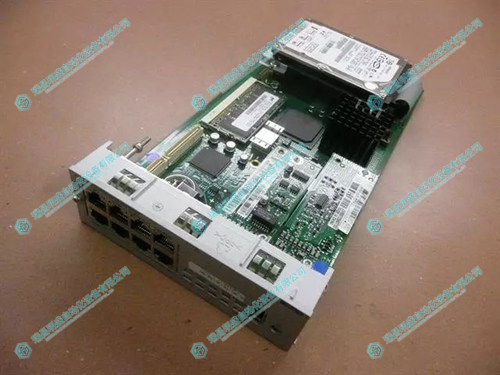

ALCATEL LUCENT 3EU23006ACBC印刷電路板
1.產 品 資 料 介 紹：
中文資料：
ALCATEL-LUCENT 3EU23006ACBC 是一塊用于通信系統設備中的 印刷電路板（PCB, Printed Circuit Board），屬于 Alcatel-Lucent 的通信平臺專用模塊之一。該電路板在結構上具備高度集成的信號處理與接口邏輯，服務于電信網絡中各類交換、接入、或傳輸功能。
一、基本信息概覽
| 項目 | 內容 |
|---|---|
| 產品型號 | 3EU23006ACBC |
| 產品類型 | 印刷電路板 / 功能子板 |
| 制造廠商 | Alcatel-Lucent（現為諾基亞網絡業務） |
| 安裝方式 | 插拔式，部署于通信系統主框架中 |
| 使用定位 | 接入、傳輸、控制系統中的功能模塊電路板 |
二、核心功能（推測）
由于此類 PCB 多為特定平臺定制化產品，3EU23006ACBC 可能具備以下功能之一或組合：
| 功能類型 | 功能說明 |
|---|---|
| 信號處理電路板 | 用于物理層信號調理、數字/模擬信號轉換、接口驅動等任務 |
| 控制邏輯分支板 | 協助主控模塊進行信令處理或特定通道的控制邏輯分發 |
| 數據通路板/接口分接板 | 為多個信號線纜或光纖提供物理連接、接頭整合及通道中繼 |
| 電源輔助與分配板 | 用于低壓電源的分配、濾波與管理，保障主板/接口板供電穩定性 |
英文資料：
ALCATEL-LUCENT 3EU23006ACBC is a printed circuit board (PCB) used in communication system equipment, and is one of the communication platform specific modules of Alcatel Lucent. This circuit board has highly integrated signal processing and interface logic in its structure, serving various switching, access, or transmission functions in telecommunications networks.
1、 Overview of Basic Information
Project Content
Product model 3EU23006ACBC
Product type: Printed circuit board/functional daughter board
Manufacturer Alcatel Lucent (now Nokia Network Business)
Installation method plug-in, deployed in the main framework of the communication system
Use functional module circuit boards in positioning access, transmission, and control systems
2、 Core function (speculated)
Due to the fact that these PCBs are mostly customized products for specific platforms, 3EU23006ACBC may have one or a combination of the following functions:
Function Type Function Description
The signal processing circuit board is used for tasks such as physical layer signal conditioning, digital/analog signal conversion, interface driving, etc
The control logic branch board assists the main control module in signal processing or control logic distribution for specific channels
The data path board/interface patch panel provides physical connections, joint integration, and channel relay for multiple signal cables or optical fibers
The power auxiliary and distribution board is used for the distribution, filtering, and management of low-voltage power supplies, ensuring the stability of power supply for the motherboard/interface board
