HORNER ELECTRIC HE693THM889C模擬熱電偶輸入模塊
1.產 品 資 料 介 紹：
中文資料：
HORNER ELECTRIC HE693THM889C 是一款 模擬熱電偶輸入模塊，專為 GE Fanuc 90-30 PLC 系列設計，能夠接收來自熱電偶的模擬信號并轉換為數字信號。它被廣泛應用于工業自動化控制系統中，尤其是在需要高精度溫度監控和控制的應用場合。
主要特點：
兼容性與集成
專為 GE Fanuc 90-30 PLC 系列設計，適用于 Horner Electric 系列自動化控制系統。
可通過 Proficy Machine Edition 或 Logicmaster 90 軟件進行配置與編程。
完美兼容其他 Horner Electric 產品，易于與現有系統集成。
輸入通道
提供 8 個獨立的模擬熱電偶輸入通道，每個通道均可接收來自熱電偶傳感器的信號。
模塊支持多種類型的熱電偶，包括 K型、J型、T型、E型、R型、S型、B型、N型 等。
熱電偶類型支持
支持常見的 K型、J型、T型、E型、R型、S型、B型、N型 等熱電偶。
該模塊根據不同熱電偶類型提供溫度測量，并能夠根據不同的工作環境和要求選擇適當?shù)臒犭娕碱愋汀?/p>
精度與分辨率
提供高精度的溫度數據采集功能，精度可達到 ±0.25% 或更高，確保精確測量和可靠數據輸出。
分辨率可達到 0.1°C，使得溫度變化能夠被及時且精確地捕捉。
自動冷端補償功能
該模塊具有 自動冷端補償功能，能夠補償熱電偶冷端的溫度變化，確保溫度數據的準確性。
即使冷端溫度發生變化，也能準確反映熱電偶端的溫度，提升數據的可靠性。
模擬信號轉換
該模塊支持 模擬信號輸入，并將其轉換為 數字信號，用于后續的處理和控制。
輸出的數字信號可以通過 PLC 程序進一步處理，用于溫度控制或報警系統。
狀態指示與報警功能
配備 LED 指示燈，顯示模塊的運行狀態，包括信號輸入狀態、正常運行以及故障警告。
提供 報警輸出，當溫度超出設定范圍或模塊發生故障時，及時發出警告。
多通道設計
支持多達 8 個獨立通道，允許用戶同時連接多個熱電偶傳感器，進行多點溫度監測。
每個通道具有獨立的輸入和輸出設置，適用于復雜的工業控制系統。
英文資料：
HORNER ELECTRIC HE693THM889C is an analog thermocouple input module designed specifically for the GE Fanuc 90-30 PLC series, capable of receiving analog signals from thermocouples and converting them into digital signals. It is widely used in industrial automation control systems, especially in applications that require high-precision temperature monitoring and control.
Main features:
Compatibility and Integration
Specially designed for GE Fanuc 90-30 PLC series, suitable for Horner Electric series automation control systems.
Configuration and programming can be done through Proficy Machine Edition or Logicmaster 90 software.
Perfectly compatible with other Horner Electric products and easy to integrate with existing systems.
Channel
Provide 8 independent analog thermocouple input channels, each of which can receive signals from thermocouple sensors.
The module supports multiple types of thermocouples, including K-type, J-type, T-type, E-type, R-type, S-type, B-type, N-type, etc.
Thermocouple type support
Supports common types of thermocouples such as K, J, T, E, R, S, B, N, etc.
This module provides temperature measurement based on different thermocouple types and can ｓｅｌｅｃｔ the appropriate thermocouple type according to different working environments and requirements.
Accuracy and Resolution
Provide high-precision temperature data acquisition function, with an accuracy of ± 0.25% or higher, ensuring accurate measurement and reliable data output.
The resolution can reach 0.1 ° C, allowing temperature changes to be captured in a timely and accurate manner.
Automatic cold end compensation function
This module has an automatic cold end compensation function, which can compensate for temperature changes in the cold end of thermocouples and ensure the accuracy of temperature data.
Even if the temperature at the cold end changes, it can accurately reflect the temperature at the thermocouple end, improving the reliability of the data.
Analog signal conversion
This module supports analog signal input and converts it into digital signals for subsequent processing and control.
The output digital signals can be further processed through PLC programs for temperature control or alarm systems.
Status indication and alarm function
Equipped with LED indicator lights to display the operating status of the module, including signal input status, normal operation, and fault warnings.
Provide alarm output to promptly issue a warning when the temperature exceeds the set range or the module malfunctions.
Multi-channel Design
Supports up to 8 independent channels, allowing users to connect multiple thermocouple sensors simultaneously for multi-point temperature monitoring.
Each channel has independent input and output settings, suitable for complex industrial control systems.

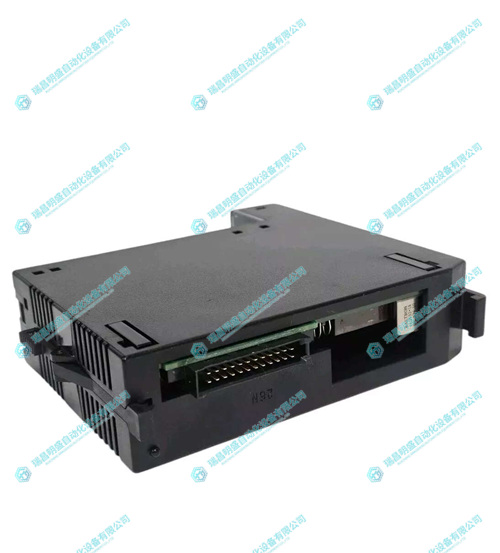

2.產 品 展 示
