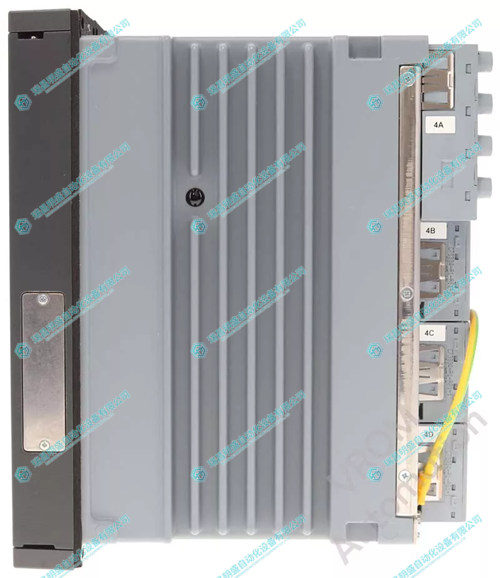

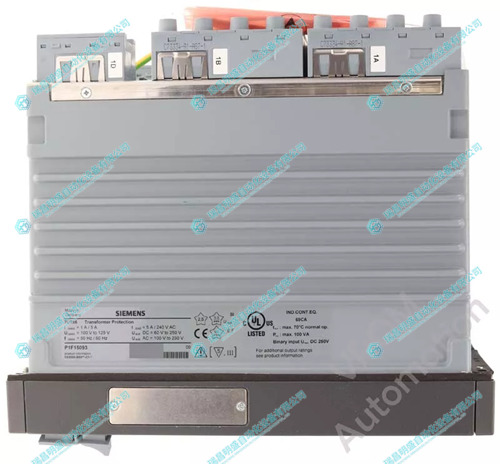

Siemens 7UT86 Transformer

1.產 品 資 料 介 紹：

中文資料：

Siemens 7UT86 是一款變壓器保護繼電器，主要用于電力系統中的變壓器、電抗器和長線路的保護。它基于數字繼電器技術，能夠提供高精度的差動保護、過流保護和其他附加功能，以確保變壓器的安全運行。

主要功能特點

• 差動保護（87T）：利用變壓器兩側電流的比較來檢測內部故障，具有高靈敏度和快速動作特性。
• 過流保護（50/51）：檢測短路和過載情況，防止設備損壞。
• 勵磁涌流抑制：可區分正常勵磁涌流和實際故障電流，避免誤動作。
• 零序保護（87N, 50N/51N）：用于檢測接地故障，提高系統安全性。
• 過負荷保護（49）：監測變壓器負荷，防止過熱損壞。
• 遠程通信與監測：支持多種通信協議（如 IEC 61850），可與 SCADA 或 DCS 系統集成，實現遠程監控。

應用領域

• 高壓/超高壓變電站：為大型電力變壓器提供全面保護，防止內部短路、繞組故障等問題。
• 工業電網：用于鋼鐵、化工、石油等行業的大型變電系統，確保電力設備的穩定運行。
• 可再生能源：在風電、光伏等新能源場景中，對升壓變壓器提供保護，確保電能輸送可靠性。

Siemens 7UT86 以其高精度保護功能和強大的通信能力，被廣泛應用于現代電力系統和工業配電系統中。

英文資料：

Siemens 7UT86 is a transformer protection relay mainly used for the protection of transformers, reactors, and long lines in power systems. It is based on digital relay technology and can provide high-precision differential protection, overcurrent protection, and other additional functions to ensure the safe operation of transformers.

Main functional features

Differential protection (87T): uses the comparison of current on both sides of the transformer to detect internal faults, with high sensitivity and fast action characteristics.

Overcurrent protection (50/51): detects short circuits and overloads to prevent equipment damage.

Excitation inrush current suppression: It can distinguish between normal excitation inrush current and actual fault current to avoid misoperation.

Zero sequence protection (87N, 50N/51N): used to detect grounding faults and improve system safety.

Overload protection (49): Monitor transformer load to prevent overheating and damage.

Remote communication and monitoring: Supports multiple communication protocols (such as IEC 61850), can be integrated with SCADA or DCS systems, and achieve remote monitoring.

application area

High voltage/ultra-high voltage substation: provides comprehensive protection for large power transformers to prevent internal short circuits, winding failures, and other issues.

Industrial power grid: a large-scale substation system used in industries such as steel, chemical, and petroleum to ensure the stable operation of power equipment.

Renewable energy: In new energy scenarios such as wind power and photovoltaics, protection is provided for step-up transformers to ensure reliable power transmission.

Siemens 7UT86 is widely used in modern power systems and industrial distribution systems due to its high-precision protection function and powerful communication capabilities.
