AEG MODICON SC8128印刷電路板

1.產 品 資 料 介 紹：

1. AEG Modicon SC8128 作為工業級專用印刷電路板，采用高穩定性集成電路設計，專為 Modicon 經典 PLC 系統提供核心信號處理與總線控制支持。
2. 兼容 Intel 8128 系列芯片架構，SC8128 印刷電路板具備時鐘發生器與總線管理雙重功能，確保工業控制系統各組件同步運行。
3. AEG Modicon SC8128 采用鍍錫紫銅走線與 PA66 絕緣封裝，機械強度與防氧化性能優異，適配工業控制柜長期穩定運行需求。
4. 支持 - 40℃至 85℃寬工作溫度范圍，SC8128 可耐受極端高低溫工況，適配戶外及惡劣車間環境部署。
5. AEG Modicon SC8128 印刷電路板集成多組 TTL 兼容輸出接口，可直接驅動外圍設備，無需額外緩沖電路，簡化系統設計。
6. 兼容 Modbus RTU/TCP 通信協議，SC8128 可與 PLC 主站、HMI 及遠程 I/O 模塊高效數據交互，保障控制鏈路暢通。
7. AEG Modicon SC8128 具備 1kV 電氣隔離能力，抗電磁干擾性能突出，有效抵御工業現場復雜布線帶來的信號干擾。
8. 采用標準 DIN 導軌安裝設計，SC8128 尺寸緊湊（參考同系列 95×132×111mm 規格），節省控制柜安裝空間，部署便捷。
9. AEG Modicon SC8128 印刷電路板內置雙看門狗機制，可實時監控運行狀態，防范程序卡死等故障，提升系統可靠性。
10. 支持 10-30VDC 寬電壓供電與冗余電源輸入，SC8128 能抵御電壓波動，保障工業場景供電穩定性。
11. AEG Modicon SC8128 兼容 IEC 61131-3 標準編程環境，支持梯形圖、功能塊圖等多語言開發，降低二次調試門檻。
12. 配備可編程 LED 指示燈與故障診斷接口，SC8128 可直觀反饋運行狀態，縮短現場故障排查時間。
13. AEG Modicon SC8128 印刷電路板廣泛應用于老舊 PLC 系統維修、工業控制器升級等場景，是自動化設備運維核心備件。
14. 采用多層 PCB 板設計與優化接地布局，SC8128 信號傳輸損耗小，數據處理延遲低，滿足工業控制實時性要求。
15. AEG Modicon SC8128 通過 CE、UL 工業認證，符合國際安全標準，適配電力、制造、基礎設施等多行業控制需求。

AEG MODICON SC8128印刷電路板 英文資料：

AEG Modicon SC8128 is an industrial grade specialized printed circuit board designed with high stability integrated circuits, providing core signal processing and bus control support for Modicon's classic PLC systems.

Compatible with Intel 8128 series chip architecture, the SC8128 printed circuit board has dual functions of clock generator and bus management, ensuring synchronous operation of various components in industrial control systems.

The AEG Modicon SC8128 adopts tin plated copper wire and PA66 insulation packaging, with excellent mechanical strength and oxidation resistance, suitable for the long-term stable operation needs of industrial control cabinets.

Supporting a wide working temperature range of -40 ℃ to 85 ℃, SC8128 can withstand extreme high and low temperature conditions and is suitable for deployment in outdoor and harsh workshop environments.

The AEG Modicon SC8128 printed circuit board integrates multiple TTL compatible output interfaces, which can directly drive peripheral devices without the need for additional buffer circuits, simplifying system design.

Compatible with Modbus RTU/TCP communication protocols, SC8128 can efficiently exchange data with PLC master stations, HMI, and remote I/O modules, ensuring smooth control links.

The AEG Modicon SC8128 has 1kV electrical isolation capability and outstanding anti electromagnetic interference performance, effectively resisting signal interference caused by complex wiring in industrial sites.

Adopting standard DIN rail installation design, SC8128 is compact in size (referring to the same series of 95 × 132 × 111mm specifications), saving control cabinet installation space and facilitating deployment.

The AEG Modicon SC8128 printed circuit board has a built-in dual watchdog mechanism, which can monitor the running status in real time, prevent program freezing and other faults, and improve system reliability.

Supporting 10-30VDC wide voltage power supply and redundant power input, SC8128 can resist voltage fluctuations and ensure power supply stability in industrial scenarios.

The AEG Modicon SC8128 is compatible with the IEC 61131-3 standard programming environment and supports multilingual development such as ladder diagrams and functional block diagrams, reducing the threshold for secondary debugging.

Equipped with programmable LED indicator lights and fault diagnosis interfaces, SC8128 can provide intuitive feedback on operating status, reducing on-site troubleshooting time.

The AEG Modicon SC8128 printed circuit board is widely used in scenarios such as repairing old PLC systems and upgrading industrial controllers, and is a core spare part for the operation and maintenance of automation equipment.

Adopting multi-layer PCB board design and optimized grounding layout, SC8128 has low signal transmission loss and data processing delay, meeting the real-time requirements of industrial control.

AEG Modicon SC8128 has passed CE and UL industrial certification, complies with international safety standards, and is suitable for control needs in multiple industries such as power, manufacturing, and infrastructure.

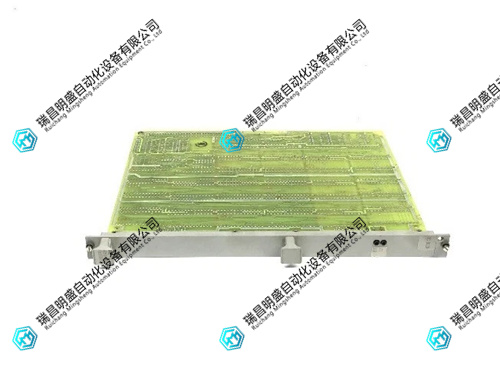

 AEG MODICON SC8128印刷電路板 產品展示

 產品視頻
