Control Techniques SP5402控制器

1.產 品 資 料 介 紹：

產品概述

Control Techniques SP5402 是 Unidrive SP 系列驅動器的高級控制器模塊，專門用于工業電機控制系統。該模塊為驅動器提供精確的速度、扭矩和位置控制，同時可執行復雜的自動化邏輯和保護功能。SP5402 通常與 AC 電機驅動器配合使用，構成完整的電機控制單元，適合自動化生產線、包裝、風機泵系統以及高性能機床應用。

技術參數

• 型號：SP5402

• 類型：控制器模塊 / 驅動器控制核心

• 適配系列：Unidrive SP 系列 AC 驅動器

• 控制方式：

  • 高級矢量控制（開環或閉環）

  • 速度、扭矩及位置控制

• 通信接口：

  • Modbus、CANopen、Ethernet/IP 等工業協議

  • 與 PLC 或 DCS 系統集成能力強

• 功能特點：

  • PID 回路控制

  • 高速信號處理

  • 多種輸入/輸出接口，可連接外部傳感器或執行器

• 安全保護：過載、過壓、欠壓、短路、過溫等保護

• 安裝方式：模塊化設計，可插入 Unidrive SP 驅動器機架或控制單元

應用場景

1. 工業自動化：輸送帶、包裝機、攪拌機及機床控制

2. 泵與風機系統：實現流量、壓力及速度的精確控制

3. 冶金、礦山及石化行業：大功率電機的高精度控制

4. 高性能機床與加工設備：對電機位置、速度和扭矩的精準控制

5. 實驗與研發：電機性能測試及控制算法驗證

Control Techniques SP5402控制器 英文資料：

Product Overview

Control Techniques SP5402 is an advanced controller module for Unidrive SP series drives, specifically designed for industrial motor control systems. This module provides precise speed, torque, and position control for the driver, while executing complex automation logic and protection functions. SP5402 is typically used in conjunction with AC motor drivers to form a complete motor control unit, suitable for automated production lines, packaging, fan pump systems, and high-performance machine tool applications.

Technical Specifications

Model: SP5402

Type: Controller Module/Driver Control Core

Adaptation series: Unidrive SP series AC drive

Control method:

Advanced vector control (open-loop or closed-loop)

Speed, torque, and position control

Communication interface:

Industrial protocols such as Modbus, CANopen, Ethernet/IP, etc

Strong integration capability with PLC or DCS systems

Features:

PID loop control

high speed signal processing

Multiple input/output interfaces, capable of connecting external sensors or actuators

Safety protection: overload, overvoltage, undervoltage, short circuit, over temperature protection, etc

Installation method: Modular design, can be inserted into Unidrive SP drive rack or control unit

Application scenarios

Industrial automation: control of conveyor belts, packaging machines, mixers, and machine tools

Pump and fan system: achieving precise control of flow, pressure, and speed

Metallurgical, mining, and petrochemical industries: high-precision control of high-power motors

High performance machine tools and processing equipment: precise control of motor position, speed, and torque

Experiment and R&D: Motor performance testing and control algorithm verification

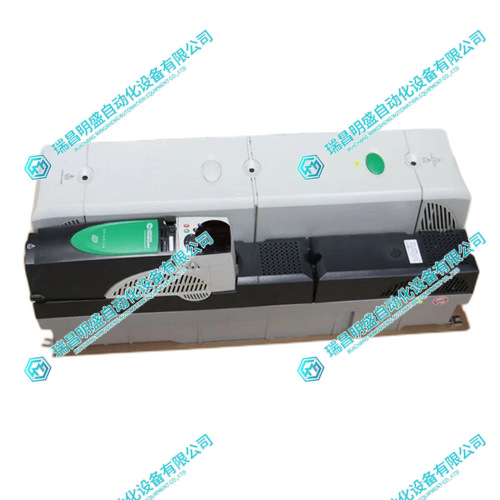

Control Techniques SP5402控制器 產品展示

 產品視頻
