FORCE COMPUTERS LC-EF3-RPM控制器板模塊
1.產 品 資 料 介 紹：
FORCE COMPUTERS LC-EF3-RPM控制器板模塊 英文資料：
FORCE COMPUTERS LC-EF3-RPM Embedded Controller Board Product Overview
The FORCE COMPUTERS LC-EF3-RPM embedded controller board is the core control component in industrial grade embedded systems, designed specifically for high reliability scenarios such as industrial automation, embedded control, and communication platforms. Its core characteristics include "high-performance computing, multi system adaptation, and tolerance to harsh environments". Through highly integrated hardware architecture, it integrates high-speed processors, expandable memory interfaces and rich I/O interfaces into a single module. Without additional complex hardware frameworks, it can be used as the core control unit of mainstream industrial bus systems such as VME, cPCI or PC/104, providing full link support of "operation acquisition control interaction" for various embedded tasks, greatly reducing the complexity and time cost of system integration in multiple scenarios.
From the perspective of hardware architecture, the controller board is built around three core requirements: "efficient computing+flexible interaction+stable transmission": the core computing layer is equipped with high-performance embedded CPUs (specific models depend on the version), combined with first/second level cache design, which can quickly process real-time control algorithms, high-frequency data acquisition and analysis tasks. For example, in industrial automation production lines, it can efficiently compute multi workstation collaborative control logic to ensure millisecond level response of control instructions; The storage layer adopts a combination of "onboard SDRAM/DRAM+Flash/EEPROM". The capacity of SDRAM/DRAM supports expansion to meet the temporary storage needs of large-scale data. Flash/EEPROM is used to store system firmware and boot programs, ensuring that critical configurations are not lost after device power failure; The interaction and transmission layer integrates multiple serial ports (RS-232/RS-422/RS-485), parallel ports/GPIO, and optional Ethernet interfaces, which can directly interface with sensors, actuators, upper computers, and other devices. At the same time, through bus interfaces compatible with VME, cPCI, or PC/104, high-speed data interaction with other functional modules in the system (such as data acquisition cards and communication modules) is achieved, constructing a complete control loop of "data acquisition processing control output status feedback".
In terms of reliability and scenario adaptation design, LC-EF3-RPM deeply meets the strict industrial standards: it adopts industrial grade component selection, supports wide temperature operation (usually covering -40 ℃~+85 ℃), can withstand extreme environmental fluctuations such as high temperature workshops, outdoor low temperatures, and coastal high humidity, and ensures stable performance under harsh temperature conditions; Through professional anti vibration and anti impact testing (in accordance with industrial equipment vibration standards), it can adapt to production line equipment vibration, traffic equipment bumps and other working conditions, avoiding hardware failures caused by mechanical vibration or impact; The onboard voltage stabilization design is compatible with industrial backplane power supply (such as+5V, ± 12V), effectively resisting the impact of power supply voltage fluctuations on core components, while also having overvoltage

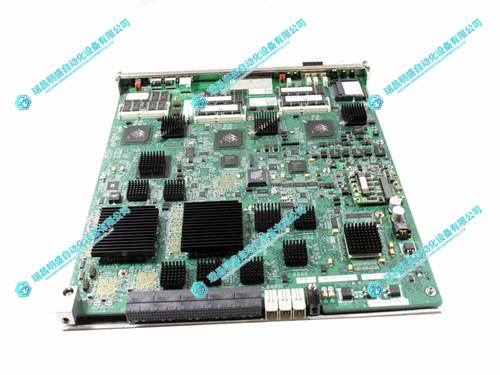

FORCE COMPUTERS LC-EF3-RPM控制器板模塊產 品 展 示
產品視頻
