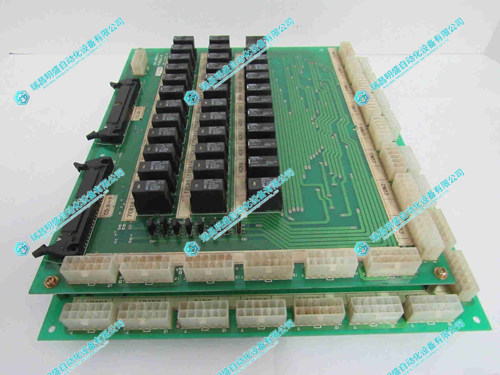

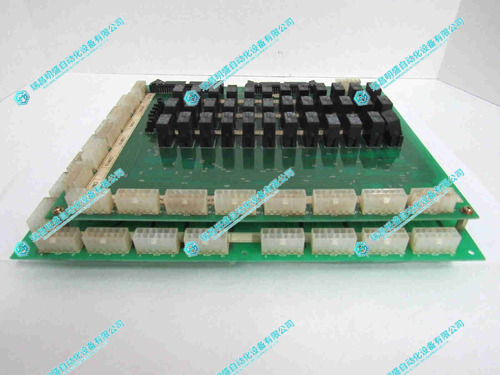

TOYOTA TP-8901-1 電路板
1.產 品 資 料 介 紹：
- 型號：TP-8901-1（FHOUT-F）
- 類型：繼電器輸出電路板，專門用于實現繼電器輸出控制功能。
- 輸出通道：具備 36 路繼電器輸出，可同時對多個外部執行器進行控制，滿足復雜工業場景的控制需求。
- 接口配置：配備 15 個 12 針母連接器，方便與其他設備進行連接；同時設有 2 個 CDJR-1 接口，進一步拓展了連接的靈活性。
- 安裝方式：支持模塊化機架安裝，可穩定地安裝在機架上；也可采用插槽安裝，便于快速安裝和更換，適應不同的設備安裝環境。
- 適用環境：針對工業現場設計，具備出色的抗震動能力，能在設備運行產生振動的環境下保持穩定工作；同時耐溫差能力較強，可適應工業現場較大的溫度變化。
- 配套使用：與 TP-8900-0 輸入板配合使用，能夠構成完整的 I/O 系統，實現信號的輸入與輸出，確保系統的正常運行。
- CNC 數控機床：在 CNC 數控機床中，用于控制機床的外部執行裝置，如液壓夾具的松緊控制、冷卻系統的啟停、照明的開關以及信號指示燈的狀態顯示等，保障數控機床的正常運轉。
- 自動化產線控制：作為生產線控制系統的輸出模塊，能夠驅動電磁閥、繼電器組、機械手臂等自動化部件，實現自動化產線的有序運行，提高生產效率。
- 工業控制柜：可集成在自動化控制柜中，作為集中輸出控制板使用，對柜內及連接的外部設備進行集中控制，簡化控制線路，提高控制柜的運行穩定性。
- 設備維護與替換：適用于維修或升級老舊的 Toyoda 控制系統，當系統中的輸出板出現故障時，可作為替換件進行更換，有效延長設備的使用壽命，降低設備更換成本。
英文資料：
Introduction to TOYOTA TP-8901-1 Circuit Board
TOYOTA TP-8901-1 circuit board (model FHOUT-F TP-8901-1) is a relay output control module suitable for industrial automation equipment and plays an important role in industrial control systems. It is usually used in conjunction with the TP-8900-0 (FHIN-F) input board, and the two work together to form the signal input and output core of CNC machine tools or automation control systems. This circuit board has the ability to output multiple relays, which can accurately drive external actuators, thereby achieving precise control of industrial equipment and providing strong support for the stable operation of industrial production.
Technical parameters
Model: TP-8901-1 (FHOUT-F)
Type: Relay output circuit board, specifically designed to implement relay output control functions.
Output channel: Equipped with 36 relay outputs, it can simultaneously control multiple external actuators to meet the control requirements of complex industrial scenarios.
Interface configuration: equipped with 15 12 pin female connectors for easy connection with other devices; At the same time, there are two CDJR-1 interfaces, further expanding the flexibility of the connection.
Installation method: Supports modular rack installation and can be stably installed on the rack; Slot installation can also be used for quick installation and replacement, adapting to different device installation environments.
Applicable environment: Designed for industrial sites, it has excellent anti vibration capabilities and can maintain stable operation in environments where equipment generates vibration during operation; At the same time, it has strong temperature tolerance and can adapt to large temperature changes in industrial sites.
Supporting use: When used in conjunction with the TP-8900-0 input board, it can form a complete I/O system, achieve signal input and output, and ensure the normal operation of the system.
Application scenarios
CNC machine tool: In CNC machine tools, it is used to control the external execution devices of the machine tool, such as the tightness control of hydraulic fixtures, the start and stop of cooling systems, the switch of lighting, and the status display of signal indicators, to ensure the normal operation of the CNC machine tool.
Automated production line control: As an output module of the production line control system, it can drive automation components such as solenoid valves, relay groups, and robotic arms to achieve orderly operation of the automated production line and improve production efficiency.
Industrial control cabinet: It can be integrated into an automation control cabinet and used as a centralized output control board to centrally control the internal and external devices connected to the cabinet, simplify the control circuit, and improve the operational stability of the control cabinet.
Equipment maintenance and replacement: suitable for repairing or upgrading old Toyota control systems. When the output board in the system fails, it can be replaced as a replacement part, effectively extending the service life of the equipment and reducing equipment replacement costs.
2.產 品 展 示
3.其他產品
4.其他英文產品
