Gasonics C12872變壓器
1.產 品 資 料 介 紹：
產品名稱
Gasonics C12872 變壓器
（英文：Transformer）
一、產品概述
Gasonics C12872 變壓器是一款專為 Gasonics 等離子設備設計的電源變壓器，主要功能是將輸入電源電壓轉換為設備內部各控制模塊和執行單元所需的穩定電壓，保障設備正常運行。該變壓器通常安裝于電源單元，負責提供可靠的電氣隔離和多路輸出。
二、技術參數
輸入電壓：典型為 208VAC、220VAC 或 240VAC（根據具體設備和地區標準）
輸出電壓：多路輸出，常見包括 24VAC、12VAC、±15VAC 等，具體電壓等級根據設備需求配置
功率容量：一般幾十至數百 VA，滿足多模塊供電需求
頻率：50Hz / 60Hz 兼容
絕緣等級：工業級絕緣，符合電氣安全標準
安裝方式：面板或底板安裝，帶螺栓固定孔
結構特征：封閉鐵芯設計，具有良好的電磁屏蔽效果
工作環境：適應半導體制造環境的高溫、高濕及電磁干擾條件
三、應用場景
為 Gasonics 等離子清洗與灰化設備的控制模塊、驅動器、傳感器和執行器等提供穩定的電壓和電流
電氣隔離，防止電網波動影響設備內部信號及控制精度
保障設備中溫控模塊、閥控模塊、顯示模塊等正常工作
支持設備多路電源需求，實現系統級電源分配
英文資料：
product name
Gasonics C12872 Transformer
(English: Transformer)
1、 Product Overview
The Gasonics C12872 transformer is a power transformer designed specifically for Gasonics plasma equipment. Its main function is to convert the input power voltage into a stable voltage required by various control modules and execution units inside the equipment, ensuring the normal operation of the equipment. This transformer is usually installed in the power unit and is responsible for providing reliable electrical isolation and multiple outputs.
2、 Technical parameters
Input voltage: Typically 208VAC, 220VAC, or 240VAC (depending on specific equipment and regional standards)
Output voltage: Multi channel output, commonly including 24VAC, 12VAC, ± 15VAC, etc. The specific voltage level is configured according to the equipment requirements
Power capacity: typically tens to hundreds of VA, meeting the power supply needs of multiple modules
Frequency: 50Hz/60Hz compatible
Insulation grade: Industrial grade insulation, in compliance with electrical safety standards
Installation method: panel or base plate installation, with bolt fixing holes
Structural features: Closed iron core design, with good electromagnetic shielding effect
Work environment: Suitable for high temperature, high humidity, and electromagnetic interference conditions in semiconductor manufacturing environment
3、 Application scenarios
Provide stable voltage and current for control modules, drivers, sensors, and actuators of Gasonics plasma cleaning and ashing equipment
Electrical isolation to prevent fluctuations in the power grid from affecting internal signals and control accuracy of equipment
Ensure the normal operation of temperature control module, valve control module, display module, etc. in the equipment
Support multiple power supply requirements for devices and achieve system level power distribution

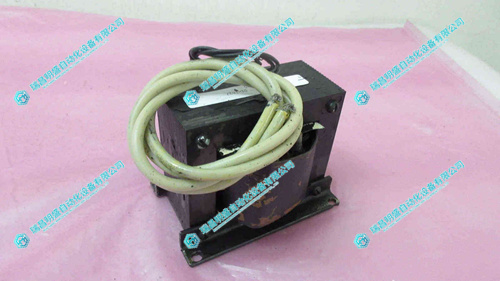

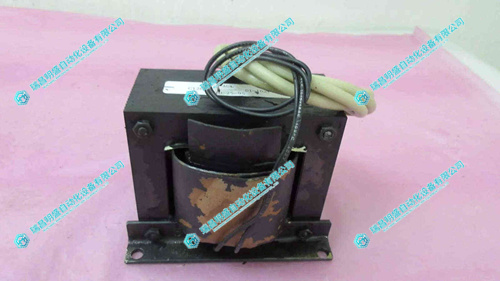

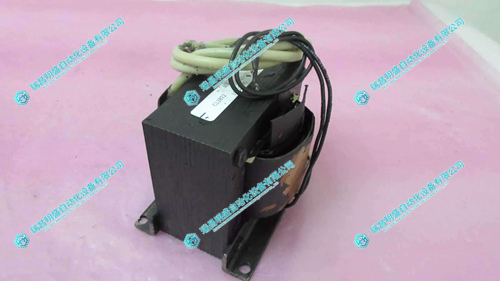

2.產 品 展 示
