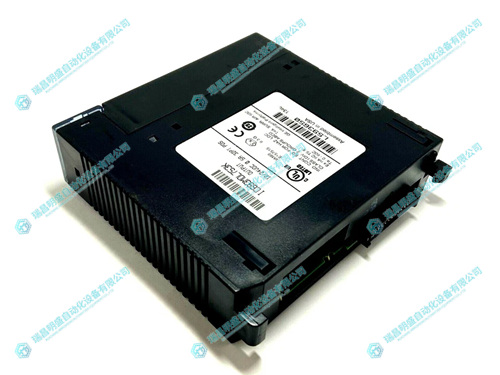

GE IC693MDL753K 輸出模塊
1.產 品 資 料 介 紹：
中文資料：
基本信息
型號：IC693MDL753K
品牌：GE Fanuc
系列：Series 90-30 PLC
模塊類型：數字量輸出模塊（DC 輸出）
通道數量：32 點
輸出類型：直流源型輸出（sourcing type）
技術參數
輸出點數：32 點
輸出電壓范圍：5VDC 至 30VDC（標稱 24VDC）
輸出類型：源型（Sourcing，PNP）——模塊提供電流給負載
最大輸出電流：每點 0.5A，整模塊最大 4A
浪涌電流能力：每點支持 1A（持續 10ms）
響應時間：開通和斷開典型為 <0.5ms
輸出保護：短路保護、過載保護、過溫保護
通道分組：4 組，每組 8 點，單獨公共端（COM）
狀態指示：每點配有 LED 指示燈
電氣隔離：每組 8 點之間相互隔離（1500V）
接線說明（文字描述）
模塊提供正電壓（+V）給負載，負載的另一端接公共端（COM）。
每 8 點為一組，每組一個獨立公共端，可與系統負極或控制接地相連。
推薦使用外部 24VDC 電源，連接到模塊的 V+ 輸入端。
連接時應注意負載的電流不能超過單點或整組最大電流限制。
使用注意事項
源型輸出模塊（PNP）：模塊提供電源給負載，不適用于需要 NPN（Sink）輸入的設備。
注意每點電流限制為 0.5A，避免過流燒毀。
整體最大輸出電流 4A，合理分配負載。
若發生短路，模塊內部保護會切斷輸出，但建議在外部添加保險絲。
接線時區分每組公共端（COM），避免誤接或跨組短路。
英文資料：
Basic information
Model: IC693MDL753K
Brand: GE Fanuc
Series: Series 90-30 PLC
Module type: Digital output module (DC output)
Number of channels: 32 points
Output type: DC source output (sourcing type)
Technical Parameter
Output points: 32 points
Output voltage range: 5VDC to 30VDC (nominal 24VDC)
Output type: Sourcing (PNP) - the module provides current to the load
Maximum output current: 0.5A per point, maximum 4A for the entire module
Surge current capability: Supports 1A per point (continuous for 10ms)
Response time: typically<0.5ms for activation and disconnection
Output protection: Short circuit protection, overload protection, over temperature protection
Channel grouping: 4 groups, 8 points per group, separate common end (COM)
Status indication: Each point is equipped with LED indicator lights
Electrical isolation: Each group of 8 points is isolated from each other (1500V)
Wiring instructions (textual description)
The module provides a positive voltage (+V) to the load, with the other end of the load connected to the common terminal (COM).
Every 8 o'clock is a group, each with an independent common terminal that can be connected to the negative terminal of the system or the control ground.
Recommend using an external 24VDC power supply connected to the V+input of the module.
When connecting, it should be noted that the current of the load cannot exceed the maximum current limit of a single point or the entire group.
Precautions for use
Source Output Module (PNP): The module provides power to the load and is not suitable for devices that require NPN (Sink) input.
Note that the current limit at each point is 0.5A to avoid overcurrent burnout.
The overall maximum output current is 4A, and the load is distributed reasonably.
If a short circuit occurs, the internal protection of the module will cut off the output, but it is recommended to add a fuse externally.
The wiring time is divided into groups of common terminals (COM) to avoid misconnection or cross group short circuits.
