GE   193X701ACG01電源模塊

1.產 品 資 料 介 紹：

中文資料：

GE 193X701ACG01 電源模塊 技術說明

產品型號：193X701ACG01
產品名稱：電源模塊（Power Supply Module）
所屬系列：GE 193X 系列工業控制系統組件
制造商：General Electric (GE)

產品概述

GE 193X701ACG01 是用于 GE Mark 系列控制系統中的專用電源模塊，主要為控制邏輯板、驅動板、接口板等提供穩定的工作電壓。該模塊具有良好的負載調節特性與短路保護機制，適用于對電壓穩定性和供電可靠性要求較高的工業自動化場合。

技術參數

• 輸入電壓：85–264V AC，50/60Hz

• 輸出電壓：±15V DC、+5V DC（可根據系統需求配置）

• 輸出功率：最高 100W（視負載情況）

• 輸出精度：±2% 穩壓精度

• 冷卻方式：自然散熱或輔助風冷

• 連接方式：193X 標準邊緣金手指插接

• 工作溫度：-10°C ~ +60°C

• 尺寸標準：插卡式設計，適用于 GE Mark 系列主控機架

產品特點

• 多路穩定電壓輸出：支持同時提供多組直流輸出，適配多板卡供電

• 過流與短路保護：具備輸出端自恢復型保護，提升系統運行安全性

• 高穩定性輸出：采用高質量濾波與穩壓設計，抑制電源紋波干擾

• 易維護設計：模塊化結構，插拔便捷，便于故障定位與更換

• 兼容性強：可直接替代多種 GE 193X 系列電源卡

英文資料：

Technical Description of GE 193X701ACG01 Power Module

Product model: 193X701ACG01

Product Name: Power Supply Module

Series: GE 193X Series Industrial Control System Components

manufacturer: General Electric (GE)

product overview

GE 193X701ACG01 is a dedicated power module used in GE Mark series control systems, mainly providing stable operating voltage for control logic boards, driver boards, interface boards, etc. This module has good load regulation characteristics and short-circuit protection mechanism, and is suitable for industrial automation applications that require high voltage stability and power supply reliability.

Technical Parameter

Input voltage: 85-264V AC, 50/60Hz

Output voltage: ± 15V DC+ 5V DC (configurable according to system requirements)

Output power: up to 100W (depending on load conditions)

Output accuracy: ± 2% voltage stabilization accuracy

Cooling method: natural heat dissipation or auxiliary air cooling

Connection method: 193X standard edge gold finger plug

Working temperature:- 10°C ~ +60°C

Size standard: Plug in card design, suitable for GE Mark series main control rack

Product Features

Multi channel stable voltage output: supports providing multiple sets of DC outputs simultaneously, compatible with multiple board power supplies

Overcurrent and short circuit protection: equipped with self recovery protection at the output end, enhancing the safety of system operation

High stability output: adopting high-quality filtering and voltage regulation design to suppress power ripple interference

Easy to maintain design: modular structure, easy to plug and unplug, convenient for fault location and replacement

Strong compatibility: can directly ｒｅｐｌａｃｅ multiple GE 193X series power cards

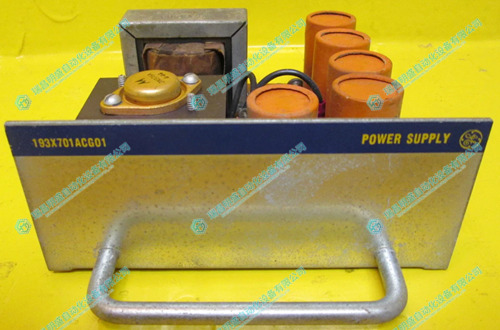

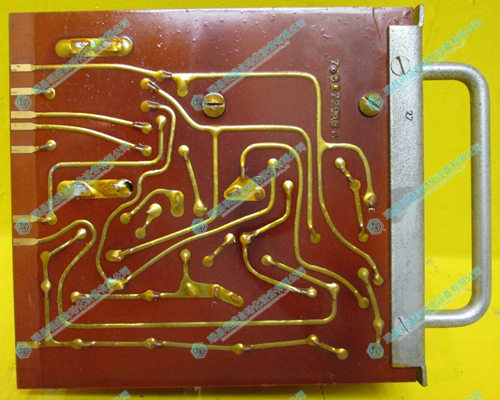

2.產      品      展      示
