GE 193X528ACG01接口卡
1.產 品 資 料 介 紹：
中文資料：
產品名稱：接口卡（Interface Card）
產品型號：193X528ACG01
制造商：General Electric (GE)
所屬系列：GE 193X 系列 工業控制系統模塊
產品描述
GE 193X528ACG01 接口卡是 GE 193X 系列控制系統的一部分，用于實現工業自動化系統中主控制器與外部設備（如傳感器、執行器和外圍設備）之間的信號轉換和適配。它能夠處理不同類型的信號（例如模擬和數字信號），并提供可靠的電氣連接與轉換功能。
此接口卡支持多種標準的工業控制信號，可與其他 GE 系列組件兼容使用，廣泛應用于工業自動化系統中，確保信號的穩定和系統的可靠運行。
主要功能特性
信號轉換與適配：提供不同類型信號的輸入和輸出支持，包括模擬和數字信號的轉換，確保設備間的無縫連接
輸入輸出接口：支持多種輸入和輸出通道，用于處理模擬信號和數字信號
電氣隔離：內置電氣隔離保護，避免干擾和噪聲影響，保證信號傳輸?shù)臏?zhǔn)確性
高可靠性：設計上具有抗電磁干擾（EMI）和電氣噪聲的能力，確保設備長期穩定運行
緊湊設計：采用模塊化插卡式設計，便于與其他 GE 控制系統組件安裝和集成
技術規格參數
| 參數名稱 | 參數說明 |
|---|---|
| 接口類型 | 模擬信號、數字信號輸入/輸出 |
| 輸入通道數 | 8 路模擬輸入，8 路數字輸入（標準配置） |
| 輸出通道數 | 8 路模擬輸出，8 路數字輸出（標準配置） |
| 輸入電壓范圍 | 5V、12V、24V DC（支持多種工業設備） |
| 輸出電壓范圍 | 5V、12V、24V DC（適配連接設備需求） |
| 信號隔離方式 | 內置電氣隔離設計，減少干擾與噪聲影響 |
| 工作溫度范圍 | 0°C 至 70°C |
| 電流承載能力 | 每通道最大 50mA（數字接口） |
| 冷卻方式 | 自然對流冷卻 |
| 安裝方式 | 插卡式設計，標準金手指接口 |
英文資料：
Product Name: Interface Card
Product model: 193X528ACG01
manufacturer: General Electric (GE)
Series: GE 193X Series Industrial Control System Module
product description
The GE 193X528ACG01 interface card is part of the GE 193X series control system, used to achieve signal conversion and adaptation between the main controller and external devices (such as sensors, actuators, and peripheral devices) in industrial automation systems. It can handle different types of signals (such as analog and digital signals) and provide reliable electrical connections and conversion functions.
This interface card supports multiple standard industrial control signals and is compatible with other GE series components. It is widely used in industrial automation systems to ensure stable signals and reliable system operation.
Main functional features
Signal Conversion and Adaptation: Provides input and output support for different types of signals, including the conversion of analog and digital signals, ensuring seamless connection between devices
Input/Output Interface: Supports multiple input and output channels for processing analog and digital signals
Electrical isolation: Built in electrical isolation protection to avoid interference and noise effects, ensuring the accuracy of signal transmission
High reliability: Designed with the ability to resist electromagnetic interference (EMI) and electrical noise, ensuring long-term stable operation of the equipment
Compact design: adopting modular plug-in card design, easy to install and integrate with other GE control system components
Technical specifications and parameters
Parameter Name Parameter Description
Interface type: Analog signal, digital signal input/output
8 analog inputs and 8 digital inputs (standard configuration)
Number of output channels: 8 analog outputs, 8 digital outputs (standard configuration)
Input voltage range 5V, 12V, 24V DC (supports various industrial equipment)
Output voltage range 5V, 12V, 24V DC (adapted to connect device requirements)
The signal isolation method is designed with built-in electrical isolation to reduce interference and noise effects
Working temperature range: 0 ° C to 70 ° C
Current carrying capacity: maximum 50mA per channel (digital interface)
Cooling method: natural convection cooling
Installation method: card insertion design, standard gold finger interface

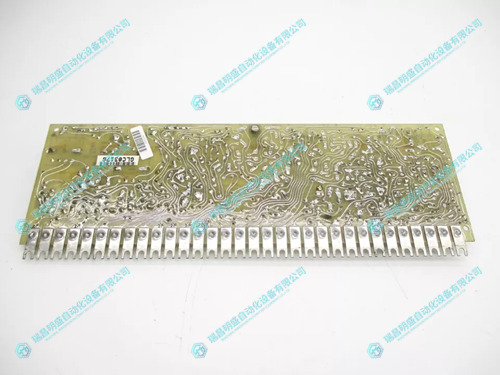

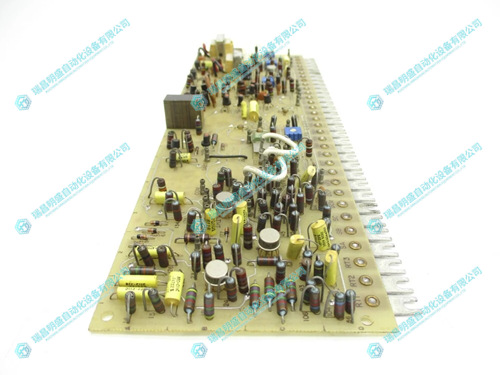

2.產 品 展 示
