GE   193X528ADG-01電路板

1.產 品 資 料 介 紹：

中文資料：

GE 193X528ADG-01 電路板是 GE 193X 系列自動化控制系統中的一個關鍵模塊，負責提供復雜的信號處理與控制功能。該電路板集成了多個控制、接口和處理單元，廣泛應用于自動化系統中進行信號轉換、數據傳輸及系統控制。它在工業自動化、能源管理、生產線控制等領域中發揮著重要作用。

主要功能特性

• 多功能電路設計：集成多種電路功能，包括信號處理、控制邏輯處理、接口適配等，能夠適應多種工業控制需求

• 高精度信號處理：提供高精度的模擬和數字信號處理能力，確保數據傳輸?shù)臏?zhǔn)確性與可靠性

• 模塊化設計：采用模塊化設計，易于與其他控制系統組件集成或替換

• 電氣隔離與保護：內置電氣隔離設計，有效減少外部電磁干擾和噪聲對系統的影響

• 靈活適配性：適配多種電壓、電流和信號格式，兼容不同種類的外圍設備

技術規格參數

應用領域

• 工業自動化控制系統：該電路板用于連接主控制器與外部設備，通過信號處理和轉換，確保系統穩定運行

• 能源管理系統：在能源生產和分配系統中，用于實現精準的電氣控制和負載調節

• 生產線自動化：用于生產線中的信號處理、數據采集與控制任務，確保設備與控制系統之間的協調性

• 工業控制系統集成：作為控制系統的一部分，該電路板可與其他GE或第三方設備協同工作，實現高效的自動化控制功能

英文資料：

The GE 193X528ADG-01 circuit board is a key module in the GE 193X series automation control system, responsible for providing complex signal processing and control functions. This circuit board integrates multiple control, interface, and processing units, and is widely used in automation systems for signal conversion, data transmission, and system control. It plays an important role in fields such as industrial automation, energy management, and production line control.

Main functional features

Multi functional circuit design: integrating multiple circuit functions, including signal processing, control logic processing, interface adaptation, etc., to adapt to various industrial control needs

High precision signal processing: providing high-precision analog and digital signal processing capabilities to ensure the accuracy and reliability of data transmission

Modular design: adopting modular design, easy to integrate or ｒｅｐｌａｃｅ with other control system components

Electrical isolation and protection: Built in electrical isolation design effectively reduces the impact of external electromagnetic interference and noise on the system

Flexible adaptability: adaptable to multiple voltage, current, and signal formats, compatible with different types of peripheral devices

Technical specifications and parameters

Parameter Name Parameter Description

Input/output interface for analog and digital signal input/output

Input voltage range 5V, 12V, 24V DC

Output voltage range 5V, 12V, 24V DC

The signal isolation method is designed with built-in electrical isolation to reduce interference and noise effects

Working temperature range: 0 ° C to 70 ° C

Current carrying capacity: maximum 50mA per channel (digital interface)

Installation method: Standard plug-in card design

Size based on specific module design specifications

Cooling method: natural convection cooling

application area

Industrial automation control system: This circuit board is used to connect the main controller with external devices, ensuring stable system operation through signal processing and conversion

Energy management system: used in energy production and distribution systems to achieve precise electrical control and load regulation

Production line automation: used for signal processing, data acquisition, and control tasks in the production line, ensuring coordination between equipment and control systems

Industrial control system integration: As part of the control system, this circuit board can work in conjunction with other GE or third-party devices to achieve efficient automation control functions

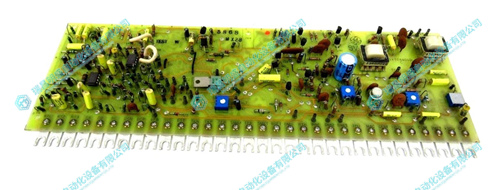

2.產      品      展      示
