GE 193X526AAG01電源供應板
1.產 品 資 料 介 紹：
中文資料：
產品名稱：電源供應板（Power Supply Board）
產品型號：193X526AAG01
制造商：General Electric (GE)
系列歸屬：193X 系列工業控制系統組件
產品功能
GE 193X526AAG01 是用于 GE 193X 控制系統中的 穩定電源供應板卡，其主要作用是為整個控制系統或子系統中的模塊提供所需的直流穩壓電源，保證電路正常、穩定運行。
主要特性
多路輸出：支持 ±15V、+5V 等多種電壓輸出
高穩定性：內置穩壓芯片與濾波電路，提供低紋波、低噪聲電壓
過流保護：具備基礎電流限制和短路保護功能
熱保護設計：部分版本具備過溫保護，延長使用壽命
插拔式結構：便于更換維護，支持 GE 控制框架中的標準插槽
技術規格參數（典型）
| 參數 | 描述 |
|---|---|
| 輸入電壓 | AC 115V / 230V（或系統變壓器提供） |
| 輸出電壓 | +5V, ±15V DC（典型） |
| 輸出電流 | 依負載情況，最大約 3~5A（各路電壓） |
| 穩定度 | ≤±1% 負載調整率 |
| 紋波噪聲 | ≤50mVp-p（+5V） |
| 保護功能 | 過流、短路、過熱保護 |
| 冷卻方式 | 自然風冷或輔助風冷（依系統） |
| PCB形式 | 多層 PCB，帶濾波、電源管理及穩壓器件 |
英文資料：
Product Name: Power Supply Board
Product model: 193X526AAG01
manufacturer: General Electric (GE)
Series affiliation: 193X series industrial control system components
PRODUCT FUNCTION
GE 193X526AAG01 is a stable power supply board used in the GE 193X control system. Its main function is to provide the required DC regulated power supply for the modules in the entire control system or subsystem, ensuring the normal and stable operation of the circuit.
Main characteristics
Multi channel output: supports ± 15V+ 5V and other voltage outputs
High stability: Built in voltage regulator chip and filtering circuit, providing low ripple and low noise voltage
Overcurrent protection: equipped with basic current limiting and short-circuit protection functions
Thermal protection design: Some versions have over temperature protection to extend their service life
Plug in structure: easy to ｒｅｐｌａｃｅ and maintain, supports standard slots in GE control framework
Technical specification parameters (typical)
Parameter description
Input voltage AC 115V/230V (or provided by system transformer)
Output voltage+5V, ± 15V DC (typical)
The output current varies depending on the load condition, with a maximum of approximately 3~5A (voltage of each circuit)
Stability ≤ ± 1% load adjustment rate
Ripple noise ≤ 50mVp-p (+5V)
Protection functions include overcurrent, short circuit, and overheating protection
Cooling method: natural air cooling or auxiliary air cooling (depending on the system)
PCB form: multi-layer PCB with filtering, power management, and voltage stabilizing devices

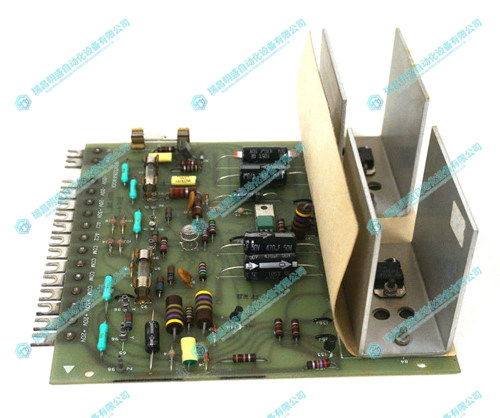

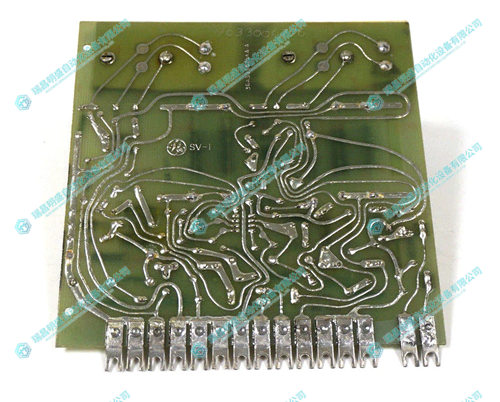

2.產 品 展 示
