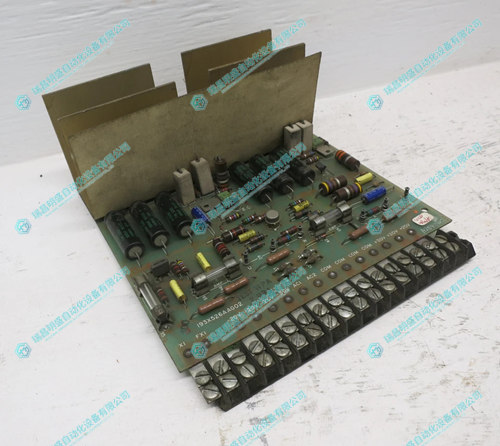

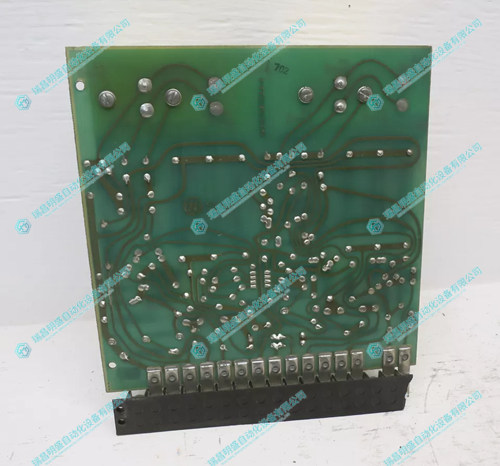

GE 193X526AAG02直流驅動電源板
1.產 品 資 料 介 紹：
中文資料：
產品名稱：直流驅動電源板（DC Drive Power Supply Board）
產品型號：193X526AAG02
制造商：General Electric (GE)
系列歸屬：193X 工業控制系統系列
產品描述
GE 193X526AAG02 是 193X 控制系統中一款用于 直流驅動供電 的板卡，主要為伺服控制器、速度調節模塊、邏輯控制模塊等提供穩定的直流電源。它通常部署于 DC 驅動系統 內部，負責電源轉換、穩壓和分配，確?？刂葡到y(tǒng)的穩定運行。
關鍵功能
提供多路穩定的 DC 輸出電壓（如 ±15V、+5V）
用于支持 DC 驅動板、速度控制板、邏輯處理板等
內置電壓穩壓器、整流器與濾波器
集成過流、短路保護電路，提升系統穩定性
插卡式設計，方便安裝、更換與系統維護
技術規格參數
| 參數名稱 | 典型數值 |
|---|---|
| 輸入電壓 | 通常為 115V / 230V AC（由系統母線供電） |
| 輸出電壓 | +5V、±15V DC（常見規格） |
| 輸出電流容量 | 依路數而定，典型為 2～5A |
| 負載調整率 | ≤ ±1%（滿載與輕載切換時） |
| 紋波噪聲 | ≤50mVp-p（5V輸出） |
| 冷卻方式 | 自然風冷 / 外部風扇輔助 |
| 結構形式 | 插拔式多層 PCB，帶金手指接口 |
| 保護功能 | 過壓、過流、過溫、短路保護 |
應用場景
應用于 GE 的 DC 馬達驅動系統
為伺服控制器、調速器、調節器供電
適用于大型工業自動化控制平臺
可用于 GE Mark I/II/IV 系統的電源升級或更換
兼容與替代建議
推薦替代型號：193X526AAG01（注意電壓電流規格是否匹配）
替代時需嚴格核對：輸出電壓、電流能力、插槽兼容性、電氣保護特性
若系統升級至現代 PLC 或 DCS 架構，需使用專用 DC 電源模塊并配轉換接口
英文資料：
Product Name: DC Drive Power Supply Board
Product model: 193X526AAG02
manufacturer: General Electric (GE)
Series affiliation: 193X Industrial Control System Series
product description
GE 193X526AAG02 is a board used for DC drive power supply in the 193X control system, mainly providing stable DC power for servo controllers, speed regulation modules, logic control modules, etc. It is usually deployed within DC drive systems, responsible for power conversion, voltage regulation, and distribution to ensure the stable operation of the control system.
Key Function
Provide multiple stable DC output voltages (such as ± 15V,+5V)
Used to support DC driver boards, speed control boards, logic processing boards, etc
Built in voltage regulator, rectifier, and filter
Integrate overcurrent and short-circuit protection circuits to enhance system stability
Plug in card design, convenient for installation, replacement, and system maintenance
Technical specifications and parameters
Parameter Name Typical Value
The input voltage is usually 115V/230V AC (powered by the system bus)
Output voltage+5V, ± 15V DC (common specifications)
The output current capacity depends on the number of circuits, typically ranging from 2 to 5A
Load adjustment rate ≤± 1% (when switching between full load and light load)
Ripple noise ≤ 50mVp-p (5V output)
Cooling method: natural air cooling/external fan assistance
Structural form: Plug in multi-layer PCB with gold finger interface
Protection functions include overvoltage, overcurrent, overtemperature, and short-circuit protection
Application scenarios
DC Motor Drive System Applied to GE
Power supply for servo controllers, speed controllers, and regulators
Suitable for large-scale industrial automation control platforms
Can be used for power upgrade or replacement of GE Mark I/II/IV systems
Compatibility and Alternative Suggestions
Recommended alternative model: 193X526AAG01 (pay attention to whether the voltage and current specifications match)
Strict verification is required when replacing: output voltage, current capability, slot compatibility, electrical protection characteristics
If the system is upgraded to a modern PLC or DCS architecture, a dedicated DC power module with a conversion interface is required
