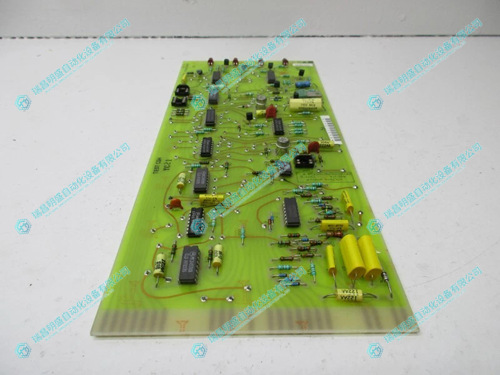

GE 193X476AEG01變頻板
1.產 品 資 料 介 紹：
中文資料：
產品信息
產品型號：193X476AEG01
產品名稱：變頻板 / 頻率控制板
制造商：General Electric (GE)
產品系列：193X 控制系統系列
功能描述
GE 193X476AEG01 是用于 GE 193X 控制系統中的一塊變頻控制模塊，主要負責將系統接收到的控制信號轉換為變頻輸出，用于控制電動機的轉速、頻率或與系統頻率同步運行。該模塊常用于驅動控制和精密頻率調節系統。
主要功能
將輸入信號轉換為可調頻率輸出
控制電動機啟動、加速、減速、停機過程
實現頻率閉環控制（與反饋板卡配合）
提供過流、過壓、頻率越限保護功能
與其他 193X 系列板卡協同使用（如調節器板、邏輯板）
技術參數（典型值）
供電電壓：±15V DC 或 +5V DC（系統主電源供電）
輸出頻率：0 ～ 400Hz（具體視系統設置）
輸入類型：模擬控制信號或數字觸發信號
安裝方式：插卡式，適用于 GE 193X 標準控制框架
環境溫度范圍：0 ～ 60°C
板載元件：包括頻率發生器、功率晶體管、控制邏輯電路、濾波電容等
英文資料：
PRODUCT INFORMATION
Product model: 193X476AEG01
Product Name: Variable Frequency Board/Frequency Control Board
manufacturer: General Electric (GE)
Product Series: 193X Control System Series
Function Description
GE 193X476AEG01 is a variable frequency control module used in the GE 193X control system. It is mainly responsible for converting the control signals received by the system into variable frequency outputs, which are used to control the speed, frequency, or synchronous operation of the motor with the system frequency. This module is commonly used in drive control and precision frequency regulation systems.
major function
Convert input signal to adjustable frequency output
Control the process of starting, accelerating, decelerating, and stopping the electric motor
Implement frequency closed-loop control (in conjunction with feedback board)
Provide overcurrent, overvoltage, and frequency limit protection functions
Used in conjunction with other 193X series cards (such as regulator board, logic board)
Technical parameters (typical values)
Supply voltage: ± 15V DC or+5V DC (supplied by the main power supply of the system)
Output frequency: 0-400Hz (depending on system settings)
Input type: Analog control signal or digital trigger signal
Installation method: Plug in card, suitable for GE 193X standard control framework
Environmental temperature range: 0-60 ° C
Onboard components: including frequency generator, power transistor, control logic circuit, filtering capacitor, etc

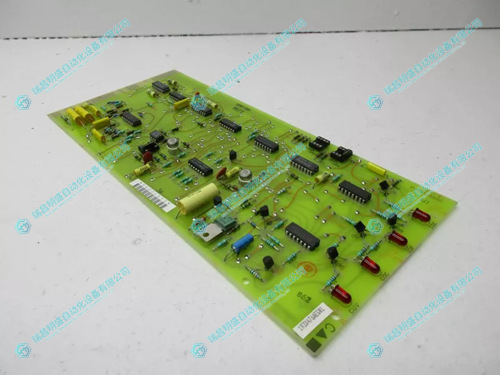

2.產 品 展 示
