GE   193X369ACG01接口模塊

1.產 品 資 料 介 紹：

中文資料：

GE 193X369ACG01 接口模塊（Interface Module） 是 GE 193X 系列工業自動化系統中的一款關鍵通信與信號轉換部件，常用于大型工業控制系統中實現不同模塊、外部設備之間的信號接入與隔離。

一、產品概述

二、核心功能

1. 多通道信號接入： 提供多個輸入輸出通道，實現信號的集中接入。

2. 信號隔離： 實現控制回路與外部設備之間的電氣隔離，增強系統安全性。

3. 信號轉換： 支持模擬量與數字量的相互轉換，適配不同模塊。

4. 系統通信接口： 可作為上位系統與子模塊間的中間通信橋梁。

5. 兼容性支持： 與 GE 控制板如驅動板、調節板、功率模塊等實現無縫協作。

三、典型技術參數（參考）

• 輸入信號類型： 模擬信號、電壓/電流型控制信號

• 輸出信號類型： 電壓/電流信號、數字量信號

• 絕緣強度： ≥1500V AC，提升系統抗干擾與安全性能

• 通道數量： 多路輸入/輸出接口，支持分通道處理

• 安裝方式： 插拔式卡件，便于系統集成與維護

• 工作溫度范圍： -10°C 至 +60°C，適用于工業環境

四、應用領域

• 發電機與變壓器保護系統：提供多通道接口信號采集與分發

• DCS/PLC系統：作為中繼接口連接外部設備與主控系統

• 自動化產線控制：處理傳感器與執行器間的信號轉換與隔離

• 石化、電力、冶金等行業的工業控制系統

五、產品特點

• 與 GE 193X 控制系統模塊高度兼容

• 提高系統接口擴展能力和抗干擾性能

• 支持多種類型信號的快速切換與傳輸

• 穩定性強，適合長周期運行環境

英文資料：

The GE 193X369ACG01 Interface Module is a critical communication and signal conversion component in the GE 193X series industrial automation systems. It is commonly used in large industrial control systems to achieve signal access and isolation between different modules and external devices.

1、 Product Overview

Project Content

Product model 193X369ACG01

Product Name Interface Module

GE 193X Industrial Control Module Series

Functional positioning signal conversion, system interface, isolation protection

2、 Core functions

Multi channel signal access: Provides multiple input and output channels to achieve centralized signal access.

Signal isolation: Implement electrical isolation between control circuits and external devices to enhance system safety.

Signal conversion: supports the mutual conversion between analog and digital quantities, and adapts to different modules.

System communication interface: It can serve as an intermediate communication bridge between the upper system and sub modules.

Compatibility support: Seamless collaboration with GE control boards such as driver boards, adjustment boards, power modules, etc.

3、 Typical technical parameters (reference)

Input signal type: analog signal, voltage/current control signal

Output signal types: voltage/current signal, digital signal

Insulation strength: ≥ 1500V AC to enhance system anti-interference and safety performance

Number of channels: Multiple input/output interfaces, supporting separate channel processing

Installation method: Plug in card for easy system integration and maintenance

Working temperature range:- 10 ° C to+60 ° C, suitable for industrial environments

4、 Application Fields

Generator and Transformer Protection System: Provides multi-channel interface signal acquisition and distribution

DCS/PLC system: serves as a relay interface to connect external devices with the main control system

Automated production line control: processing signal conversion and isolation between sensors and actuators

Industrial control systems for industries such as petrochemicals, power, metallurgy, etc

5、 Product Features

Highly compatible with GE 193X control system modules

Improve the system interface expansion capability and anti-interference performance

Support fast switching and transmission of multiple types of signals

Strong stability, suitable for long-term operating environments

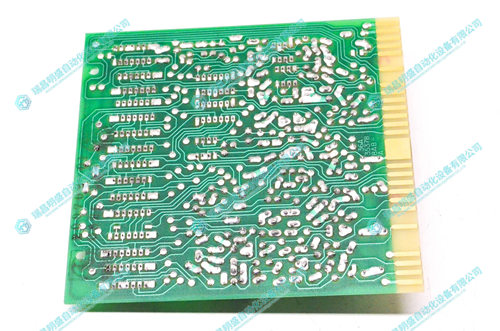

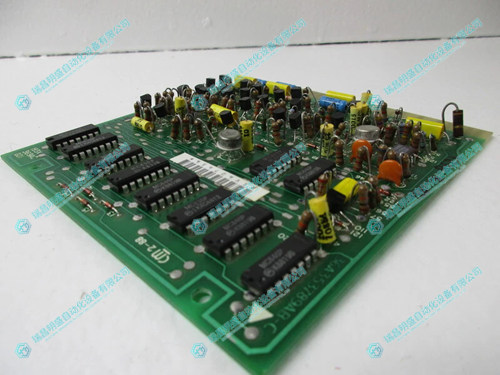

2.產      品      展      示
