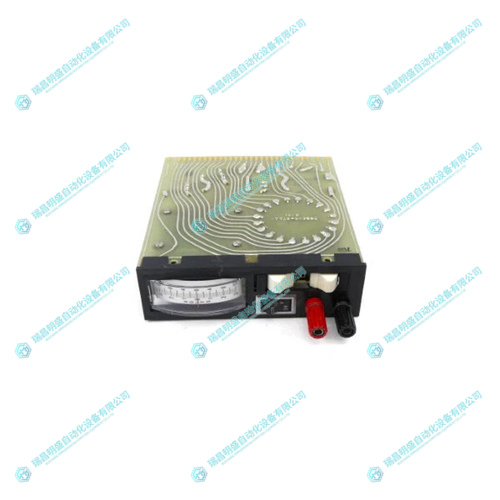

GE 193X295AAG01計量板
1.產 品 資 料 介 紹：
中文資料：
以下是關于 GE 193X295AAG01 計量板（Metering Board） 的簡潔版中文介紹（不含圖案）：
一、產品概述
193X295AAG01 是 GE（General Electric）推出的 193X 系列工業自動化控制系統中的計量板模塊，主要用于工業電氣系統中對電流、電壓、頻率等模擬信號的測量與反饋，廣泛應用于發電、變電、重工業等控制系統中。
二、主要功能
對系統中的電氣參數進行精準計量（如電流、電壓、頻率等）；
將模擬信號轉換為系統可識別的數據；
提供信號隔離與抗干擾功能；
支持與其他控制模塊協同工作，如報警、顯示、保護系統等。
三、技術參數（典型值）
輸入信號：電壓（0–10V、±10V）、電流（4–20mA、±20mA）
精度：±0.5%
輸出形式：模擬電壓、電流信號或數字信號
工作溫度：-10℃ 至 +60℃
安裝方式：插卡式，適用于193X控制機架
四、應用領域
發電廠：用于發電設備狀態的電量測量
變電站：監測母線電壓、電流、功率等參數
工業自動化：監測設備運行狀態與負載平衡
電力系統：參與系統的能量管理與調度決策
五、產品優勢
精度高、響應快、抗干擾強
與GE控制系統高度兼容
使用壽命長，適用于嚴苛工業環境
支持多種信號類型輸入與輸出
英文資料：
The following is a concise Chinese introduction (excluding graphics) about the GE 193X295AAG01 Metering Board:
1、 Product Overview
193X295AAG01 is a metering board module in the 193X series industrial automation control system launched by General Electric. It is mainly used for measuring and feedback analog signals such as current, voltage, and frequency in industrial electrical systems, and is widely used in control systems such as power generation, transformation, and heavy industry.
2、 Main functions
Accurately measure electrical parameters in the system, such as current, voltage, frequency, etc;
Convert analog signals into system recognizable data;
Provide signal isolation and anti-interference functions;
Support collaborative work with other control modules, such as alarm, display, protection systems, etc.
3、 Technical parameters (typical values)
Input signal: voltage (0-10V, ± 10V), current (4-20mA, ± 20mA)
Accuracy: ± 0.5%
Output format: Analog voltage, current signal or digital signal
Working temperature: -10 ℃ to+60 ℃
Installation method: Plug in card, suitable for 193X control rack
4、 Application Fields
Power plant: used for measuring the electrical quantity of power generation equipment status
Substation: Monitoring parameters such as bus voltage, current, and power
Industrial automation: monitoring equipment operation status and load balancing
Power system: Participate in energy management and scheduling decisions of the system
5、 Product advantages
High precision, fast response, strong anti-interference
Highly compatible with GE control system
Long service life, suitable for harsh industrial environments
Support multiple signal types for input and output

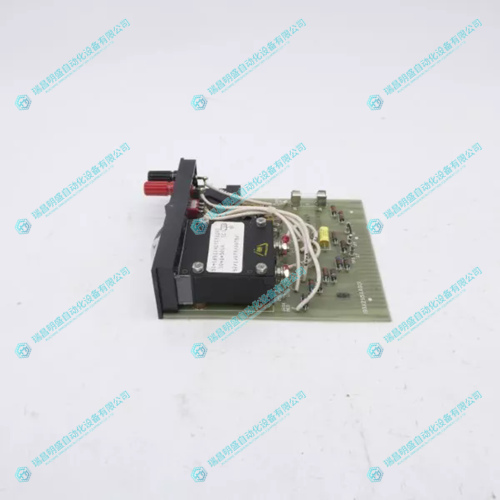

2.產 品 展 示
