GE 193X277ACG01探測器模塊
1.產 品 資 料 介 紹：
中文資料：
GE 193X277ACG02 信號電平探測器（Signal Level Detector Module） 是 GE 193X 系列控制系統中的一款精密模塊，主要功能是用于檢測輸入信號是否達到設定的電平閾值，并據此觸發相應的控制邏輯或報警機制。它廣泛應用于工業自動化、電力系統和驅動控制系統中。
一、基本信息
| 項目 | 內容 |
|---|---|
| 產品型號 | 193X277ACG02 |
| 產品名稱 | 信號電平探測器（Signal Level Detector） |
| 所屬系列 | GE 193X 控制模塊系列 |
| 功能類型 | 電平檢測、閾值判斷、報警觸發 |
| 安裝方式 | 插入式安裝（適配193X機架） |
二、主要功能
| 功能項 | 說明 |
|---|---|
| 電平檢測 | 對輸入模擬或數字信號進行實時監控，判斷是否超出設定電平閾值 |
| 閾值比較 | 模塊內部設置比較電路，將輸入信號與設定參考值進行對比 |
| 報警輸出 | 若輸入信號高于或低于閾值，可通過繼電器輸出、邏輯信號等方式發出警報 |
| 控制觸發 | 可作為條件觸發模塊，激活系統中的其他控制功能模塊 |
| 信號隔離 | 提供電氣隔離，防止外部干擾或電壓波動影響控制系統核心部分 |
英文資料：
The GE 193X277ACG02 Signal Level Detector Module is a precision module in the GE 193X series control system. Its main function is to detect whether the input signal has reached the set level threshold and trigger the corresponding control logic or alarm mechanism accordingly. It is widely used in industrial automation, power systems, and drive control systems.
1、 Basic Information
Project Content
Product model 193X277ACG02
Product Name: Signal Level Detector
GE 193X Control Module Series
Function type: Level detection, threshold judgment, alarm triggering
Installation method: Plug in installation (compatible with 193X rack)
2、 Main functions
Function Item Description
Level detection monitors input analog or digital signals in real-time to determine if they exceed the set level threshold
The threshold comparison module is internally equipped with a comparison circuit that compares the input signal with a set reference value
If the input signal is above or below the threshold, an alarm can be triggered through relay output, logic signal, or other means
Control triggering can serve as a conditional triggering module to activate other control function modules in the system
Signal isolation provides electrical isolation to prevent external interference or voltage fluctuations from affecting the core components of the control system

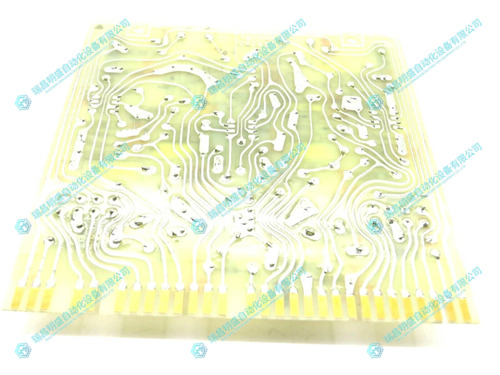

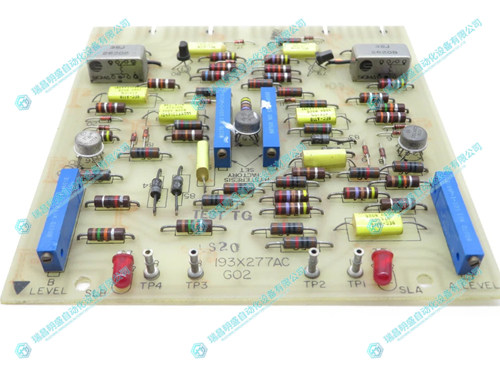

2.產 品 展 示
