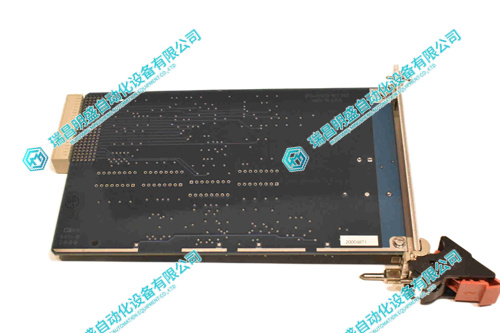

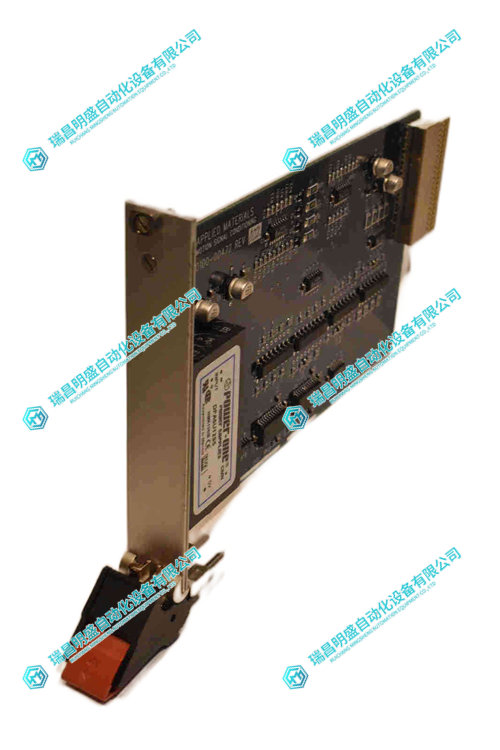

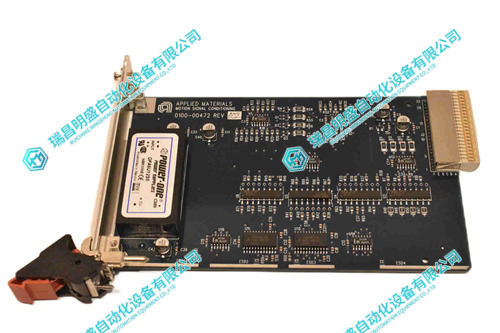

AMAT Applied Materials 0100-00472運動信號調理模塊

1.產 品 資 料 介 紹：

核心規格

功能與價值

• 穩定信號傳輸：光耦隔離 + 硬件濾波，抑制 EMI/RFI，確保運動反饋信號無失真。
• 接口兼容：可適配不同電平的編碼器與驅動器，減少電平轉換電路。
• 高精度位置反饋：優化電路設計，保證編碼器計數精度，支持微米級定位控制。
• 可維護性強：模塊化設計，可在線更換，縮短停機時間。

應用場景

• 晶圓傳輸機器人位置反饋
• 工作臺 / 主軸速度與位置控制
• 精密定位平臺的限位保護與零點信號處理

AMAT Applied Materials 0100-00472運動信號調理模塊 英文資料：

AMAT 0100-00472 is a signal conditioning module used in semiconductor equipment motion control systems, commonly found on platforms such as Centura, Endura, P5000, etc. It is used to connect position/velocity sensors such as encoders, grating rulers, limit switches, and motion controllers or drivers, ensuring stable signals, low noise, and strong anti-interference capabilities.

Core specifications

Project specifications/characteristics remarks

Type: Motion signal conditioning board (PCB card) Non independent chassis module

Input signal incremental encoder (A/B/Z phase, ± 5 V or 24 V), linear/angular grating ruler, limit switch (dry contact/OC gate) supporting differential or single ended input

Output signal isolation differential/single ended signal, compatible with driver/controller interface signal shaping and amplification

Isolation method: Optocoupler isolation (between channels, input-output power supply), anti-interference ≥ 1500 Vrms

Filter characteristics: Low pass/band-pass hardware filtering suppresses PWM noise from 10 kHz to 100 kHz

Supply voltage 24 VDC ± 10%, power consumption approximately 5 W

Suitable for industrial environments with working temperatures ranging from 0 ℃ to 50 ℃

Installation method: Plug in card (matching with backplane connector) size approximately 100mm x 160mm (subject to actual product)

Version Rev. 004 (common) updates iteratively with the device

function and value

Stable signal transmission: optocoupler isolation+hardware filtering, suppressing EMI/RFI, ensuring that the motion feedback signal is distortion free.

Interface compatibility: It can adapt to encoders and drivers of different levels, reducing the need for level conversion circuits.

High precision position feedback: Optimize circuit design to ensure encoder counting accuracy and support micrometer level positioning control.

Strong maintainability: modular design, online replacement, and reduced downtime.

Application scenarios

Position feedback of wafer transfer robot

Workbench/spindle speed and position control

Limit protection and zero signal processing of precision positioning platform

AMAT Applied Materials 0100-00472運動信號調理模塊 產品展示

 產品視頻

3.其他產品

GJR2365700R1010 控制器模塊
GJR2395400R1010模擬輸入模塊
GJR2390200R1010控制卡

4.其他英文產品

ABB IMDSI15 digital current card
ABB FEN-11 interface fen-11 kit
AMAT 0100-76124 Multiplexer switch card
