AMAT Applied Materials 0100-09104接觸器聯鎖板

1.產 品 資 料 介 紹：

產品概述

AMAT 0100-09104 接觸器聯鎖板是 Applied Materials 半導體設備中的關鍵電氣安全和控制模塊。它主要用于管理接觸器（Contactor）之間的聯鎖關系，確保設備電源和控制回路在操作或維護過程中能夠安全斷開或接通。該模塊在設備啟動、停機及緊急保護操作中起到核心作用，是保障設備和操作人員安全的關鍵組件。

技術參數（典型特征）

• 類型：接觸器聯鎖板 / Contactor Interlock Module

• 功能：電氣安全聯鎖、信號管理、狀態反饋

• 接口形式：多通道電氣接口，可連接接觸器及控制系統

• 輸入輸出信號：數字量輸入輸出，用于接收控制信號及輸出狀態信號

• 工作環境：潔凈室兼容，耐高溫、抗振動

• 兼容設備：Applied Materials 各類沉積（CVD/PVD）、刻蝕（Etch）、離子注入及熱處理設備的電源和控制系統

應用場景

1. 設備電源安全管理

   • 控制主接觸器及子系統接觸器的聯鎖操作，防止電源誤操作。

2. 緊急停機保護

   • 在設備發生異?；蚓o急情況下快速斷開電路，保障設備和人員安全。

3. 維護操作安全

   • 在維護或模塊更換過程中，通過聯鎖板確保相關電路安全斷電。

4. 狀態監控與反饋

   • 向主控制器反饋接觸器狀態，支持設備安全邏輯判斷和自動化控制。

AMAT Applied Materials 0100-09104接觸器聯鎖板  英文資料：

Product Overview

The AMAT 0100-09104 contactor interlock board is a critical electrical safety and control module in Applied Materials semiconductor equipment. It is mainly used to manage the interlocking relationship between contactors, ensuring that the equipment power supply and control circuit can be safely disconnected or connected during operation or maintenance. This module plays a core role in equipment startup, shutdown, and emergency protection operations, and is a critical component for ensuring the safety of equipment and operators.

Technical parameters (typical features)

Type: Contactor Interlock Module

Function: Electrical safety interlock, signal management, status feedback

Interface form: Multi channel electrical interface, capable of connecting contactors and control systems

Input/output signal: digital input/output, used to receive control signals and output status signals

Work environment: cleanroom compatible, high temperature resistant, vibration resistant

Compatible devices: Power and control systems for various deposition (CVD/PVD), etching (Etch), ion implantation, and heat treatment equipment of Applied Materials

Application scenarios

Equipment power safety management

Control the interlocking operation of the main contactor and subsystem contactor to prevent power misoperation.

Emergency stop protection

Quickly disconnect the circuit in case of equipment malfunction or emergency, ensuring the safety of equipment and personnel.

Maintain operational safety

During maintenance or module replacement, ensure safe power-off of relevant circuits through interlocking boards.

Status monitoring and feedback

Feedback the status of the contactor to the main controller, supporting equipment safety logic judgment and automation control.

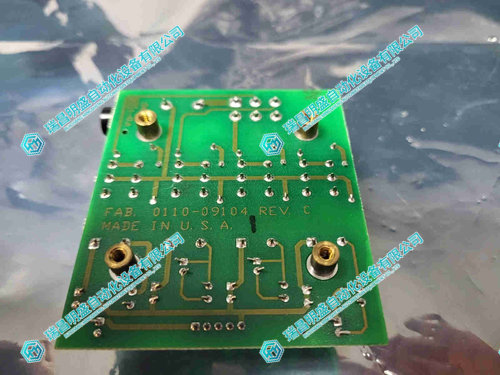

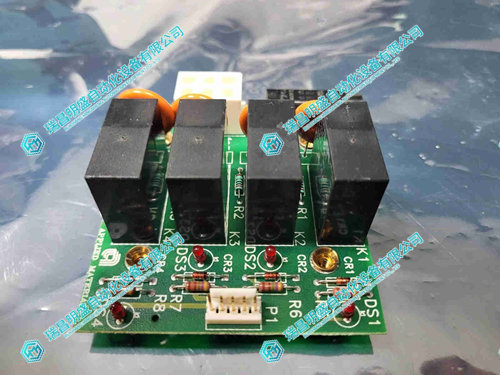

AMAT Applied Materials 0100-09104接觸器聯鎖板 產品展示

 產品視頻
