AB 1783-MS10T

1.產 品 資 料 介 紹：

中文資料：

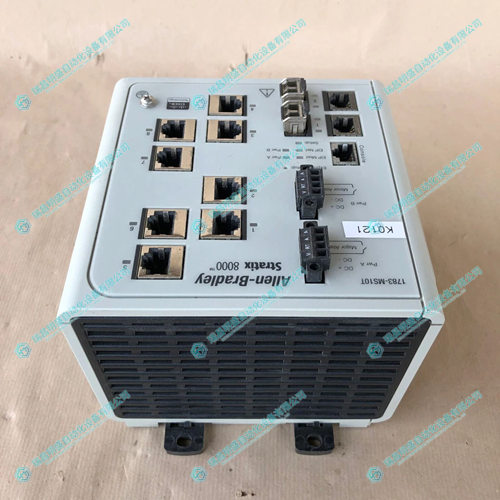

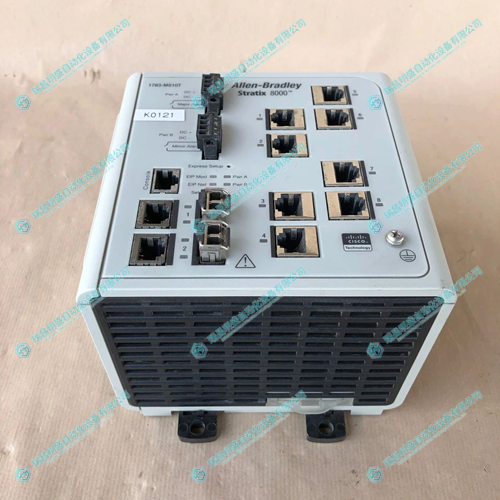

Allen-Bradley 1783-MS10T 是羅克韋爾自動化（Rockwell Automation）旗下 Allen-Bradley 品牌的工業以太網交換機，屬于 Stratix 2000 系列。該交換機專為工業環境設計，用于實現工業以太網設備之間的高速、穩定的數據通信。

二、主要功能

• 端口配置：提供多達 8 個 10/100 Mbps 以太網端口，支持全雙工和半雙工模式。

• 工業設計：結構堅固，適應惡劣的工業環境，包括寬溫范圍、防振動和抗電磁干擾。

• 即插即用：無需復雜配置，支持自動協商和自動MDI/MDIX切換。

• 網絡管理：支持基本的網絡管理功能，如 VLAN（虛擬局域網）、端口鏡像（部分型號）、流控和QoS（服務質量）。

• 高可靠性：具備冗余電源輸入接口，支持快速故障恢復。

三、技術參數

• 端口數量：8 個 10/100 Mbps RJ45 端口

• 傳輸速率：最大 100 Mbps

• 工作溫度：-40°C 至 70°C（工業級）

• 電源輸入：支持冗余電源，24V DC（范圍寬）

• 尺寸與安裝：DIN 導軌安裝，緊湊設計

• 以太網協議支持：IEEE 802.3，IEEE 802.3u，IEEE 802.3x 流控

• MTBF（平均無故障時間）：高可靠性設計，適合連續運行環境

四、應用領域

• 工業自動化網絡通信

• 生產線設備聯網

• 機器人控制系統

• 過程控制網絡

• 智能制造系統

五、使用建議

• 選擇合適的電源和安裝環境，確保通風散熱良好。

• 利用交換機的管理功能優化網絡性能，確保關鍵數據優先傳輸。

• 定期檢查連接狀態，防止端口或線纜故障影響系統穩定。

• 結合Rockwell自動化的其他設備，實現完整的工業網絡解決方案。

英文資料：

The Allen Bradley 1783-MS10T is an industrial Ethernet switch under the Allen Bradley brand of Rockwell Automation, belonging to the Stratix 2000 series. This switch is designed specifically for industrial environments to achieve high-speed and stable data communication between industrial Ethernet devices.

2、 Main functions

Port configuration: Provides up to 8 10/100 Mbps Ethernet ports, supporting full duplex and half duplex modes.

Industrial design: sturdy structure, adaptable to harsh industrial environments, including wide temperature range, anti vibration, and anti electromagnetic interference.

Plug and play: No need for complex configuration, supports automatic negotiation and automatic MDI/MDIX switching.

Network Management: Supports basic network management functions such as VLAN (Virtual Local Area Network), port mirroring (some models), flow control, and QoS (Quality of Service).

High reliability: Equipped with redundant power input interfaces, supporting rapid fault recovery.

3、 Technical parameters

Number of ports: 8 10/100 Mbps RJ45 ports

Transmission rate: Maximum 100 Mbps

Working temperature: -40 ° C to 70 ° C (industrial grade)

Power input: Supports redundant power supply, 24V DC (wide range)

Size and installation: DIN rail installation, compact design

Ethernet protocol support: IEEE 802.3, IEEE 802.3u, IEEE 802.3x flow control

MTBF (Mean Time Between Failures): Designed for high reliability and suitable for continuous operation environments

4、 Application Fields

Industrial automation network communication

Networking of production line equipment

Robot control system

process control network

intelligent manufacturing system

5、 Usage suggestions

Choose a suitable power supply and installation environment to ensure good ventilation and heat dissipation.

Utilize the management function of switches to optimize network performance and ensure priority transmission of critical data.

Regularly check the connection status to prevent port or cable failures from affecting system stability.

Combining other equipment from Rockwell Automation to achieve a complete industrial network solution.
