WOODWARD 8440-2050 發電機組控制器

1.產 品 資 料 介 紹：

中文資料：

WOODWARD 8440-2050 發電機組控制器 是 Woodward 公司推出的一款高性能控制器，屬于 easYgen-3000XT 系列，專為多臺發電機組并網、同步、負載分配等復雜應用設計，適用于柴油機、燃?xì)鈾C等各種發動機驅動的發電機系統。

一、產品定位

Woodward 8440-2050 是一款多功能的發電機控制器，具備集成的同步、并機、負載控制、斷路器控制及通訊功能，廣泛應用于電站、工業應急電源、海上平臺等場合。該型號通常為 easYgen-3500XT-P1 或 easYgen-3500XT-P2 系列中的一個變種。

二、主要功能

1. 同步與并機控制：支持自動同步發電機與電網或其他發電機組；

2. 負載分配：支持多達 32 臺機組并聯運行，具有負載均分功能；

3. 斷路器控制：內置 CB1（發電機側）與 CB2（電網側）斷路器控制邏輯；

4. 自動啟停與引擎管理：集成發動機起動、停止、加速、減速邏輯；

5. 保護功能：具備過壓、欠壓、過頻、欠頻、過流、功率反送等電氣保護；

6. 遠程通信與監控：支持 Modbus TCP/RTU、CANopen、SNMP、RS-485、以太網等；

7. 顯示與人機界面：集成 LCD 顯示屏和按鍵，可本地配置與監控運行狀態；

8. 數據記錄與報警功能：可記錄運行數據和歷史報警事件，便于維護與診斷。

三、技術參數（簡要）

• 電源輸入：8 至 40 VDC

• 交流電壓測量：3 相 277/480 VAC（L-N/L-L）

• 模擬輸入：8 路（電壓/電流型）

• 模擬輸出：4 路（0–20 mA）

• 數字輸入：16 路

• 數字輸出：11 路

• 通訊接口：Ethernet、CAN、USB、RS-232、RS-485

• 支持機組數量：最大 32 臺并機

• 工作溫度：-25°C 至 +70°C

• 防護等級：IP65（前面板）

• 安裝方式：面板嵌入式安裝

英文資料：

WOODWARD 8440-2050 Generator Set Controller is a high-performance controller launched by Woodward, belonging to the easyYgen-3000XT series. It is designed for complex applications such as grid connection, synchronization, and load distribution of multiple generator sets, and is suitable for various engine driven generator systems such as diesel engines and gas engines.

1、 Product positioning

Woodward 8440-2050 is a multifunctional generator controller with integrated synchronization, parallel operation, load control, circuit breaker control, and communication functions. It is widely used in power stations, industrial emergency power supplies, offshore platforms, and other applications. This model is usually a variant of the easyYgen-3500XT-P1 or easyYgen-3500XT-P2 series.

2、 Main functions

Synchronization and parallel control: supports automatic synchronization of generators with the power grid or other generator sets;

Load distribution: Supports parallel operation of up to 32 units, with load sharing function;

Circuit breaker control: Built in CB1 (generator side) and CB2 (grid side) circuit breaker control logic;

Automatic start stop and engine management: integrated engine start stop, acceleration, and deceleration logic;

Protection function: It has electrical protection such as overvoltage, undervoltage, overclocking, underfrequency, overcurrent, and power feedback;

Remote communication and monitoring: Supports Modbus TCP/RTU, CANopen, SNMP, RS-485, Ethernet, etc;

Display and human-machine interface: integrated LCD display screen and buttons, capable of local configuration and monitoring of operating status;

Data recording and alarm function: It can record operational data and historical alarm events for easy maintenance and diagnosis.

3、 Technical parameters (brief)

Power input: 8 to 40 VDC

AC voltage measurement: 3-phase 277/480 VAC (L-N/L-L)

Analog input: 8 channels (voltage/current type)

Analog output: 4 channels (0-20 mA)

Digital input: 16 channels

Digital output: 11 channels

Communication interfaces: Ethernet, CAN, USB, RS-232, RS-485

Number of supported units: up to 32 parallel units

Working temperature: -25 ° C to+70 ° C

Protection level: IP65 (front panel)

Installation method: panel embedded installation

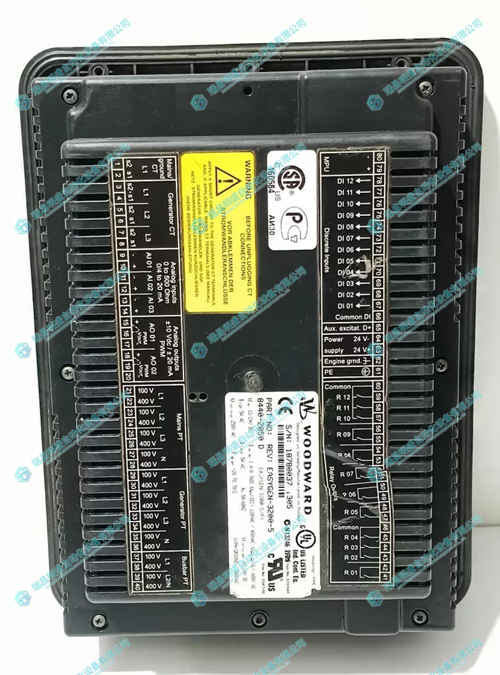

2.產      品      展      示
