GE   193X244ABG03電路板卡

1.產 品 資 料 介 紹：

中文資料：

193X244ABG03 電路板卡（General Electric Circuit Board Card）

產品簡介

193X244ABG03 是 GE（General Electric）193X 系列中的一款功能性電路板卡，主要應用于工業控制系統，作為模擬或數字信號的處理單元。該模塊具備高穩定性、高精度和良好的兼容性，常見于大型工業設備、電力控制系統及過程控制應用中。

主要功能

• 信號處理與轉換：用于模擬/數字信號的接收、濾波、放大或調理。

• 系統擴展能力：提供額外的輸入輸出接口，擴展系統功能模塊。

• 邏輯控制功能：具備部分邏輯運算、比較、門電路處理能力（視具體版本而定）。

• 穩定運行：工業級元件設計，適用于高溫高濕等復雜環境。

• 多模塊協同：與其他193X系列板卡（如隔離模塊、電源模塊）配合使用。

技術參數

• 供電電壓：±15V DC（源自控制機架）

• 信號支持類型：模擬輸入/輸出、數字控制信號

• 安裝結構：193X 標準插卡式結構，便于熱插拔與更換

• 響應速度：< 5ms（根據信號處理路徑不同）

• 工作環境：

  • 溫度范圍：-20°C 至 +70°C

  • 相對濕度：5%～95%，非冷凝

• 接口類型：多針插件連接器，與主控制平臺直接集成

應用場景

• 電廠控制系統（如渦輪控制、勵磁系統）

• 工業自動化生產線

• 化工過程控制系統

• 高可靠性工業控制設備的核心控制板

英文資料：

193X244ABG03 General Electric Circuit Board Card

Product Introduction

193X244ABG03 is a functional circuit board in the GE 193X series, mainly used in industrial control systems as a processing unit for analog or digital signals. This module has high stability, high precision, and good compatibility, and is commonly used in large industrial equipment, power control systems, and process control applications.

major function

Signal processing and conversion: used for receiving, filtering, amplifying, or conditioning analog/digital signals.

System Expansion Capability: Provides additional input and output interfaces to expand system functional modules.

Logic control function: It has the ability to perform partial logic operations, comparisons, and gate circuit processing (depending on the specific version).

Stable operation: Industrial grade component design, suitable for complex environments such as high temperature and high humidity.

Multi module collaboration: Used in conjunction with other 193X series boards such as isolation modules and power modules.

Technical Parameter

Supply voltage: ± 15V DC (from control rack)

Signal support types: analog input/output, digital control signal

Installation structure: 193X standard plug-in card structure, easy to hot plug and ｒｅｐｌａｃｅ

Response speed:< 5ms (depending on the signal processing path)

Work environment:

Temperature range:- 20 ° C to+70 ° C

Relative humidity: 5% to 95%, non condensing

Interface type: Multi pin plug-in connector, directly integrated with the main control platform

Application scenarios

Power plant control system (such as turbine control, excitation system)

Industrial automation production line

Chemical process control system

The core control board of high reliability industrial control equipment

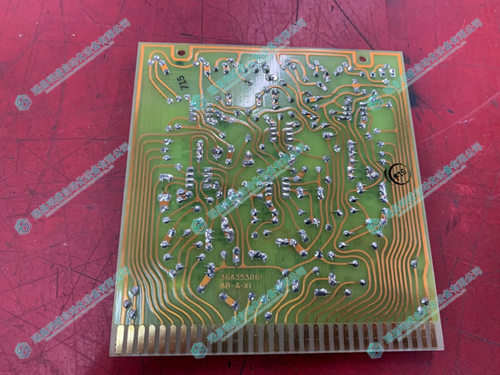

2.產      品      展      示
