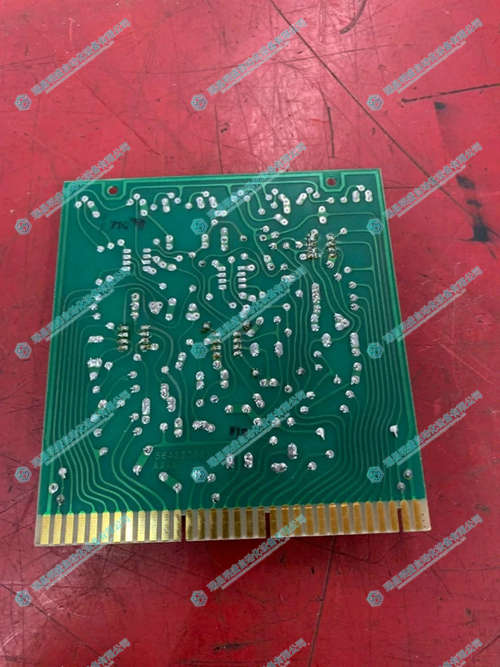

GE   193X241AAG01系統卡模塊

1.產 品 資 料 介 紹：

中文資料：

193X241AAG01 系統卡模塊（System Interface Card Module）

產品簡介

193X241AAG01 是 GE（General Electric）193X 系列控制系統中的關鍵控制與通信接口模塊，通常作為主系統的協調中樞，承擔總線通信、命令傳遞、數據同步和故障管理等核心功能。該模塊具備高度可靠性和抗干擾能力，適用于電力控制、重型工業自動化和過程控制系統中。

主要功能特點

• 中央系統協調：作為主控單元與各子板之間的通信橋梁，實現多板間協調操作。

• 系統監控管理：提供系統狀態匯總、故障上報、初始化控制等管理功能。

• 信號調度與轉換：對輸入輸出信號進行標準化處理，統一各類板卡間通信格式。

• 內置診斷功能：具備自檢邏輯和錯誤檢測功能，提升系統運行穩定性。

• 冗余支持：可作為雙機熱備份系統的一部分，支持高可用性配置。

技術參數

• 工作電壓：±15V DC / ±24V DC（由主機架供電）

• 通訊方式：193X 系列專用系統總線，兼容 TTL 或 RS 標準信號

• 輸入/輸出接口：多通道信號處理接口，適配其他控制板模塊

• 冷卻方式：依賴主機柜通風系統，低熱量產生

• 環境適應性：工作溫度 -20°C 至 +70°C，相對濕度 < 85% 無冷凝

• 安裝方式：標準 193X 插卡式安裝，支持熱插拔（視系統配置而定）

應用場景

• 電廠自動控制系統（DCS）

• 大型機組渦輪控制系統

• 工業驅動與電機控制系統

• 工廠自動化控制中心

• 高可靠性嵌入式系統通信模塊

英文資料：

193X241AAG01 System Interface Card Module

Product Introduction

193X241AAG01 is a key control and communication interface module in the GE (General Electric) 193X series control system, typically serving as the coordination hub of the main system, responsible for core functions such as bus communication, command transmission, data synchronization, and fault management. This module has high reliability and anti-interference capability, suitable for power control, heavy industrial automation, and process control systems.

Main functional features

Central system coordination: As a communication bridge between the main control unit and each sub board, it enables coordinated operations between multiple boards.

System monitoring and management: Provides management functions such as system status summary, fault reporting, and initialization control.

Signal scheduling and conversion: Standardize input and output signals and unify communication formats between various types of boards.

Built in diagnostic function: equipped with self checking logic and error detection function, improving system operation stability.

Redundancy support: Can be used as part of a dual machine hot backup system, supporting high availability configurations.

Technical Parameter

Working voltage: ± 15V DC/± 24V DC (powered by the main frame)

Communication method: 193X series dedicated system bus, compatible with TTL or RS standard signals

Input/output interface: multi-channel signal processing interface, compatible with other control board modules

Cooling method: relying on the ventilation system of the main cabinet, low heat generation

Environmental adaptability: Operating temperature from -20 ° C to+70 ° C, relative humidity<85%, no condensation

Installation method: Standard 193X plug-in card installation, supports hot plugging (depending on system configuration)

Application scenarios

Power Plant Automatic Control System (DCS)

Large scale turbine control system

Industrial Drive and Motor Control System

Factory Automation Control Center

High reliability embedded system communication module
