Gasonics 68-0131驅動器模塊
1.產 品 資 料 介 紹：
產品名稱
Gasonics 68-0131 驅動器模塊
（英文：Driver Module）
一、產品概述
Gasonics 68-0131 是一款應用于 Gasonics 等離子清洗和灰化設備中的 驅動器模塊，主要用于控制電氣執行部件如電磁閥、步進電機、繼電器、熱源或其他動作元件的開關狀態。該模塊接收主控系統發出的控制信號，通過功率輸出驅動外部設備，確保工藝各環節的協同和自動運行。
二、技術參數
模塊類型：數字/模擬驅動器模塊
輸入信號類型：
數字觸發信號（TTL/CMOS）或邏輯控制信號
輸出能力：
可控制 12V / 24V DC 電磁設備或 AC 繼電器（視配置）
控制通道：
單路或多路輸出，具體視模塊配置而定
功率輸出方式：
晶體管開關（MOSFET）或繼電器輸出
電氣隔離：
通常帶有光耦隔離保護主控系統
安裝方式：
卡件式、插拔式結構，便于在設備內模塊化安裝
通信方式：
與主控制卡通過背板總線或點對點連接
供電電源：
通常為 +24V DC 工業電源輸入
英文資料：
product name
Gasonics 68-0131 Driver Module
(English: Driver Module)
1、 Product Overview
Gasonics 68-0131 is a driver module used in Gasonics plasma cleaning and ashing equipment, primarily for controlling the on/off status of electrical actuators such as solenoid valves, stepper motors, relays, heat sources, or other actuating components. This module receives control signals from the main control system and drives external devices through power output to ensure the coordinated and automatic operation of each process link.
2、 Technical parameters
Module Type: Digital/Analog Driver Module
Input signal type:
Digital trigger signal (TTL/CMOS) or logic control signal
Output capability:
Can control 12V/24V DC electromagnetic equipment or AC relays (depending on configuration)
Control channel:
Single or multiple outputs, depending on module configuration
Power output mode:
Transistor switch (MOSFET) or relay output
Electrical isolation:
Usually equipped with optocoupler isolation protection main control system
Installation method:
Card type and plug-in structure, convenient for modular installation inside the device
Communication method:
Connected to the main control card via backplane bus or point-to-point connection
Power supply:
Usually+24V DC industrial power input

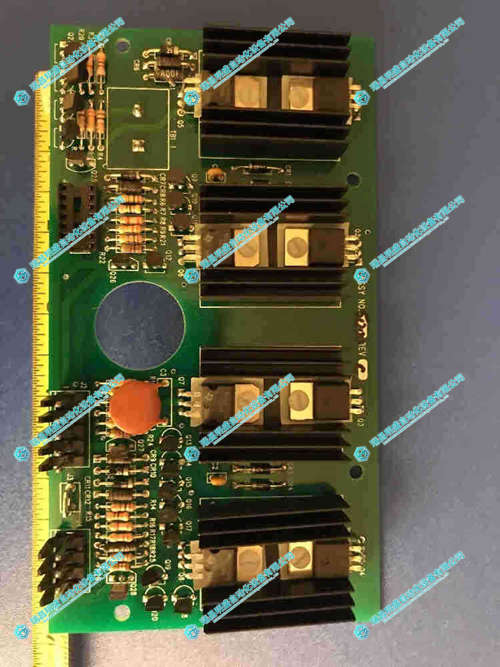

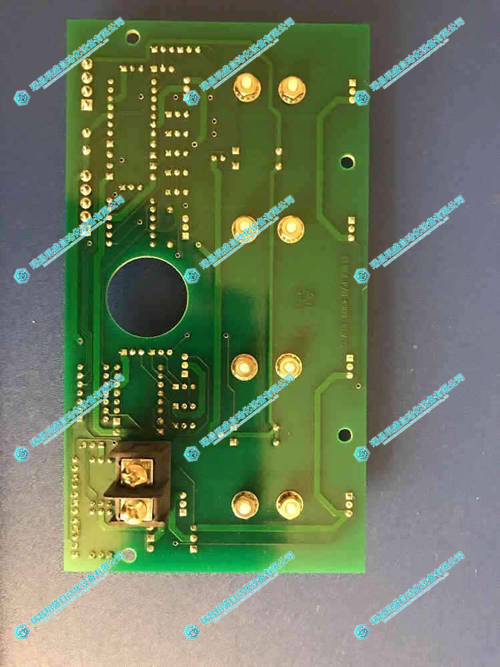

2.產 品 展 示
