GE  193X725ABG01脈沖發生器

1.產 品 資 料 介 紹：

中文資料：

一、產品簡介
GE 193X725ABG01 脈沖發生器是 GE（通用電氣）193X 系列中的一款重要模塊，專為工業自動化、控制系統以及信號處理應用設計。該模塊用于生成精確的脈沖信號，廣泛應用于電機控制、傳感器采集、信號調節等領域。

二、核心功能

1. 精確脈沖生成：能夠產生高精度的脈沖信號，支持多種脈沖頻率和寬度設置，確保信號穩定輸出。

2. 脈沖輸出控制：根據輸入條件或外部信號，調節脈沖輸出的頻率、幅度或脈沖寬度。

3. 信號同步：支持與其他模塊或設備的同步操作，確保各部分協同工作，特別適用于復雜的控制系統中。

4. 高頻脈沖輸出：適合高速控制與檢測應用，脈沖頻率可以達到數百 kHz。

5. 外部觸發功能：支持外部觸發信號輸入，用于控制脈沖發生的時機。

6. 信號處理與調節：內置信號調節電路，能夠對輸出的脈沖信號進行放大、衰減或濾波，滿足不同應用需求。

三、技術參數（典型值）

• 輸入電壓：AC 220V 或 DC 24V（可根據系統需求配置）

• 輸出信號類型：脈沖信號（可調頻率、可調寬度）

• 輸出頻率：從幾 Hz 到幾百 kHz（具體范圍取決于型號配置）

• 輸出波形：方波、脈沖波

• 精度：脈沖頻率誤差 ≤ 0.1%，脈沖寬度誤差 ≤ 0.5%

• 過載保護：內置短路、過電流、過電壓保護電路

• 工作溫度范圍：-10°C ～ +60°C

• 尺寸：符合 193X 系列標準插卡式結構（大約 25 × 15 cm）

四、應用領域

• 電機控制：用于電機驅動系統中的脈沖信號生成，確保電機精確控制。

• 信號處理與調節：為各種工業自動化系統提供精準的時序控制信號。

• 傳感器應用：用于精密傳感器數據采集和信號傳遞。

• 測量與測試設備：在測試和測量系統中提供穩定的信號源，進行設備校準或數據分析。

• 通信系統：可用于調制解調、時序控制等通信系統中的脈沖信號生成。

英文資料：

Brief introduction

The GE 193X725ABG01 pulse generator is an important module in the GE 193X series, designed specifically for industrial automation, control systems, and signal processing applications. This module is used to generate accurate pulse signals and is widely used in fields such as motor control, sensor acquisition, and signal conditioning.

2、 Core functions

Accurate pulse generation: capable of generating high-precision pulse signals, supporting multiple pulse frequency and width settings to ensure stable signal output.

Pulse output control: Adjust the frequency, amplitude, or pulse width of the pulse output based on input conditions or external signals.

Signal synchronization: supports synchronous operation with other modules or devices, ensuring that all parts work together, especially suitable for complex control systems.

High frequency pulse output: suitable for high-speed control and detection applications, with pulse frequencies up to several hundred kHz.

External triggering function: supports external triggering signal input, used to control the timing of pulse occurrence.

Signal processing and adjustment: Equipped with a built-in signal adjustment circuit, it can amplify, attenuate, or filter the output pulse signal to meet different application requirements.

3、 Technical parameters (typical values)

Input voltage: AC 220V or DC 24V (can be configured according to system requirements)

Output signal type: pulse signal (adjustable frequency, adjustable width)

Output frequency: from a few Hz to several hundred kHz (specific range depends on model configuration)

Output waveform: square wave, pulse wave

Accuracy: Pulse frequency error ≤ 0.1%, pulse width error ≤ 0.5%

Overload protection: built-in short circuit, overcurrent, and overvoltage protection circuits

Working temperature range: -10 ° C to+60 ° C

Size: Compliant with the 193X series standard plug-in card structure (approximately 25 × 15 cm)

4、 Application Fields

Motor control: used for generating pulse signals in motor drive systems to ensure precise control of the motor.

Signal processing and regulation: providing precise timing control signals for various industrial automation systems.

Sensor application: Used for precision sensor data acquisition and signal transmission.

Measurement and testing equipment: Provide a stable signal source in testing and measurement systems for equipment calibration or data analysis.

Communication system: can be used for pulse signal generation in communication systems such as modulation and demodulation, timing control, etc.

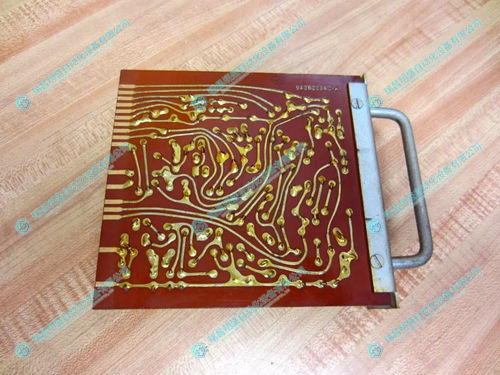

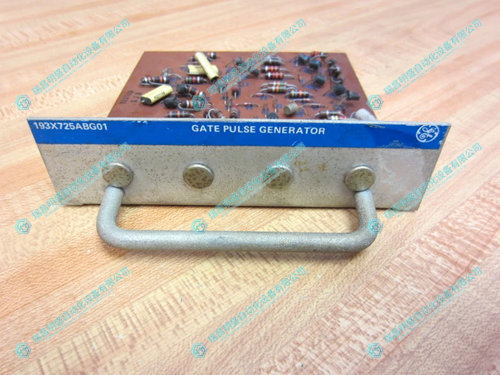

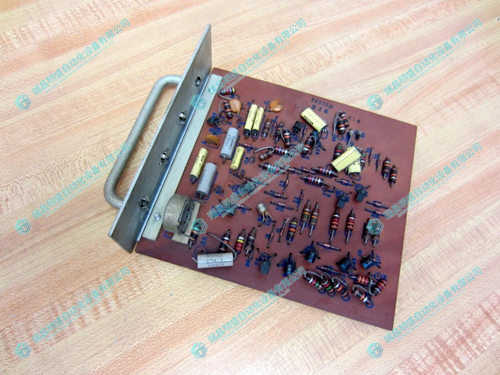

2.產      品      展      示
