Motorola VME-340B 處理器 PCB 卡

1.產 品 資 料 介 紹：

Motorola VME-340B 處理器 PCB 卡解析

一、核心技術參數與硬件架構

1. 處理器與運算性能

• 核心 CPU：搭載 Motorola MC68EC030 或 MC68030 32 位微處理器（二者核心架構一致，MC68EC030 為無浮點協處理器版本，MC68030 支持外接 MC68881/MC68882 浮點協處理器），主頻典型值 16MHz/25MHz（部分版本支持 33MHz），具備 32 位地址總線與 32 位數據總線，可高效處理多任務實時調度與中等復雜度數據運算（如工業控制邏輯、測試數據統計）。
• 協處理擴展：預留浮點協處理器接口，需高精度計算場景（如機床運動軌跡規劃、測試信號波形分析）可外接 MC68882，浮點運算性能提升 5-10 倍，滿足精密控制需求。

2. 內存配置：靈活擴展，兼顧成本與需求

Motorola VME-340B 處理器 PCB 卡 英文資料：

Analysis of Motorola VME-340B Processor PCB Card

The Motorola VME-340B is a compact processor PCB card based on the VMEbus standard architecture, positioned as a "lightweight computing core for industrial embedded systems". It is highly integrated with 68030 series CPUs, expandable memory, basic I/O interfaces, and VME bus control logic, enabling data processing and module collaboration without the need for additional core components. It is designed for scenarios such as industrial automation, testing and measurement that require "real-time and reliability" but do not have extreme computing power requirements. It is a low-cost and highly adaptable core control unit in VME bus systems.

1、 Core technical parameters and hardware architecture

1. Processor and computational performance

Core CPU: Equipped with Motorola MC68EC030 or MC68030 32-bit microprocessors (both have the same core architecture, MC68EC030 is a non floating point coprocessor version, and MC68030 supports external MC68881/MC68882 floating point coprocessors), with a typical clock frequency of 16MHz/25MHz (some versions support 33MHz), equipped with 32-bit address bus and 32-bit data bus, capable of efficiently processing multitasking real-time scheduling and medium complexity data operations (such as industrial control logic and test data statistics).

Collaborative processing extension: Reserved floating-point coprocessor interface, can be externally connected to MC68882 for high-precision computing scenarios (such as machine tool motion trajectory planning, test signal waveform analysis), improving floating-point computing performance by 5-10 times, meeting precision control requirements.

2. Memory configuration: flexible expansion, balancing cost and demand

Memory Type Basic Capacity Expansion Capability Core Role

RAM (Data Memory) 2 MB DRAM can be expanded up to 8 MB to run embedded operating systems, applications, and temporary data caches. It supports parity (some versions) to reduce the risk of data errors

ROM/Flash (program storage) 256 KB ROM (or 1 MB Flash) supports 4 MB Flash extended storage system firmware (Bootloader), solidified control programs (such as industrial equipment start stop logic), Flash version supports program flashing updates

NVRAM (non-volatile memory) 8 KB (with backup battery) up to 32 KB, power-off saves key configuration parameters (such as device address, control threshold) and real-time clock (RTC) data, providing accurate timestamps (error ≤ 1 second/day)

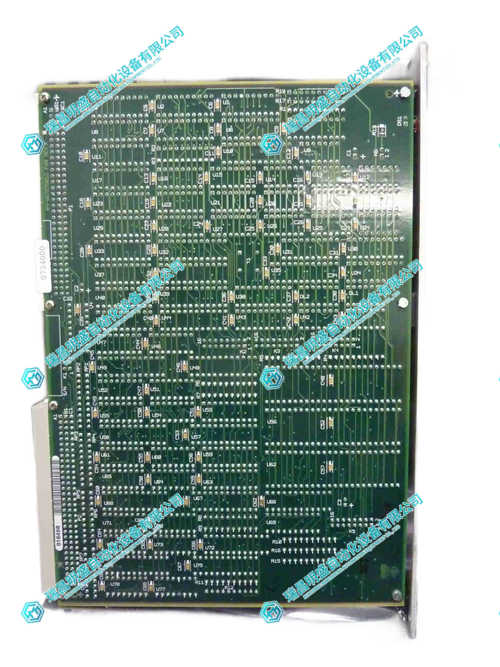

Motorola VME-340B 處理器 PCB 卡 產      品      展      示
