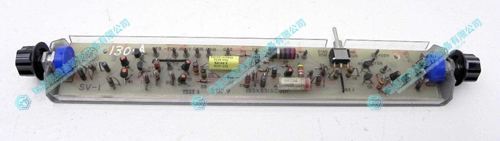

GE 193X531ACG01診斷板
1.產 品 資 料 介 紹：
中文資料：
產品名稱：診斷板
產品型號：193X531ACG01
制造商：General Electric (GE)
所屬系列：193X 系列工業控制模塊
產品簡介
193X531ACG01 是 GE 193X 控制系統中的一塊 診斷功能電路板，主要用于系統運行狀態監測、故障檢測與輔助維護。該模塊設計用于配合 GE 驅動系統，為技術人員提供信號分析、狀態顯示及維護支持，提升系統運行的可視化和可維護性。
核心功能
實時采集并顯示系統關鍵運行參數
提供診斷信號測試點和監控接口
支持系統運行狀態 LED 指示（如電源狀態、故障狀態）
協助識別控制系統中的潛在故障或信號異常
與主控制板或其他功能模塊協同工作，增強系統可靠性
技術參數（參考值）
| 參數項 | 描述 |
|---|---|
| 工作電壓 | +15V DC / +24V DC |
| 功能電路類型 | 邏輯判斷電路 + LED 顯示單元 |
| 顯示內容 | 狀態燈（Power, Run, Fault等）或信號指示 |
| 接口類型 | 插槽連接 + 測試點接口 |
| 典型響應時間 | < 5ms |
| 使用環境 | 工業環境，溫度范圍 0℃～70℃ |
| 安裝結構 | 插卡式，需插入 GE 系統主機或?qū)Ｓ玫装逯?/td> |
典型應用場景
GE 直流調速系統狀態監控
工業電機控制系統診斷面板
電氣控制柜輔助調試工具
用于現場測試與維護的信號診斷支持模塊
英文資料：
Product Name: Diagnostic Board
Product model: 193X531ACG01
manufacturer: General Electric (GE)
Series: 193X series industrial control module
Product Introduction
193X531ACG01 is a diagnostic circuit board in the GE 193X control system, mainly used for system operation status monitoring, fault detection, and auxiliary maintenance. This module is designed to complement the GE drive system, providing signal analysis, status display, and maintenance support for technicians, enhancing the visualization and maintainability of system operation.
Core functions
Real time collection and display of key operating parameters of the system
Provide diagnostic signal testing points and monitoring interfaces
Support system operation status LED indication (such as power status, fault status)
Assist in identifying potential faults or signal anomalies in the control system
Collaborate with the main control board or other functional modules to enhance system reliability
Technical parameters (reference values)
Parameter item description
Working voltage+15V DC/+24V DC
Functional circuit type logic judgment circuit+LED display unit
Display content status lights (Power, Run, Fault, etc.) or signal indicators
Interface type: slot connection+test point interface
Typical response time<5ms
Industrial environment, temperature range 0 ℃~70 ℃
Installation structure plug-in card, needs to be inserted into GE system host or dedicated motherboard
Typical application scenarios
GE DC speed regulation system status monitoring
Diagnostic panel for industrial motor control system
Electrical control cabinet auxiliary debugging tool
Signal diagnostic support module for on-site testing and maintenance

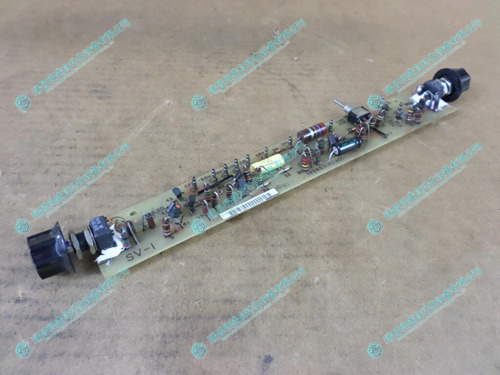

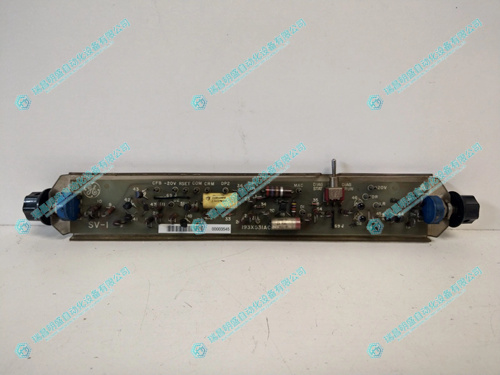

2.產 品 展 示
