GE   193X527ACG01接口板

1.產 品 資 料 介 紹：

中文資料：

產品名稱：接口板（Interface Board）

產品型號：193X527ACG01

制造商：General Electric (GE)

所屬系列：GE 193X 系列 工業控制系統模塊

產品描述

GE 193X527ACG01 是一款用于 工業自動化控制系統 中的接口板，主要用于將主控制系統與外部設備之間的信號輸入和輸出進行有效的連接和轉換。此接口板可以支持多種類型的輸入輸出信號，如模擬信號、數字信號等，廣泛應用于控制系統、傳感器、執行器和其它工業設備之間的信號交換。

主要功能特性

• 信號轉換與適配：提供不同電壓和信號格式之間的轉換，確?？刂葡到y(tǒng)與外部設備的兼容性

• 輸入輸出接口：提供多路模擬和數字信號輸入輸出，支持大多數常見工業信號類型（例如，5V、12V、24V等）

• 信號隔離：內置信號隔離和保護電路，確保信號傳輸穩定并避免外部干擾

• 抗干擾能力：電磁干擾和高頻噪聲的抑制，確保信號的可靠性

• 緊湊型設計：適合多種控制系統應用，特別適用于 GE 193X 系列平臺

技術規格參數

英文資料：

Product Name: Interface Board

Product model: 193X527ACG01

manufacturer: General Electric (GE)

Series: GE 193X Series Industrial Control System Module

product description

GE 193X527ACG01 is an interface board used in industrial automation control systems, mainly for effectively connecting and converting signal inputs and outputs between the main control system and external devices. This interface board can support various types of input and output signals, such as analog signals, digital signals, etc., and is widely used for signal exchange between control systems, sensors, actuators, and other industrial equipment.

Main functional features

Signal Conversion and Adaptation: Provides conversion between different voltages and signal formats to ensure compatibility between the control system and external devices

Input/output interface: Provides multiple analog and digital signal inputs and outputs, supporting most common industrial signal types (such as 5V, 12V, 24V, etc.)

Signal isolation: Built in signal isolation and protection circuits ensure stable signal transmission and avoid external interference

Anti interference capability: suppression of electromagnetic interference and high-frequency noise to ensure signal reliability

Compact design: suitable for various control system applications, especially for GE 193X series platforms

Technical specifications and parameters

Parameter Name Parameter Description

Interface type: Analog signal, digital signal input/output

Number of input channels: 8 analog inputs, 8 digital inputs (typical)

Number of output channels: 8 analog outputs, 8 digital outputs (typical)

Input voltage range 5V, 12V, 24V DC (compatible with multiple devices)

Output voltage range 5V, 12V, 24V DC (compatible with device requirements)

Signal isolation method with electrical isolation design to reduce noise and interference

Cooling method: natural air cooling (depending on the installation environment)

Installation method card insertion design, compatible with GE control system framework

Working temperature range: 0 ° C to 70 ° C

Protection functions include overcurrent, overvoltage, and short-circuit protection

PCB design with multi-layer design, including filtering and protection circuits

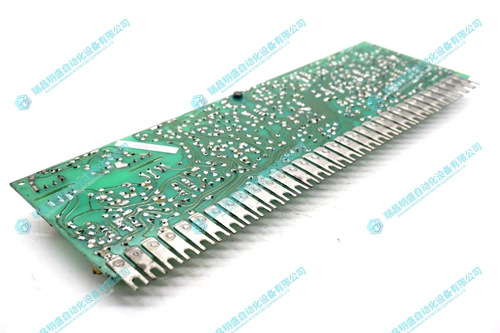

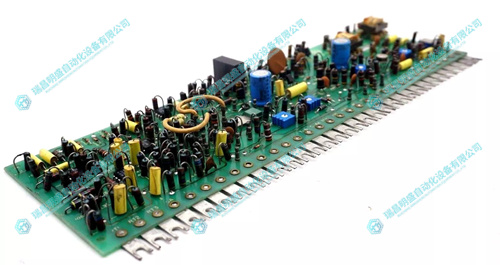

2.產      品      展      示
