ABB BDFC-01C 風扇控制板

1.產 品 資 料 介 紹：

中文資料：

BDFC-01C 風扇控制板 是一款工業級風扇控制模塊，常用于電力電子系統、變頻器、伺服驅動器或工業控制柜中，對冷卻風扇進行智能控制與保護。該控制板由多家工業自動化企業制造，屬于通用型/定制型電子輔助模塊。

一、產品概述

BDFC-01C 控制板主要用于自動檢測控制設備的溫度或負載情況，進而啟停冷卻風扇，延長風扇壽命、降低能耗，并防止控制柜內溫升過高造成系統失效。其控制方式可能基于繼電器、PWM 或電壓輸出，適配多種風扇供電方式（DC 或 AC）。

二、主要功能

1. 溫控啟停：根據熱敏電阻或熱敏器件（NTC/PTC）反饋自動控制風扇運行；

2. 多通道輸出：可控制多組風扇的啟停狀態，支持并聯風扇負載；

3. 軟啟動與延時保護：降低風扇啟動電流沖擊，支持延時啟動/關閉；

4. 故障檢測：如風扇失速、堵轉、電壓異常報警；

5. 通信支持（部分型號）：支持 TTL、485 或模擬量信號上報；

6. 多種控制模式：可選定時控制、溫度觸發控制、手動強制啟動。

三、技術規格（典型）

• 輸入電源：12VDC / 24VDC（可定制）

• 控制輸出：繼電器觸點、PWM 或 MOS 管驅動

• 控制通道數：2~4 路（視型號而定）

• 支持風扇類型：DC 無刷風扇（常見 12V、24V）

• 溫度傳感器：NTC 熱敏電阻接口（通常為 10KΩ）

• 工作溫度：-20°C ~ +70°C

• PCB 尺寸：可定制（常見為 80mm x 50mm）

• 安裝方式：螺絲孔固定 / DIN 導軌

四、典型應用領域

• 變頻器、電源模塊的散熱系統

• 電機驅動器（伺服、步進）輔助冷卻

• 工業控制柜內熱管理系統

• 通信基站或 UPS 內部冷卻系統

• 工業加熱/焊接設備

英文資料：

The BDFC-01C fan control board is an industrial grade fan control module commonly used in power electronic systems, frequency converters, servo drives, or industrial control cabinets to intelligently control and protect cooling fans. This control board is manufactured by multiple industrial automation companies and belongs to the general/customized electronic auxiliary module category.

1、 Product Overview

The BDFC-01C control board is mainly used to automatically detect the temperature or load situation of control equipment, thereby starting and stopping the cooling fan, extending the fan life, reducing energy consumption, and preventing system failure caused by excessive temperature rise in the control cabinet. Its control method may be based on relays, PWM, or voltage output, adapted to multiple fan power supply methods (DC or AC).

2、 Main functions

Temperature control start stop: automatically control the fan operation based on feedback from thermistor or thermistor device (NTC/PTC);

Multi channel output: can control the start and stop status of multiple sets of fans, supporting parallel fan loads;

Soft start and delay protection: reduces the impact of fan starting current, supports delayed start/stop;

Fault detection: such as fan stall, stalling, abnormal voltage alarm;

Communication support (some models): Supports TTL, 485, or analog signal reporting;

Multiple control modes: optional timed control, temperature triggered control, manual forced start.

3、 Technical specifications (typical)

Input power supply: 12VDC/24VDC (customizable)

Control output: relay contacts, PWM or MOS tube drive

Number of control channels: 2-4 channels (depending on the model)

Supported fan types: DC brushless fan (commonly 12V, 24V)

Temperature sensor: NTC thermistor interface (usually 10K Ω)

Working temperature: -20 ° C~+70 ° C

PCB size: customizable (commonly 80mm x 50mm)

Installation method: screw hole fixation/DIN rail

4、 Typical application areas

Cooling system for frequency converter and power module

Motor driver (servo, stepper) auxiliary cooling

Industrial control cabinet internal thermal management system

Communication base station or UPS internal cooling system

Industrial heating/welding equipment

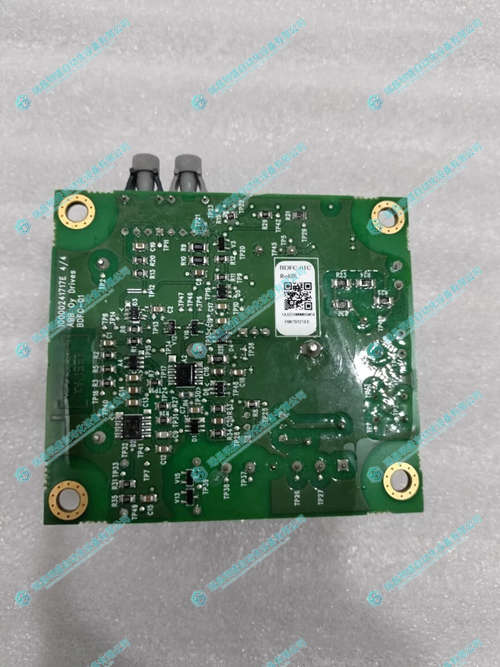

2.產      品      展      示
