Schneider LV431630斷路器
1.產 品 資 料 介 紹：
中文資料：
施耐德電氣（Schneider Electric）的 LV431630 是一款 Molded Case Circuit Breaker（MCCB，塑殼斷路器），隸屬于其 Compact NSX 系列，廣泛用于低壓配電系統中，用于保護線路免受過載、短路等電氣故障影響。
以下是 LV431630 的詳細技術參數和應用說明：
一、產品基本信息
產品型號：LV431630
系列：Compact NSX
斷路器類型：塑殼斷路器（MCCB）
制造商：Schneider Electric（施耐德電氣）
二、主要技術參數
| 參數類別 | 說明 |
|---|---|
| 額定電流 (In) | 630 A |
| 極數 | 3 極（3P） |
| 額定絕緣電壓 (Ui) | 800 V AC |
| 額定工作電壓 (Ue) | 690 V AC |
| 額定沖擊耐受電壓 (Uimp) | 8 kV |
| 額定短路分?jǐn)嗄芰?(Icu) | 50 kA @ 415V AC（視具體型號及電壓等級而定） |
| 安裝方式 | 固定式，面板安裝或插入式安裝（需選擇） |
| 殼架等級電流 (Frame Size) | 630 A（NSX630 殼架） |
| 觸點 | 熱磁式脫扣器或電子式脫扣器（如 Micrologic 2.3, 5.2E，需確認） |
| 操作方式 | 手柄操作（可選電動操作附件） |
提供短路保護、過載保護和可選接地故障保護
模塊化設計，支持安裝各種附件（如欠壓脫扣器、分勵脫扣器、輔助觸點、報警觸點等）
支持通信功能（需配合通信模塊，如 Modbus）
高可靠性，適用于工業、商業配電系統
符合 IEC 60947-2 標準
英文資料：
Schneider Electric's LV431630 is a Molded Case Circuit Breaker (MCCB) belonging to its Compact NSX series, widely used in low-voltage distribution systems to protect lines from electrical faults such as overload and short circuit.
The following are detailed technical parameters and application instructions of LV431630:
1、 Basic Product Information
Product model: LV431630
Series: Compact NSX
Circuit breaker type: Molded Case Circuit Breaker (MCCB)
Manufacturer: Schneider Electric
2、 Main technical parameters
Parameter category description
Rated current (In) 630 A
Number of poles 3 (3P)
Rated insulation voltage (Ui) 800 V AC
Rated working voltage (Ue) 690 V AC
Rated impulse withstand voltage (Uimp) 8 kV
Rated short-circuit breaking capacity (Icu) 50 kA @ 415V AC (depending on specific model and voltage level)
Installation method: fixed, panel installation, or plug-in installation (optional)
Frame Size 630 A (NSX630 frame)
Contact thermal magnetic release or electronic release (such as Micrologic 2.3, 5.2E, to be confirmed)
Operation method: Handle operation (optional electric operation accessories)
3、 Functional characteristics
Provide short-circuit protection, overload protection, and optional ground fault protection
Modular design, supporting the installation of various accessories such as undervoltage release, shunt release, auxiliary contacts, alarm contacts, etc
Support communication function (requires cooperation with communication module, such as Modbus)
High reliability, suitable for industrial and commercial power distribution systems
Compliant with IEC 60947-2 standard

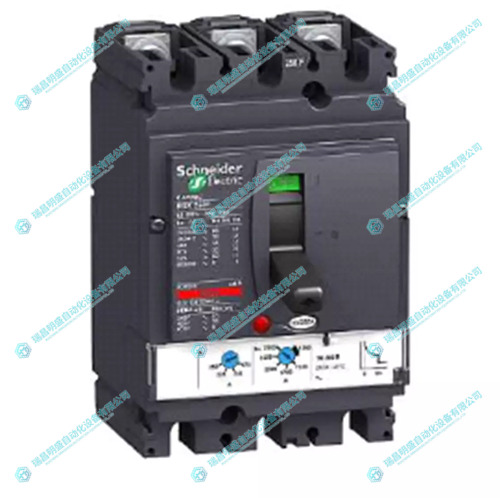

2.產 品 展 示
