Siemens 6GK5202-2BB00-2BA3 邏輯控制器
1.產 品 資 料 介 紹：
中文資料：
西門子 Siemens 6GK5202-2BB00-2BA3 邏輯控制器 是 SIMATIC S7-200 系列中常見的一款通訊處理模塊（CP），用于工業自動化系統中的數據通訊和控制任務。
一、產品概述
型號：6GK5202-2BB00-2BA3
產品類別：通訊處理器模塊（Communication Processor, CP）
適用系列：Siemens SIMATIC S7-200 PLC 系列
功能：為 S7-200 控制器提供工業以太網通訊能力，支持多種網絡協議，實現PLC與上位系統、其他PLC或遠程設備的數據交換。
二、主要功能與特點
| 功能 | 描述 |
|---|---|
| 工業以太網通訊 | 支持標準工業以太網通訊，連接控制系統與工廠網絡 |
| 協議支持 | 支持 TCP/IP、UDP、ISO-on-TCP、Modbus TCP 等協議 |
| 數據交換 | 支持通過以太網實現數據塊、位和字的讀寫，方便遠程監控與控制 |
| 多點通訊 | 支持多個通訊連接，提高系統靈活性 |
| 診斷功能 | 集成豐富的診斷信息，便于故障排查和維護 |
| 兼容性 | 與 S7-200 系列 PLC 完美兼容，簡化集成與配置 |
三、技術參數
| 參數 | 說明 |
|---|---|
| 接口類型 | 10/100 Mbps 以太網端口 |
| 電源電壓 | 24 V DC (通過 PLC 供電) |
| 通訊協議 | TCP/IP, UDP, ISO-on-TCP, Modbus TCP 等 |
| 通訊速率 | 10/100 Mbps 自動切換 |
| 工作溫度 | 0 ~ 60°C |
| 存儲容量 | 支持程序存儲和數據緩存 |
| 尺寸 | 與 S7-200 標準模塊兼容 |
四、應用領域
機械制造自動化控制
過程控制系統
工廠數據采集與監控（SCADA）
遠程設備監測與維護
與其他 PLC 或工業計算機系統的數據通訊
英文資料：
The Siemens 6GK5202-2BB00-2BA3 logic controller is a common communication processing module (CP) in the SIMATIC S7-200 series, used for data communication and control tasks in industrial automation systems.
1、 Product Overview
Model: 6GK5202-2BB00-2BA3
Product Category: Communication Processor Module (CP)
Applicable series: Siemens SIMATIC S7-200 PLC series
Function: Provide industrial Ethernet communication capability for S7-200 controller, support multiple network protocols, and achieve data exchange between PLC and upper system, other PLCs or remote devices.
2、 Main functions and features
Function Description
Industrial Ethernet communication supports standard industrial Ethernet communication, connecting control systems with factory networks
The protocol supports TCP/IP, UDP, ISO on TCP, Modbus TCP, and other protocols
Data exchange supports reading and writing of data blocks, bits, and words through Ethernet, facilitating remote monitoring and control
Multi point communication supports multiple communication connections, improving system flexibility
The diagnostic function integrates rich diagnostic information for easy troubleshooting and maintenance
Compatibility and perfect compatibility with S7-200 series PLC, simplifying integration and configuration
3、 Technical parameters
Parameter Description
Interface type: 10/100 Mbps Ethernet port
Power supply voltage 24 V DC (powered by PLC)
Communication protocols such as TCP/IP, UDP, ISO on TCP, Modbus TCP, etc
Communication speed 10/100 Mbps automatic switching
Working temperature 0~60 ° C
Storage capacity supports program storage and data caching
Sizes compatible with S7-200 standard module
4、 Application Fields
Mechanical Manufacturing Automation Control
process control system
Factory Data Acquisition and Monitoring (SCADA)
Remote device monitoring and maintenance
Data communication with other PLCs or industrial computer systems

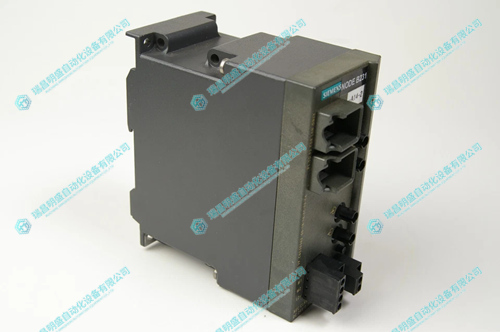

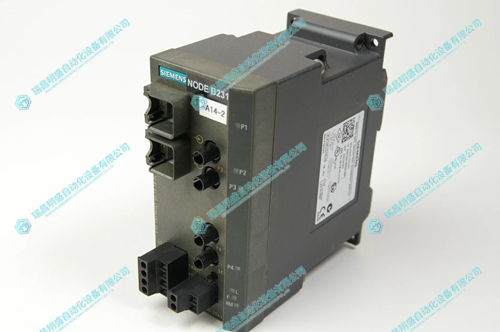

2.產 品 展 示
