Siemens 6SN1145-1BA01-0BA2 電源模塊
1.產 品 資 料 介 紹：
中文資料：
Siemens 6SN1145-1BA01-0BA2 是 SIMODRIVE 611 系列的一款 電源模塊（Power Module），專用于 數控機床（CNC）、伺服驅動系統、機器人 及其他工業自動化應用場景，為驅動系統提供穩定的直流母線電壓。
主要技術參數
- 系列：SIMODRIVE 611
- 輸入電壓：三相 380-480V AC（50/60Hz）
- 輸出電壓：直流 600V DC（母線電壓）
- 額定功率：適用于 中高功率伺服驅動系統
- 冷卻方式：風冷，增強散熱能力，適用于高負載工況
- 保護功能：
- 過壓、過流保護
- 短路保護
- 過溫保護（確保模塊長期穩定運行）
- 通訊接口：兼容 PROFIBUS、SERCOS（需搭配合適的控制模塊）
產品特點
高效穩定的電源管理
- 供電能力強，支持多個驅動單元
- 具備能量回饋能力，提高整體能效
模塊化設計，易于集成
- 兼容 SIMODRIVE 611 伺服驅動系統
- 可擴展多軸控制系統
快速響應，適用于高精度伺服控制
- 適合 CNC 機床、機器人、高速傳輸設備 等
耐用性強，適應工業環境
- 良好的抗震動、抗電磁干擾能力
- 適用于惡劣工況（如高溫、高粉塵環境）
易維護，運行可靠
- 具備 熱插拔 設計，支持在線更換
- 維護成本低，長壽命設計
英文資料：
Siemens 6SN1145-1BA01-0BA2 is a power module from the SIMODRIVE 611 series, specifically designed for CNC machine tools, servo drive systems, robots, and other industrial automation applications, providing stable DC bus voltage for drive systems.
Main technical parameters
Series: SIMODRIVE 611
Input voltage: three-phase 380-480V AC (50/60Hz)
Output voltage: DC 600V DC (bus voltage)
Rated power: suitable for medium to high power servo drive systems
Cooling method: air cooling, enhances heat dissipation capacity, suitable for high load conditions
Protection function:
Overvoltage and overcurrent protection
Short circuit protection
Over temperature protection (ensuring long-term stable operation of the module)
Communication interface: compatible with PROFIBUS and SERCOS (requires appropriate control module)
Product Features
Efficient and stable power management
Strong power supply capability, supporting multiple driving units
Capable of providing energy feedback and improving overall energy efficiency
Modular design, easy to integrate
Compatible with SIMODRIVE 611 servo drive system
Scalable multi axis control system
Fast response, suitable for high-precision servo control
Suitable for CNC machine tools, robots, high-speed transmission equipment, etc
Strong durability, suitable for industrial environments
Good anti vibration and anti electromagnetic interference ability
Suitable for harsh working conditions (such as high temperature, high dust environment)
Easy to maintain and reliable to operate
Equipped with hot swappable design, supporting online replacement
Low maintenance cost, long-life design

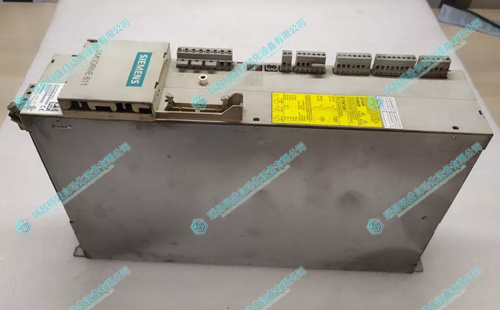

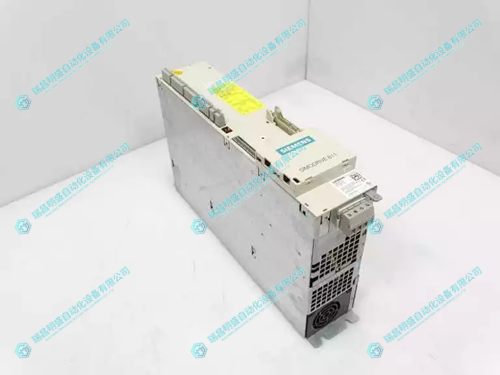

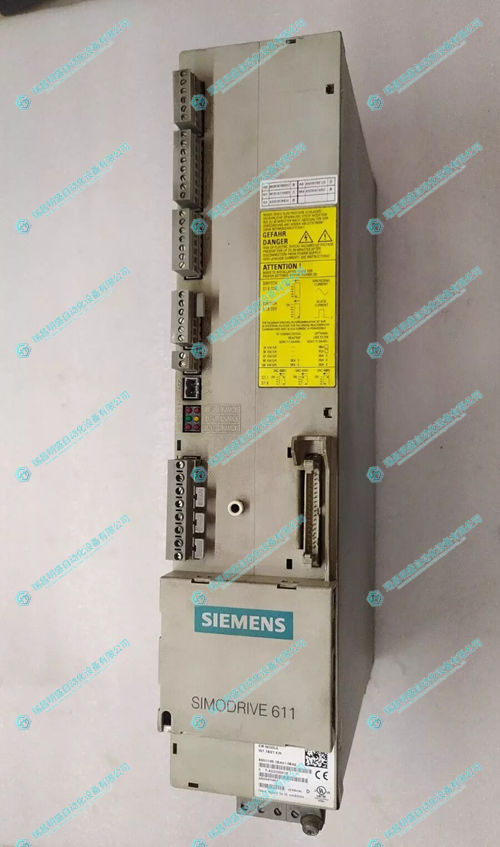

2.產 品 展 示
