Siemens 6SN1123-1AA00-0DA1 電源模塊
1.產 品 資 料 介 紹：
中文資料：
Siemens 6SN1123-1AA00-0DA1 是 SIMODRIVE 611 系列中的 電源模塊（Power Module），用于工業自動化系統中的驅動供電。該模塊可為 數控機床（CNC）、伺服驅動系統、機器人 和其他工業應用提供穩定的電源。
主要技術參數
- 系列：SIMODRIVE 611
- 額定輸入電壓：三相 380-480V AC
- 輸出電壓：直流 600V DC（母線電壓）
- 額定電流：適用于 中等功率范圍的驅動系統
- 功率范圍：根據負載情況，適用于 伺服驅動、主軸驅動 等
- 冷卻方式：風冷，確保長時間運行的穩定性
- 保護功能：過壓、過流、短路保護，提高系統可靠性
- 通訊接口：支持 PROFIBUS / SERCOS（需匹配控制單元）
產品特點
- 高效能量管理：提供 直流母線 供電，可回饋能量，提升整體能效
- 模塊化設計：可與 SIMODRIVE 611 驅動系統 兼容，支持?jǐn)U展
- 動態響應快：適用于高精度伺服控制
- 適應惡劣環境：具備良好的耐溫、抗震和抗電磁干擾能力
- 易于維護：支持 熱插拔、更換簡便
應用領域
Siemens 6SN1123-1AA00-0DA1 廣泛應用于 高性能自動化控制系統，主要涉及：
數控機床（CNC）
- 車床、銑床、加工中心的伺服驅動
- 主軸電機供電
機器人與自動化設備
- 機器人驅動系統
- 生產線自動化
材料加工
- 軋鋼機、印刷機、造紙機械等高負載設備
物流與搬運
- 自動化倉儲系統（AGV 機器人）
- 輸送帶、堆垛機驅動控制
能源回饋與測試設備
- 機電測試平臺
- 工業電機試驗臺
英文資料：
Siemens 6SN1123-1AA00-0DA1 is a power module in the SIMODRIVE 611 series, used for driving power supply in industrial automation systems. This module can provide stable power supply for CNC machines, servo drive systems, robots, and other industrial applications.
Main technical parameters
Series: SIMODRIVE 611
Rated input voltage: three-phase 380-480V AC
Output voltage: DC 600V DC (bus voltage)
Rated current: suitable for drive systems in the medium power range
Power range: Suitable for servo drive, spindle drive, etc. according to load conditions
Cooling method: air-cooled to ensure stability during long-term operation
Protection function: overvoltage, overcurrent, short circuit protection to improve system reliability
Communication interface: Supports PROFIBUS/SERCOS (requires matching control unit)
Product Features
Efficient energy management: providing DC bus power supply, feedback energy, and improving overall energy efficiency
Modular design: compatible with SIMODRIVE 611 driver system and supports expansion
Fast dynamic response: suitable for high-precision servo control
Adapting to harsh environments: possessing excellent temperature resistance, earthquake resistance, and electromagnetic interference resistance capabilities
Easy to maintain: supports hot plugging and easy replacement
application area
Siemens 6SN1123-1AA00-0DA1 is widely used in high-performance automation control systems, mainly involving:
Numerical Control Machine Tool (CNC)
Servo drive for lathes, milling machines, and machining centers
Main spindle motor power supply
Robots and Automation Equipment
Robot Drive System
Production line automation
material processing
High load equipment such as rolling mills, printing machines, and paper making machinery
Logistics and Handling
Automated Warehouse System (AGV Robot)
Drive control of conveyor belt and stacker crane
Energy feedback and testing equipment
Mechanical and Electrical Testing Platform
Industrial motor test bench

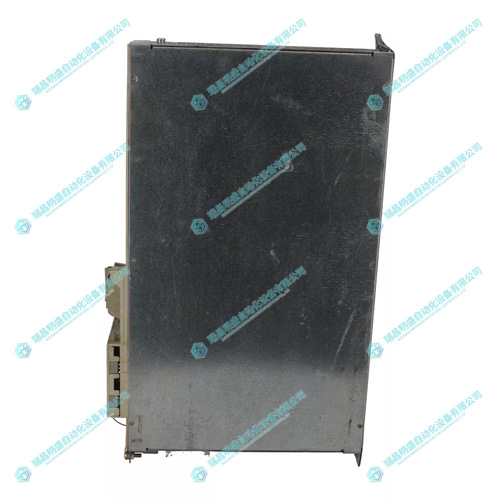

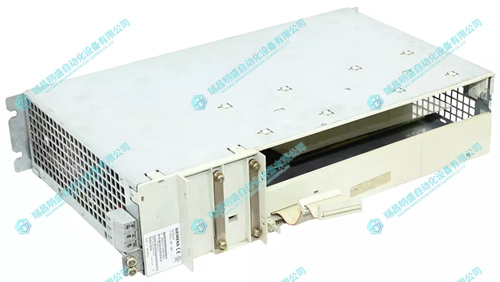

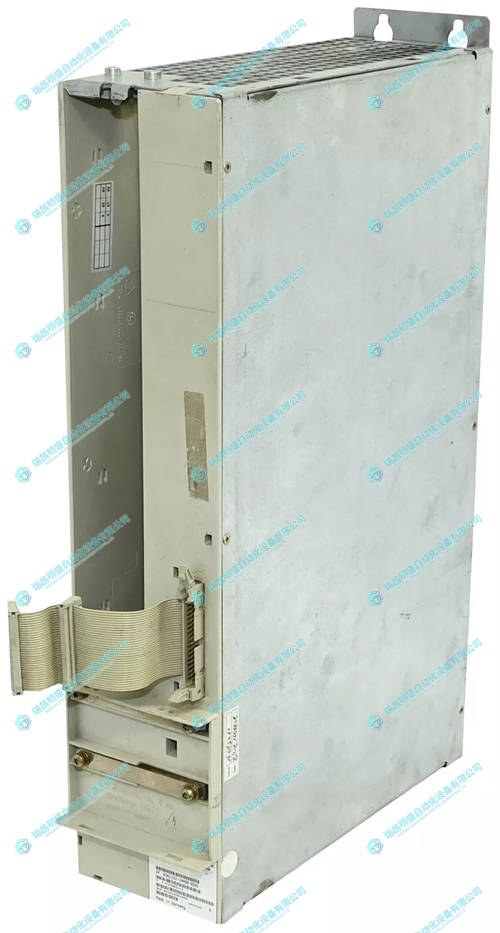

2.產 品 展 示
