ULTRA SLIMPAK G448-0002隔離放大器 是一款隔離放大器，設計用于工業控制系統中的信號調理和隔離。
ULTRA SLIMPAK G448-0002隔離放大器 詳情介紹：
ULTRA SLIMPAK G448-0002 是一款隔離放大器，設計用于工業控制系統中的信號調理和隔離。它的主要作用是放大并隔離來自傳感器或其他信號源的模擬信號，以便安全地傳輸?shù)娇刂葡到y(tǒng)或數據采集系統。以下是該隔離放大器的主要特性和技術規格：
主要特點：
- 信號隔離：提供輸入、輸出和電源之間的三路隔離，通常隔離電壓高達1500伏特，確保信號在傳輸過程中免受電氣噪聲和干擾的影響，保護下游設備。
- 信號放大：能夠?qū)⒌碗娖降哪M信號放大到適合進一步處理的電平，支持各種信號類型，如電流（如4-20mA）和電壓信號。
- 多功能輸入：支持多種輸入信號格式，用戶可以根據具體應用調整輸入?yún)?shù)，使其適應不同類型的傳感器或信號源。
- 精度高：設計精度高，能夠在工業環境中實現穩定、精確的信號放大和隔離。
- 緊湊設計：超薄外形設計，節省安裝空間，非常適合空間有限的控制柜或配電箱。
- DIN導軌安裝：支持標準DIN導軌安裝，方便集成到工業控制系統中。
- 寬溫度范圍：通常適應寬溫度范圍，適合各種工業環境，確保長期可靠性。
應用領域：
- 工業自動化與過程控制
- 數據采集系統
- 工廠自動化
- 電力監控和管理系統
- 儀表和控制系統
技術規格概要：
- 型號：G448-0002
- 隔離電壓：1500V（三重隔離：輸入/輸出/電源）
- 輸入信號類型：支持電流和電壓輸入（如4-20mA、0-10V等）
- 輸出信號類型：與輸入信號類型相匹配，放大并輸出隔離后的信號
- 工作溫度范圍：通常在-40°C到+85°C之間
- 精度：高精度設計，典型誤差在0.1%或更低
- 安裝方式：DIN導軌安裝
- 電源：通常為24V DC供電

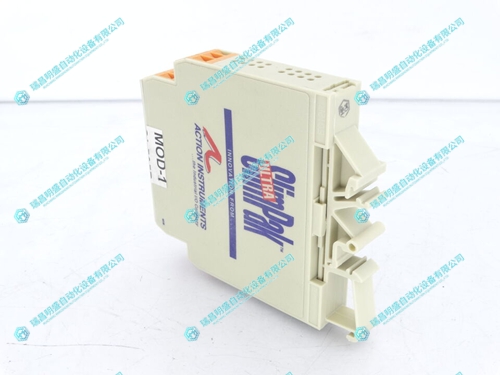

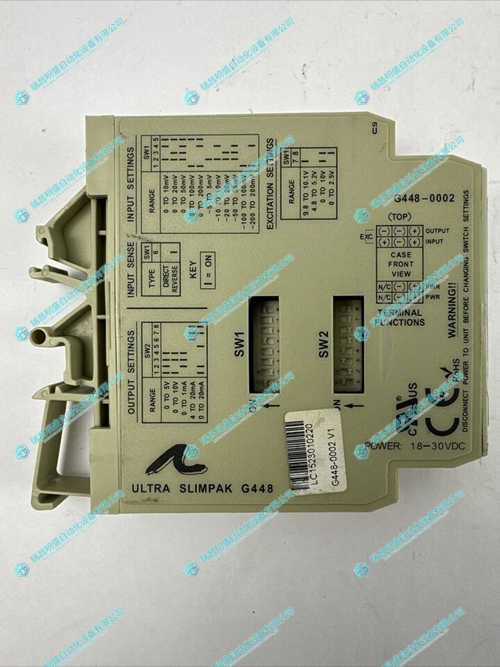

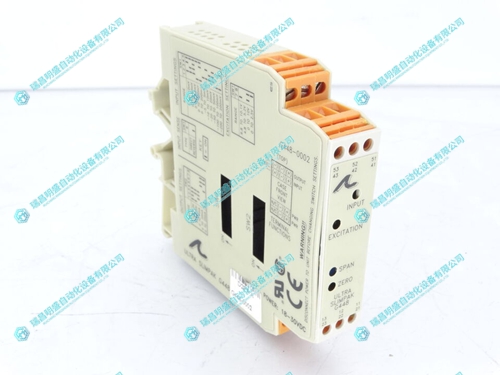

ULTRA SLIMPAK G448-0002隔離放大器 實物圖片：
english introduction:
ULTRA SLIMPAK G448-0002 is an isolated amplifier designed for signal conditioning and isolation in industrial control systems. Its main function is to amplify and isolate analog signals from sensors or other signal sources for safe transmission to control systems or data acquisition systems. The following are the main characteristics and technical specifications of the isolation amplifier:
Main features:
Signal isolation: Provides three-way isolation between input, output, and power supply, typically with an isolation voltage of up to 1500 volts, ensuring that signals are protected from electrical noise and interference during transmission and protecting downstream equipment.
Signal amplification: capable of amplifying low-level analog signals to levels suitable for further processing, supporting various signal types such as current (such as 4-20mA) and voltage signals.
Multi functional input: Supports multiple input signal formats, and users can adjust input parameters according to specific applications to adapt to different types of sensors or signal sources.
High precision: The design has high precision and can achieve stable and accurate signal amplification and isolation in industrial environments.
Compact design: With an ultra-thin exterior design, it saves installation space and is very suitable for control cabinets or distribution boxes with limited space.
DIN rail installation: Supports standard DIN rail installation, making it easy to integrate into industrial control systems.
Wide temperature range: usually suitable for a wide temperature range, suitable for various industrial environments, ensuring long-term reliability.
Application areas:
Industrial Automation and Process Control
data acquisition system
Factory automation
Power monitoring and management system
Instrumentation and control system
Technical specification summary:
Model: G448-0002
Isolation voltage: 1500V (triple isolation: input/output/power supply)
Input signal type: Supports current and voltage input (such as 4-20mA, 0-10V, etc.)
Output signal type: Match the input signal type, amplify and output the isolated signal
Working temperature range: typically between -40 ° C and+85 ° C
Precision: High precision design, typical error of 0.1% or lower
Installation method: DIN rail installation
Power supply: Typically powered by 24V DC
