Radisys 61-0950-20軸控制卡 是一款軸控制卡，用于精確控制和管理工業系統中的伺服電機或步進電機。

 Radisys 61-0950-20軸控制卡 詳情介紹：

Radisys 61-0950-20 是一款軸控制卡，用于精確控制和管理工業系統中的伺服電機或步進電機。以下是關于該軸控制卡的詳細信息：

主要功能和特點

1. 軸控制功能:

• 多軸控制: 支持多個軸的同步控制，適用于需要精確位置和速度控制的應用。
• 伺服控制: 支持伺服電機的控制，包括位置、速度和轉矩控制功能。
• 步進電機控制: 兼容步進電機，提供精準的步進控制，適用于需要精確定位的應用。

2. 輸入輸出接口:

• 數字輸入輸出: 提供多個數字輸入和輸出接口，用于連接外部開關、傳感器和執行器。
• 模擬輸入輸出: 一些型號可能提供模擬輸入輸出接口，支持與模擬信號設備的集成。

3. 通訊接口:

• 工業通訊協議: 支持常見的工業通訊協議，如 CANopen、EtherCAT、Modbus 等，用于與其他控制器和設備的通訊。
• 高速接口: 提供高速通訊接口，確保實時數據傳輸和控制響應。

4. 運動控制算法:

• 運動規劃: 內置復雜的運動規劃算法，支持直線、圓弧、插補等運動軌跡的生成和執行。
• 動態補償: 支持動態補償功能，如速度、加速度和負載變化的實時補償。

5. 配置和編程:

• 編程工具: 提供編程工具和軟件，支持用戶自定義運動控制程序和參數設置。
• 圖形化界面: 一些型號可能配備圖形化配置界面，簡化系統設置和調試過程。

6. 性能和穩定性:

• 高精度: 提供高精度的軸控制，確保系統的準確性和穩定性。
• 實時響應: 具備實時響應能力，適用于高動態和高速控制場景。

7. 保護功能:

• 過載保護: 具備過載保護功能，防止系統在異常情況下?lián)p壞。
• 過溫保護: 提供過溫保護功能，確保設備在高溫環境下安全運行。

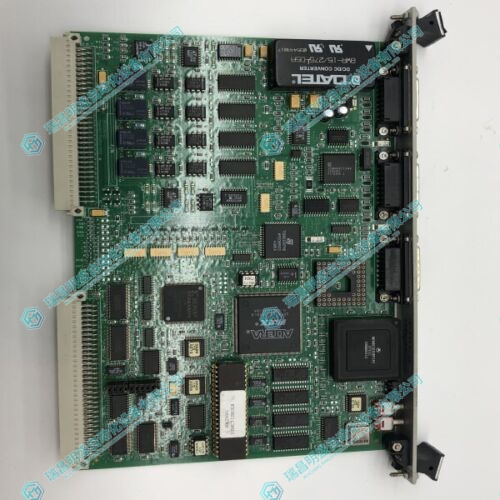

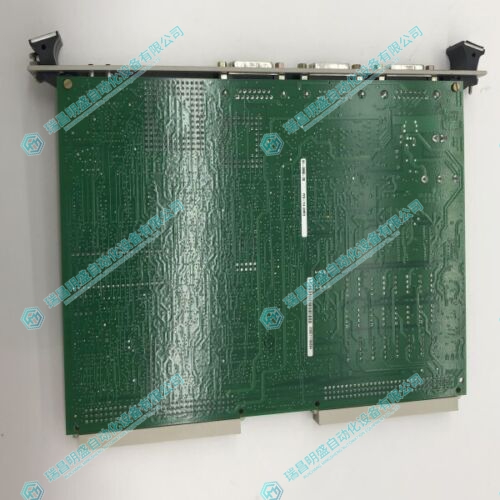

RadiSys 97-9029-02工業計算機主板  實物圖片：

english introduction:

Radisys 61-0950-20 is an axis control card used for precise control and management of servo motors or stepper motors in industrial systems. The following is detailed information about the axis control card:

Main functions and features

Axis control function:

Multi axis control: supports synchronous control of multiple axes, suitable for applications that require precise position and speed control.

Servo control: supports the control of servo motors, including position, speed, and torque control functions.

Stepper motor control: compatible with stepper motors, providing precise step control, suitable for applications that require precise positioning.

Input/output interface:

Digital Input/Output: Provides multiple digital input and output interfaces for connecting external switches, sensors, and actuators.

Analog Input/Output: Some models may provide analog input/output interfaces that support integration with analog signal devices.

Communication interface:

Industrial Communication Protocol: Supports common industrial communication protocols such as CANopen, EtherCAT, Modbus, etc., for communication with other controllers and devices.

High speed interface: Provides a high-speed communication interface to ensure real-time data transmission and control response.

Motion control algorithm:

Motion planning: Built in complex motion planning algorithms that support the generation and execution of motion trajectories such as lines, arcs, and interpolation.

Dynamic compensation: Supports dynamic compensation functions, such as real-time compensation for speed, acceleration, and load changes.

Configuration and programming:

Programming tools: Provide programming tools and software that support users to customize motion control programs and parameter settings.

Graphical interface: Some models may be equipped with a graphical configuration interface to simplify the system setup and debugging process.

Performance and stability:

High precision: Provides high-precision axis control to ensure the accuracy and stability of the system.

Real time response: With real-time response capability, suitable for high dynamic and high-speed control scenarios.

Protection function:

Overload protection: Equipped with overload protection function to prevent system damage in abnormal situations.

Over temperature protection: Provides over temperature protection function to ensure safe operation of equipment in high temperature environments.
