RADISYS 61-0237-05編碼器板 是一款用于工業和嵌入式應用中的編碼器接口板。

RADISYS 61-0237-05編碼器板 詳情介紹：

Radisys 61-0237-05 編碼器板 是一款用于工業和嵌入式應用中的編碼器接口板。以下是關于該編碼器板的詳細信息：

主要功能和特點

1. 編碼器接口:

• 設計用于連接各種類型的編碼器（如增量編碼器或絕對編碼器），將編碼器信號轉換為數字?jǐn)?shù)據供系統處理。
• 支持多種編碼器信號格式，如 A/B 相位信號、Z 軸信號等。

2. 信號處理:

• 內置信號處理功能，能夠高效處理編碼器輸入信號，提供高精度的運動數據和位置反饋。
• 支持信號濾波和放大，減少噪聲干擾，提高信號質量和可靠性。

3. 接口和連接:

• 提供多種接口選項，如標準的連接器和接線端子，方便與編碼器和其他系統組件連接。
• 兼容各種工業標準和協議，支持與不同類型的編碼器和控制系統配合使用。

4. 數據采集和輸出:

• 實現實時的數據采集，能夠精確測量和記錄編碼器的位置信息和運動狀態。
• 支持多通道輸入，能夠同時處理多個編碼器信號，適用于多軸系統。

5. 兼容性:

• 設計用于與 Radisys 的其他模塊和系統兼容，能夠集成到現有的工業和嵌入式計算平臺中。
• 支持與多種控制器和處理器板的配合使用，提供靈活的系統配置選項。

6. 穩定性和可靠性:

• 設計用于工業環境，具備高可靠性和耐用性，能夠在嚴酷的工作條件下穩定運行。
• 具備防護功能，如過電流保護和短路保護，確保系統的安全性。

7. 管理和監控:

• 提供狀態監控和故障診斷功能，能夠?qū)崟r(shí)監測編碼器信號的狀態，并提供故障報警和診斷信息。
• 支持遠程管理和配置，方便系統維護和調試。

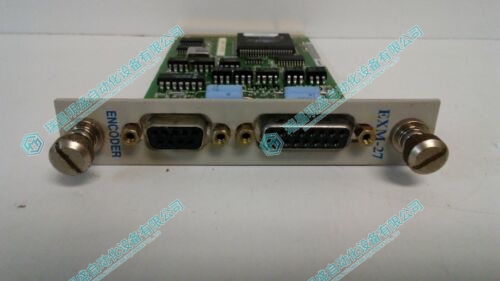

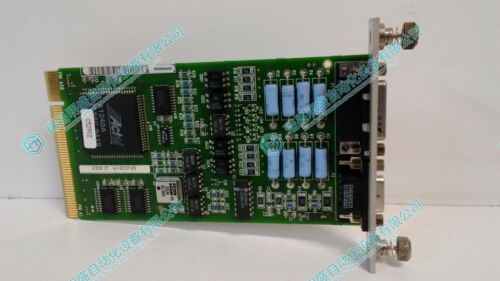

RADISYS 61-0237-05編碼器板  實物圖片：

english introduction:

The Radisys 61-0237-05 encoder board is an encoder interface board used in industrial and embedded applications. The following is detailed information about the encoder board:

Main functions and features

Encoder interface:

Designed to connect various types of encoders (such as incremental encoders or absolute encoders), converting encoder signals into digital data for system processing.

Supports multiple encoder signal formats, such as A/B phase signals, Z-axis signals, etc.

Signal processing:

Built in signal processing function, capable of efficiently processing encoder input signals, providing high-precision motion data and position feedback.

Support signal filtering and amplification, reduce noise interference, improve signal quality and reliability.

Interface and Connection:

Provide multiple interface options, such as standard connectors and wiring terminals, for easy connection with encoders and other system components.

Compatible with various industrial standards and protocols, supporting use with different types of encoders and control systems.

Data collection and output:

Real time data collection is achieved, which can accurately measure and record the position information and motion status of the encoder.

Supports multi-channel input, capable of processing multiple encoder signals simultaneously, suitable for multi axis systems.

compatibility:

Designed to be compatible with other modules and systems of Radisys, capable of integrating into existing industrial and embedded computing platforms.

Supports compatibility with multiple controllers and processor boards, providing flexible system configuration options.

Stability and reliability:

Designed for industrial environments, it has high reliability and durability, and can operate stably under harsh working conditions.

Equipped with protective functions such as overcurrent protection and short circuit protection, ensuring the safety of the system.

Management and monitoring:

Provide status monitoring and fault diagnosis functions, which can monitor the status of encoder signals in real time and provide fault alarm and diagnostic information.

Support remote management and configuration, facilitating system maintenance and debugging.
