GIDINGS&LEWIS  502-03907-03 I/O驅動模塊

1.產 品 資 料 介 紹：

GIDINGS&LEWIS 502-03907-03 I/O 驅動模塊

產品概述

產品特點

高可靠性：適配復雜工業環境

• 環境適應性強：具備出色的抗振動能力，可耐受機床、生產線運行時的高頻機械振動；寬溫工作范圍覆蓋 - 10℃~60℃，能在高溫車間或低溫倉儲環境中穩定運行；內置電磁屏蔽層，有效抵御變頻器、電機等設備產生的電磁干擾，避免信號傳輸失真；
• 多重安全保護：內置短路保護、過流保護機制，當輸出端發生短路或電流過載時，可快速切斷回路，防止模塊及外部負載（如電磁閥、繼電器）損壞；同時具備實時狀態檢測功能，可監控模塊供電、信號傳輸狀態，異常時及時反饋，降低系統故障風險。

輸入輸出靈活：滿足多樣化控制需求

• 多類型信號支持：可同時處理多通道數字量（如開關信號、狀態信號）和模擬量（如傳感器采集的連續電壓 / 電流信號）輸入輸出，無需額外轉換模塊，適配不同類型的外部設備；
• 直接驅動能力：無需中間轉接單元，即可直接輸出驅動信號控制伺服驅動器、繼電器、電磁閥、小型電機等負載，簡化系統接線，減少故障節點，同時降低系統集成成本。

英文資料：

GIDINGS&LEWIS 502-03907-03 I/O driver module

Product Overview

The 502-03907-03 I/O driver module is a key interface unit in the Giddings&Lewis control system that connects the "system core" and "external devices". Its core function is to achieve efficient bidirectional interaction of input/output signals. On the one hand, it receives raw signals from sensors (such as position sensors, temperature sensors), switches (such as emergency stop switches, travel switches), and control systems, and converts them into system recognizable standard signals through internal processing; On the other hand, the command signals of the control system are converted into drive signals and output to external loads such as actuators (such as cylinders, motors), relays, solenoid valves, etc., ultimately achieving equipment action control.

This module is widely applicable to CNC machine tools, automated production lines, and industrial robot systems. It is the core component that ensures stable signal transmission between the system and external devices, and precise execution of control instructions. It directly affects the smoothness and reliability of the entire industrial control process.

Product Features

High reliability: adapted to complex industrial environments

The module adopts industrial grade hardware design standards, and is optimized for harsh conditions in industrial sites from structure to components:

Strong environmental adaptability: It has excellent anti vibration ability and can withstand high-frequency mechanical vibrations during the operation of machine tools and production lines; The wide temperature working range covers -10 ℃~60 ℃, and can operate stably in high-temperature workshops or low-temperature storage environments; Built in electromagnetic shielding layer effectively resists electromagnetic interference generated by devices such as frequency converters and motors, avoiding signal transmission distortion;

Multiple safety protections: Built in short-circuit protection and overcurrent protection mechanisms. When a short circuit or current overload occurs at the output terminal, the circuit can be quickly cut off to prevent damage to the module and external loads (such as solenoid valves and relays); Simultaneously equipped with real-time status detection function, it can monitor the power supply and signal transmission status of the module, provide timely feedback in case of abnormalities, and reduce the risk of system failure.

Flexible input and output: meeting diverse control requirements

The module has high flexibility in signal processing and control capabilities:

Multi type signal support: It can simultaneously process multi-channel digital signals (such as switch signals, status signals) and analog signals (such as continuous voltage/current signals collected by sensors) input and output, without the need for additional conversion modules, and adapt to different types of external devices;

Direct drive capability: Without the need for intermediate transfer units, it can directly output drive signals to control loads such as servo drives, relays, solenoid valves, and small motors, simplifying system wiring, reducing fault nodes, and lowering system integration costs.

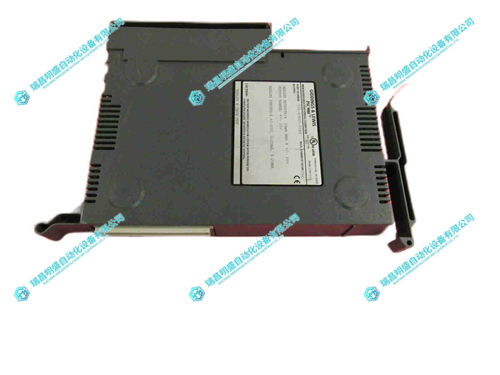

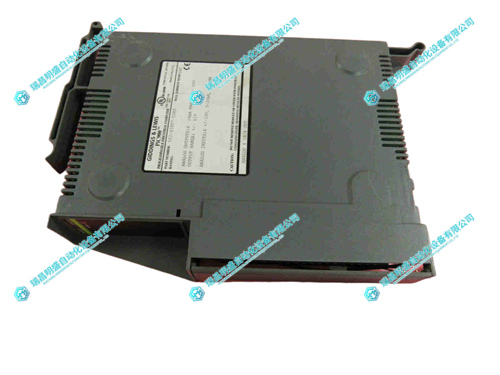

2.產      品      展      示
