GE 193X643ABG110電源模塊
1.產 品 資 料 介 紹：
中文資料：
GE 193X643ABG110 是通用電氣（General Electric）193X 系列控制系統中的一款高可靠性電源模塊（Power Supply Module），主要為控制系統中的多個電路板提供穩定的直流供電。該模塊廣泛應用于工業自動化系統、發電控制系統及大型機電設備中。
基本參數
型號：193X643ABG110
名稱：電源模塊 / Power Supply Module
制造商：General Electric (GE)
系列歸屬：GE 193X 系列控制系統模塊
主要功能：為系統各控制模塊提供多路穩定 DC 電源
典型輸出電壓：+5V、±15V、24V DC（視配置）
輸入電壓范圍：85~264V AC 或 110V/220V AC（具體以銘牌為準）
頻率范圍：47~63Hz
最大輸出功率：根據負載約為 50~150W
工作溫度范圍：-20°C ～ +70°C
安裝方式：插槽式（標準193X卡件結構）
功能特點
多路輸出：模塊支持多個輸出通道，分別供電給控制板、信號板、繼電器板等。
穩壓性能優異：具備電壓穩壓與負載調整功能，適應不同工況。
短路/過流/過壓保護：輸出端具備多重保護機制，防止損壞系統其他模塊。
電磁干擾抑制：內置 EMI 濾波器，降低對周邊設備干擾。
自診斷指示：帶有LED狀態指示燈，便于現場維護。
模塊化結構：支持熱插拔更換，方便檢修與升級。
應用領域
GE Mark 系列控制系統（如 Mark II / IV）
火力發電廠 / 核電站控制中心
大型工業電機控制系統
冶金、石化、制藥等自動化控制平臺
過程控制 DCS 系統的供電單元
英文資料：
GE 193X643ABG110 is a high reliability power supply module in the General Electric 193X series control system, mainly providing stable DC power supply for multiple circuit boards in the control system. This module is widely used in industrial automation systems, power generation control systems, and large-scale electromechanical equipment.
Basic parameters
Model: 193X643ABG110
Name: Power Supply Module
Manufacturer: General Electric (GE)
Series affiliation: GE 193X series control system module
Main function: Provide multiple stable DC power sources for various control modules in the system
Typical output voltage:+5V, ± 15V, 24V DC (depending on configuration)
Input voltage range: 85-264V AC or 110V/220V AC (please refer to the nameplate for details)
Frequency range: 47~63Hz
Maximum output power: approximately 50~150W depending on the load
Working temperature range: -20 ° C to+70 ° C
Installation method: slot type (standard 193X card structure)
Functional Features
Multi channel output: The module supports multiple output channels, which supply power to the control board, signal board, relay board, etc.
Excellent voltage stabilization performance: equipped with voltage stabilization and load adjustment functions, suitable for different working conditions.
Short circuit/overcurrent/overvoltage protection: The output terminal has multiple protection mechanisms to prevent damage to other modules of the system.
Electromagnetic interference suppression: Built in EMI filter to reduce interference with surrounding devices.
Self diagnostic indicator: equipped with LED status indicator light for easy on-site maintenance.
Modular structure: supports hot swappable replacement, facilitating maintenance and upgrades.
application area
GE Mark series control systems (such as Mark II/IV)
Thermal power plant/nuclear power plant control center
Large industrial motor control system
Automation control platforms for metallurgy, petrochemicals, pharmaceuticals, and other industries
Power supply unit of process control DCS system

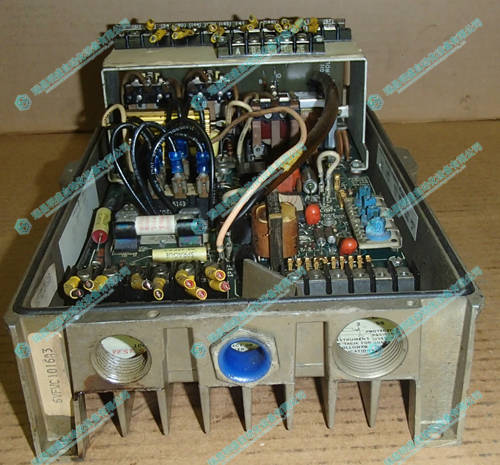

2.產 品 展 示
